Deutsch | SKU:
DT06-08SA-C015

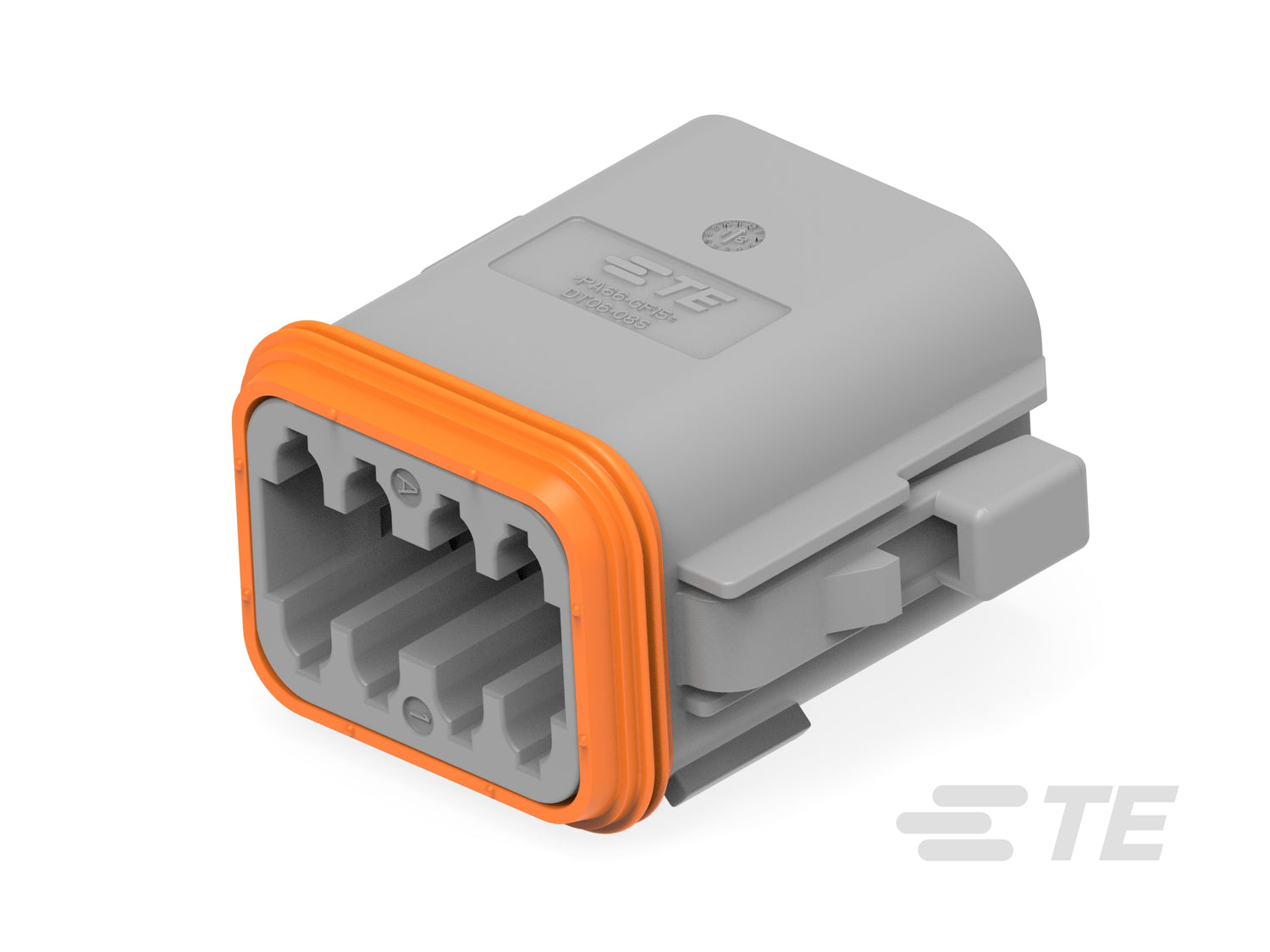

DT06-08SA-C015 Deutsch DT 8-Way Plug Housing – Key A, Custom Modification
DT06-08SA-C015 is a DEUTSCH DT 8-way plug housing for socket contacts, configured with Key A and custom modification.
The sealed housing suits vehicle and equipment harnesses, while Key A helps distinguish the required mating configuration and reduce connector selection errors during assembly or service.
Use DT06-08SA-C015 where the required configuration is a DEUTSCH DT 8-position socket plug with Key A and custom modification.
- Series: DEUTSCH DT
- Connector: Plug
- Positions: 8
- Contact type: Socket
- Key: A
- Features: Custom Modification
- Modification: C015
Quantity price breaks
1+
$4.61/each
50+26% off
$3.41/each$4.61
100+30% off
$3.24/each$4.61
DT06-08SA-C015 Deutsch DT 8-Way Plug Housing – Key A, Custom Modifi...
Regular price
$4.61
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector seal code | E Seal |
| Number of positions | 8 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.465 in |
| Product length | 1.217 in |
| Product width | .776 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 550 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
