Deutsch | SKU:
DT06-08SA-CE06

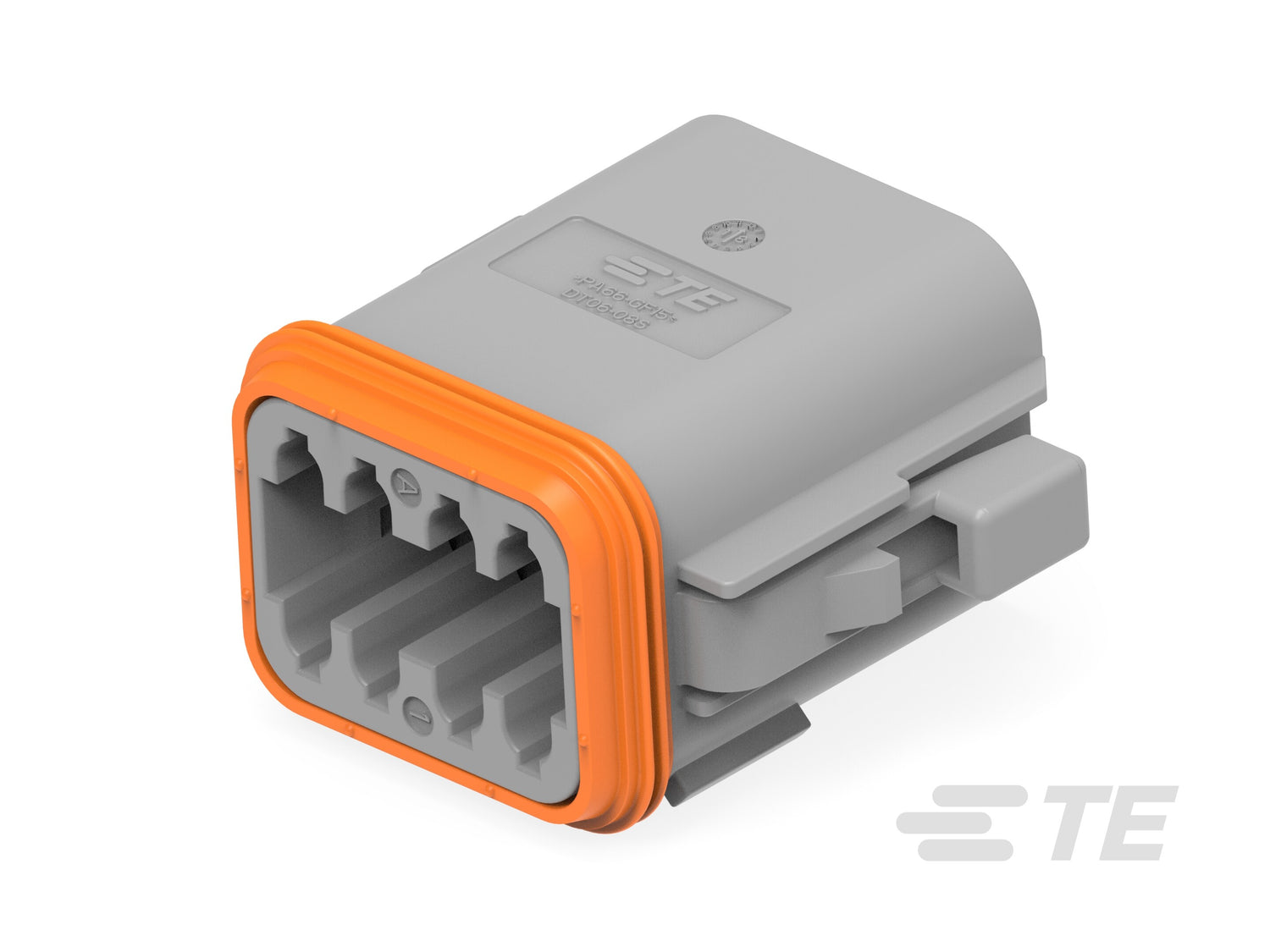

DT06-08SA-CE06 - Seals and Accessories
DT06-08SA-CE06 is a genuine Deutsch plug configured as DEUTSCH DT, 8 way, keying A, gray. Designed for harsh environments, it keeps connections stable and protected.
- Temperature range: -67 – 257 °F
- Housing material: PA GF
- Keying code: A
- IP rating: IP6K9K
- Positions: 8
- Colour: Gray
- Series: DEUTSCH DT
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It is a strong choice for service friendly assemblies and repeat repairs. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$4.71/each
50+5% off
$4.47/each$4.71
100+10% off
$4.25/each$4.71
500+19% off
$3.82/each$4.71
DT06-08SA-CE06 - Seals and Accessories
Regular price
$4.71
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention |
| Connector seal code | E Seal |
| Number of positions | 8 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.465 in |
| Product length | 1.217 in |
| Product width | .776 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
