Deutsch | SKU:
DT06-08SA-CE11
DT06-08SA-CE11 - Seals and Accessories

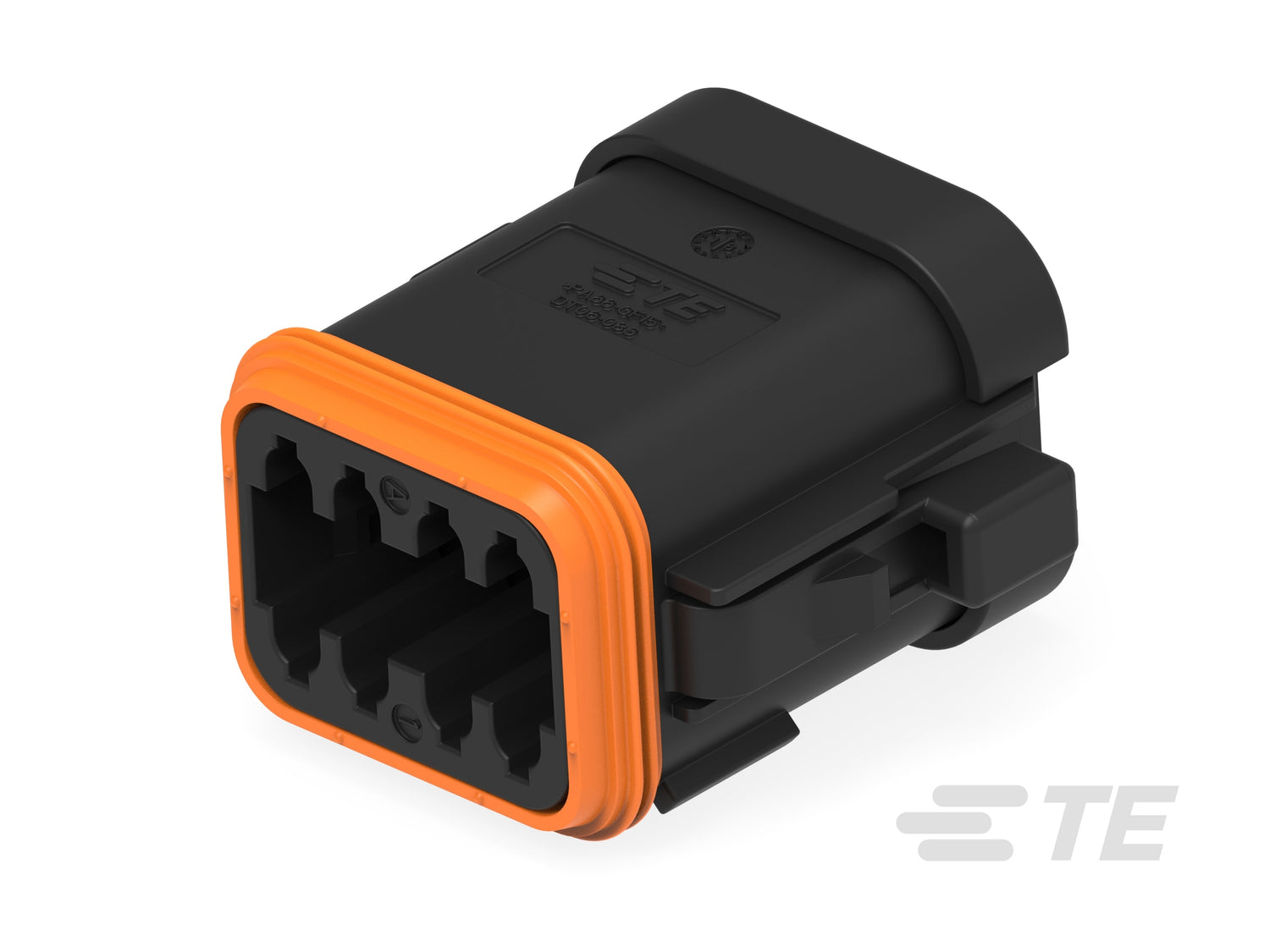

DT06-08SA-CE11 is a genuine Deutsch cap configured as DEUTSCH DT, 8 way, keying A, black. If you are chasing a reliable, repeatable fit, this one is a safe bet.
- Housing material: PA GF
- Keying code: A
- Positions: 8
- Series: DEUTSCH DT
- IP rating: IP6K9K
- Temperature range: -67 – 257 °F
- Colour: Black
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It is made to cope with vibration, moisture and day to day knocks. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$4.40/each
50+10% off
$3.96/each$4.40
100+19% off
$3.56/each$4.40
DT06-08SA-CE11 - Seals and Accessories
Regular price
$4.40
Unit price
Unavailable
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention, End Cap |
| Connector seal code | E Seal |
| Number of positions | 8 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.465 in |
| Product length | 1.267 in |
| Product width | .872 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
