Deutsch | SKU:
DT06-08SB-CE05

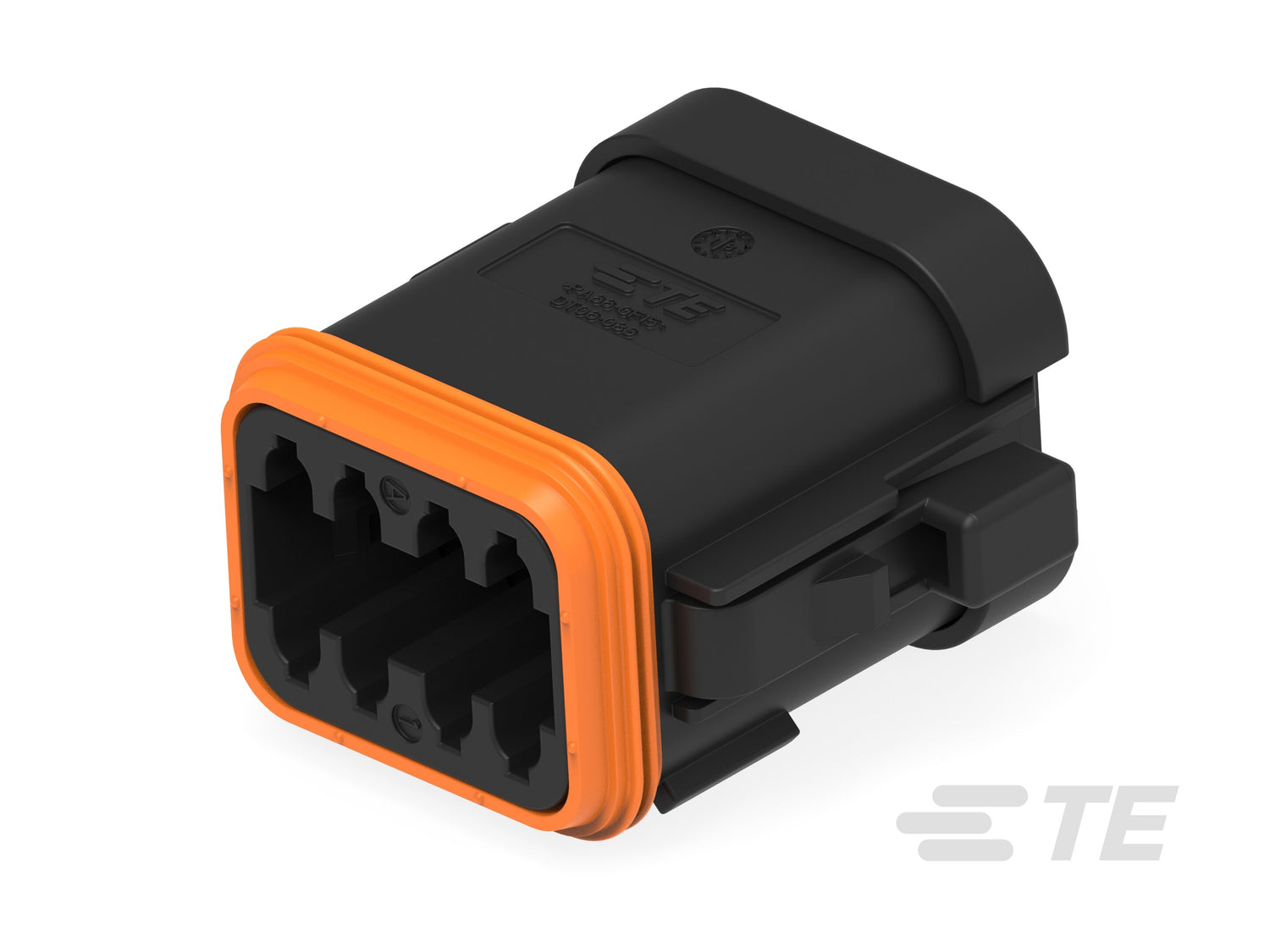

DT06-08SB-CE05 - Seals and Accessories
PLG, 8P, BLK, E, SEAL RET, CAP, B
DT06-08SB-CE05 is a genuine Deutsch DT plug used in rugged wiring looms where reliability matters. It is designed for demanding on- and off-highway environments, with secure locking and dependable sealing.
- Series: Deutsch DT
- Positions: 8
- Colour: Black
- IP rating: IP6K9K
- Operating temperature: -67 – 257 °F
- Sealable: Yes
- Serviceable: Yes
Typical applications
- Commercial vehicle, truck and bus
- Off-highway and agricultural machinery
- Construction and plant equipment
- Marine and industrial power systems
Why buy from Deutsch DT Connectors
- Specialist distributor support
- Quality-checked, genuine components
- Fast dispatch and reliable supply
Quantity price breaks
1+
$4.90/each
50+10% off
$4.41/each$4.90
100+19% off
$3.97/each$4.90
DT06-08SB-CE05 - Seals and Accessories
Regular price
$4.90
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | B |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention, End Cap |
| Connector seal code | E Seal |
| Number of positions | 8 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.465 in |
| Product length | 1.267 in |
| Product width | .872 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
