Deutsch | SKU:
DT06-12SA-EP08

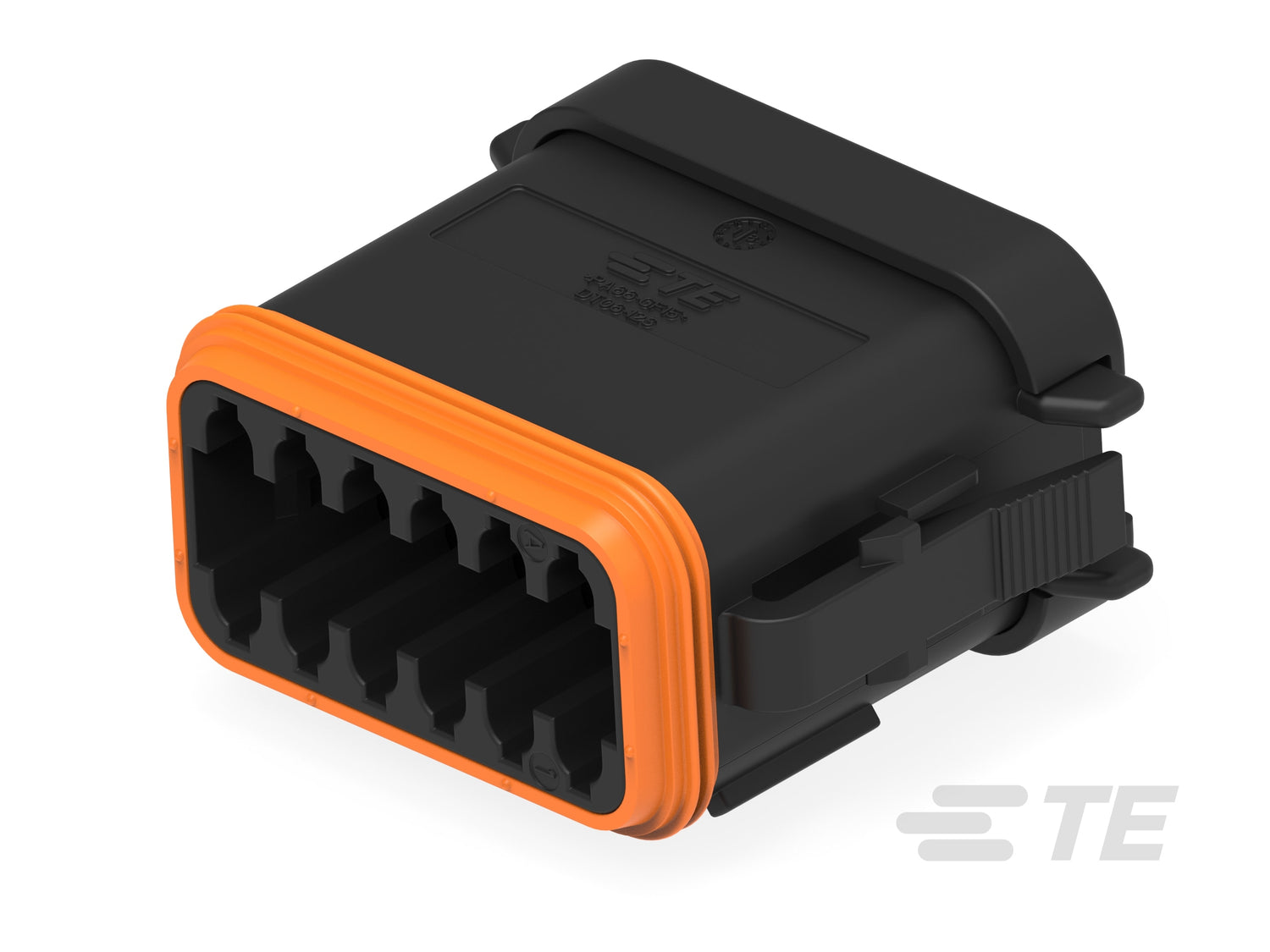

DT06-12SA-EP08 - Seals and Accessories
DT06-12SA-EP08 delivers dependable connectivity within the DEUTSCH DT family, suited to harsh duty applications.
Well suited to commercial vehicles, agricultural machinery and plant equipment where vibration, moisture and dust are everyday challenges. A practical choice for professional harness builds.
Quantity price breaks
1+
$4.99/each
50+10% off
$4.49/each$4.99
100+19% off
$4.04/each$4.99
DT06-12SA-EP08 - Seals and Accessories
Regular price
$4.99
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention, End Cap |
| Number of positions | 12 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.597 in |
| Product length | 1.268 in |
| Product width | .82 in |
| Row to row spacing | .359 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 450 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
