Deutsch | SKU:
DT06-3S-EP06

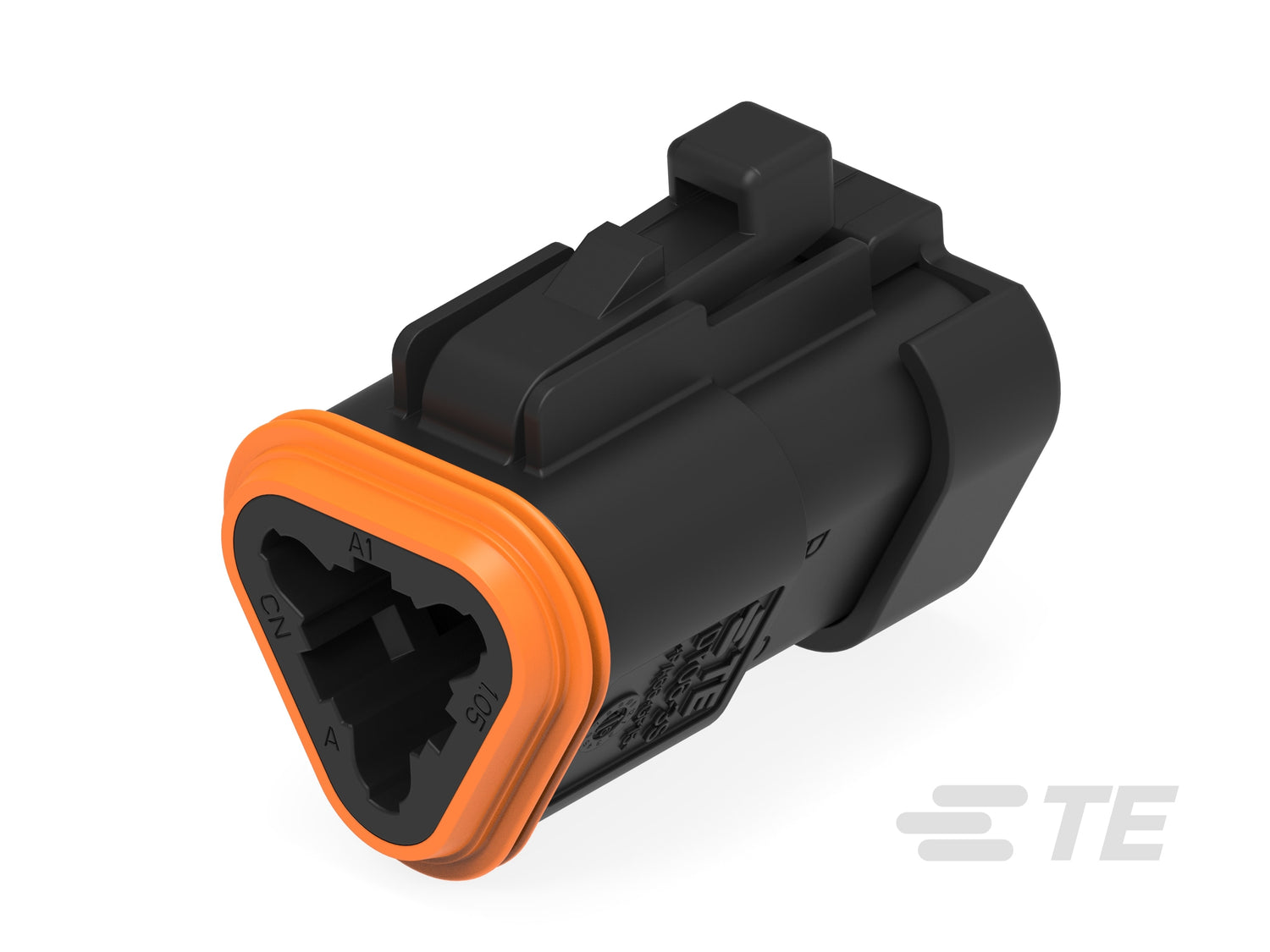

DT06-3S-EP06 Deutsch DT 3-Way Plug Housing with Seal Retainer Cap - Black
DT06-3S-EP06 Deutsch DT 3-Way Plug Housing is a black sealed housing for three Size 16 socket contacts, using the EP06 enhanced seal-retention and end-cap configuration.
The free-hanging wire-to-wire housing is rated to 250 V and up to 13 A per contact, with terminal position assurance, IP68/IP6K9K protection and a -55 to 125°C operating range.
Choose DT06-3S-EP06 when a 3-position DT socket plug needs the enhanced rear seal-retention/end-cap design rather than the standard DT06-3S housing configuration.
Specifications
- Series: DEUTSCH DT
- Connector: Plug housing
- Positions: 3
- Contact type: Socket
- Contact size: Size 16
- Modification: EP06 enhanced seal retention / end cap
- Mounting: Free-hanging (in-line)
- Terminal position assurance: Yes
- Operating voltage: 250 V
- Max contact current: 13 A
- IP rating: IP68 / IP6K9K
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$1.66/each
50+23% off
$1.28/each$1.66
100+27% off
$1.22/each$1.66
500+30% off
$1.17/each$1.66
1000+33% off
$1.11/each$1.66
5000+36% off
$1.06/each$1.66
DT06-3S-EP06 Deutsch DT 3-Way Plug Housing with Seal Retainer Cap -...
Regular price
$1.66
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention, End Cap |
| Number of positions | 3 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .94 in |
| Product length | 1.178 in |
| Product width | .737 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .341 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1200 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Triangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
