Deutsch | SKU:
DT06-6S-C017

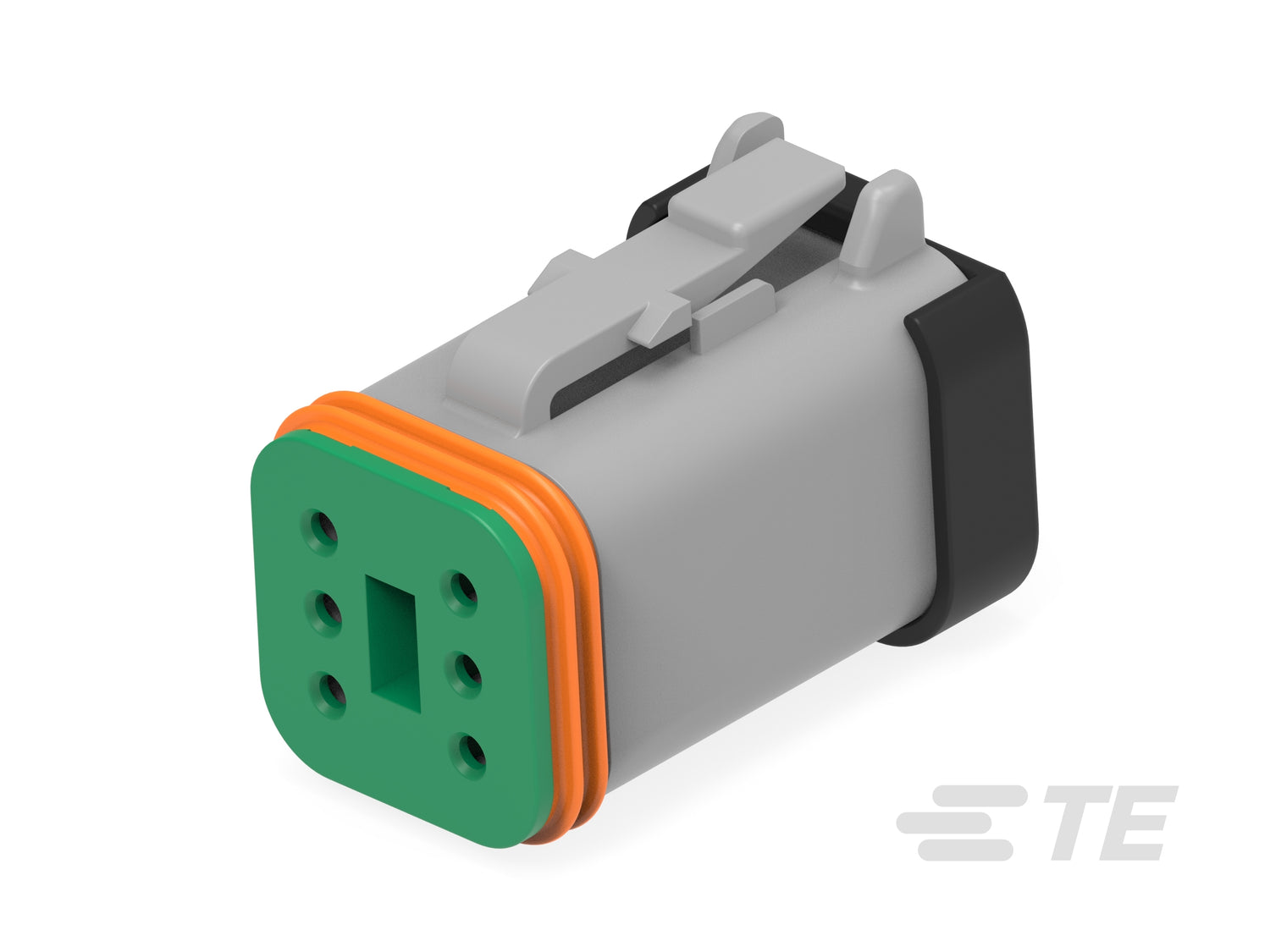

DT06-6S-C017 Deutsch DT 6-Way Plug Housing – Solid Shell
DT06-6S-C017 Deutsch DT 6-Way Plug Housing is a gray sealed housing for Size 16 socket contacts with the C017 solid rear grommet and end-cap modification.
All six cavity positions are blocked at the rear, making this a sealed solid-back configuration rather than a conventional six-way plug for terminated wires; the housing is rated IP68/IP6K9K.
Choose DT06-6S-C017 only when the application specifically requires a six-position DT plug with every wire cavity blocked by the C017 solid rear grommet/end cap.
Specifications
- Series: DEUTSCH DT
- Connector: Plug housing
- Positions: 6
- Contact type: Socket
- Contact size: Size 16
- Modification: C017 solid rear grommet / end cap
- Blank cavities: 1-6
- Color: Gray
- IP rating: IP68 / IP6K9K
Quantity price breaks
1+
$6.77/each
50+14% off
$5.80/each$6.77
100+18% off
$5.52/each$6.77
DT06-6S-C017 Deutsch DT 6-Way Plug Housing – Solid Shell
Regular price
$6.77
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 6 |
| Connector modification | Solid Rear Grommet, End Cap |
| Number of positions | 6 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Connector height | .946 in |
| Product length | 1.318 in |
| Product width | .82 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 800 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
