Deutsch | SKU:
DT06-6S-EP11

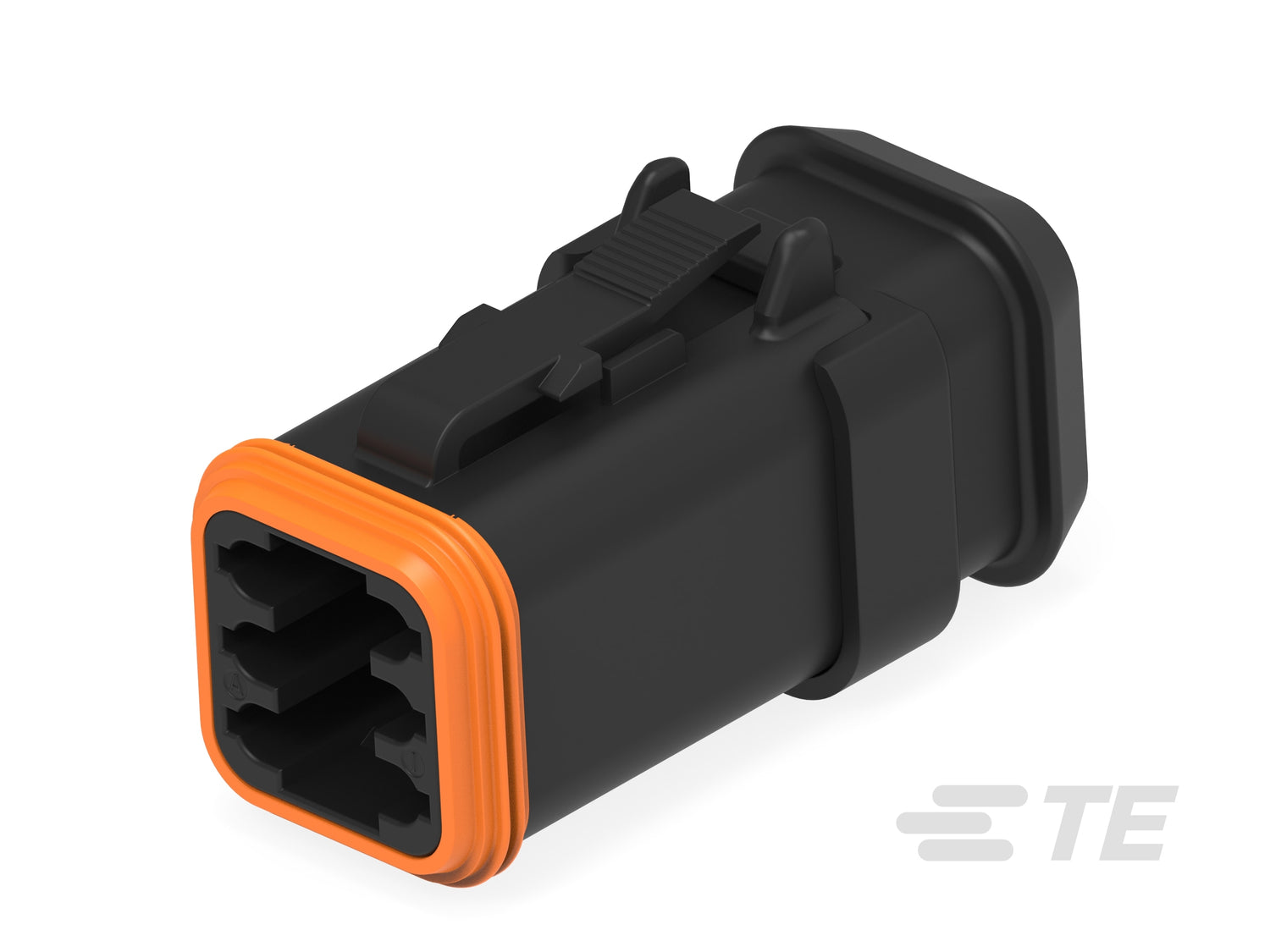

DT06-6S-EP11 - Seals and Accessories
DT06-6S-EP11 is a genuine Deutsch plug configured as DEUTSCH DT, 6 way, black. This is the sort of connector you fit once and stop thinking about.
- Colour: Black
- Temperature range: -67 – 257 °F
- Series: DEUTSCH DT
- Positions: 6
- IP rating: IP6K9K
- Housing material: PA GF
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It is engineered for consistent mating and long term durability. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$3.86/each
50+10% off
$3.47/each$3.86
100+19% off
$3.13/each$3.86
DT06-6S-EP11 - Seals and Accessories
Regular price
$3.86
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention, Shrink Boot Adapter |
| Number of positions | 6 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .946 in |
| Product length | 1.701 in |
| Product width | .814 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
