Deutsch | SKU:
DT06-6S-P012
DT06-6S-P012 - Seals and Accessories

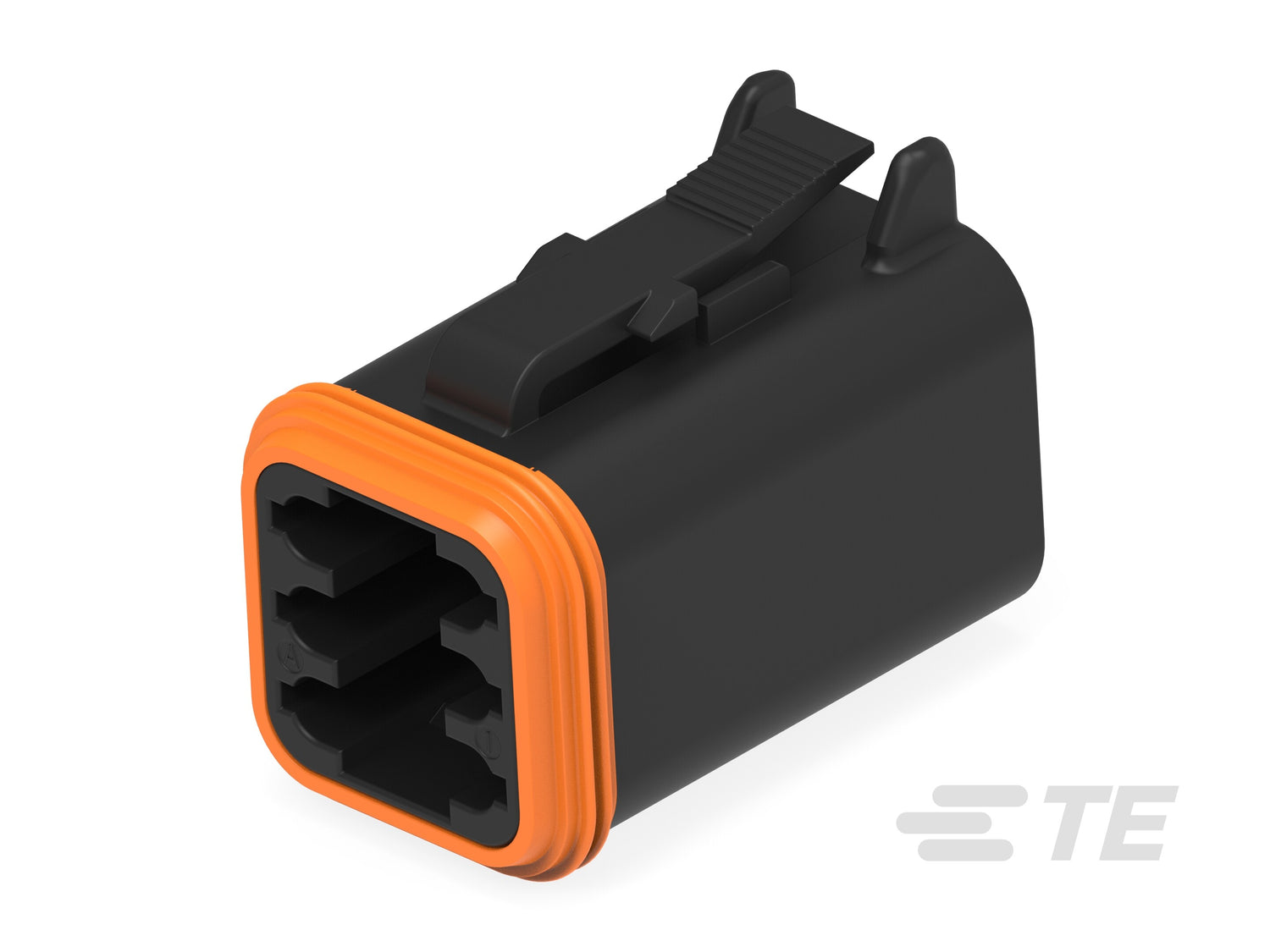

DT06-6S-P012 is a genuine Deutsch plug configured as DEUTSCH DT, 6 way, black. For heavy duty connectivity, it delivers secure engagement and proper sealing.
- Positions: 6
- IP rating: IP6K9K
- Series: DEUTSCH DT
- Colour: Black
- Temperature range: -67 – 257 °F
- Housing material: PA GF
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It suits exposed harness runs where a positive lock matters. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$2.15/each
50+5% off
$2.05/each$2.15
100+10% off
$1.94/each$2.15
500+19% off
$1.75/each$2.15
1000+23% off
$1.66/each$2.15
DT06-6S-P012 - Seals and Accessories
Regular price
$2.15
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Enhanced Seal Retention |
| Number of positions | 6 |
| Number of rows | 2 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | .891 in |
| Product length | 1.218 in |
| Product width | .716 in |
| Row to row spacing | .175 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 12mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 900 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
