Deutsch | SKU:
DT16-18SB-EK02
Sold out

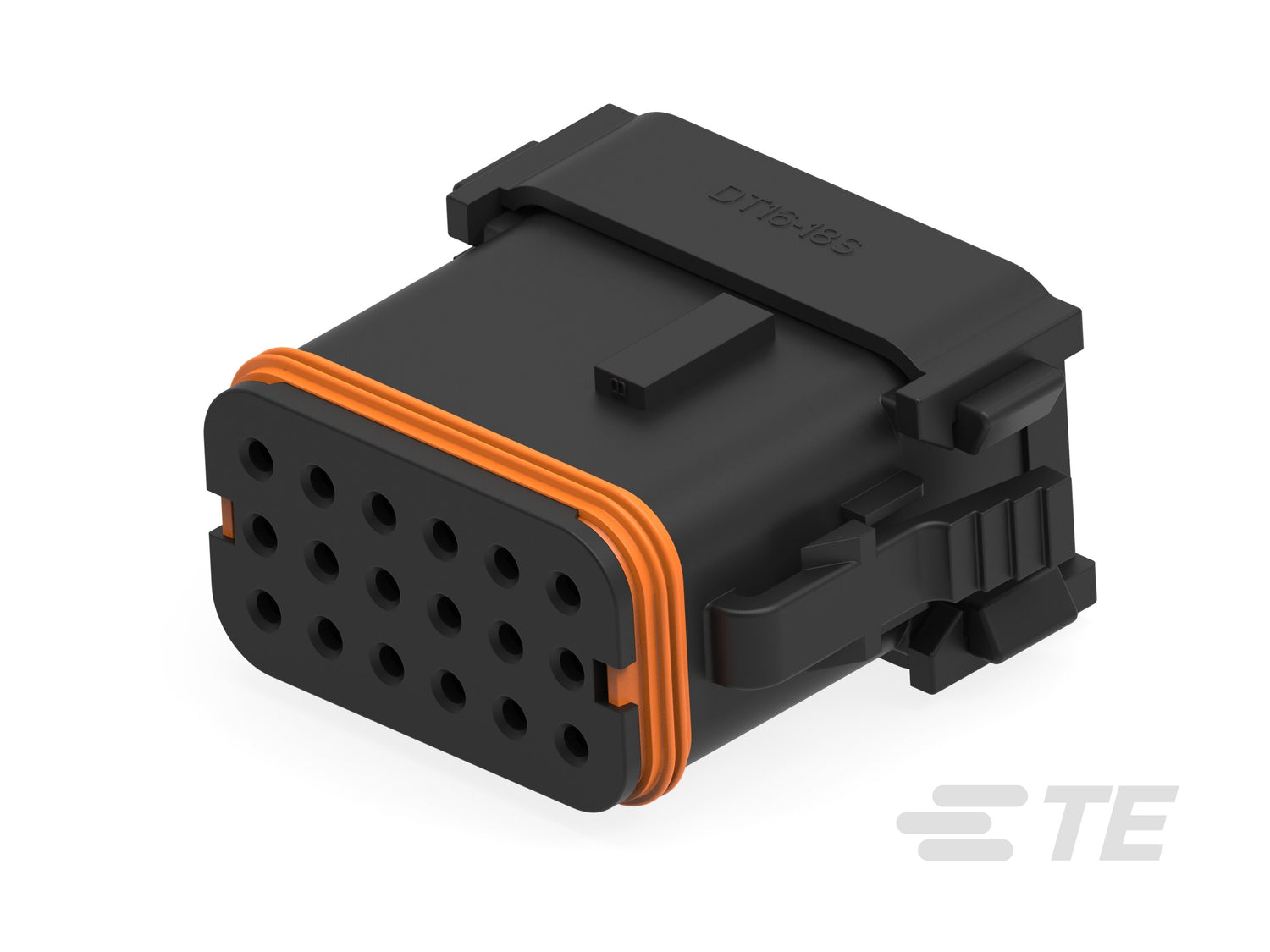

DT16-18SB-EK02 Deutsch DT 18-Way Plug Housing – Key B, End Cap
DT16-18SB-EK02 is a genuine Deutsch plug configured as DEUTSCH DT, 18 way, keying B, black. Built for tough service, it is a dependable option for professional harness work.
- Keying code: B
- Series: DEUTSCH DT
- Positions: 18
- Temperature range: -67 – 257 °F
- IP rating: Not Tested
- Housing material: PA GF
- Colour: Black
Where it fits best: off highway vehicles, agricultural equipment, construction plant.
It suits exposed harness runs where a positive lock matters. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$16.58/each
Lead time on request
50+5% off
$15.79/each$16.58
Lead time on request
100+9% off
$15.04/each$16.58
Lead time on request
Technical Documentation
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | B |
| Primary product color | Black |
| Connector modification | Enhanced Seal Retention, End Cap |
| Number of positions | 18 |
| Number of rows | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.725 in |
| Product length | 1.393 in |
| Product width | .826 in |
| Row to row spacing | .19 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .184 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 500 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
