Deutsch | SKU:
DTHD04-1-8P-E003

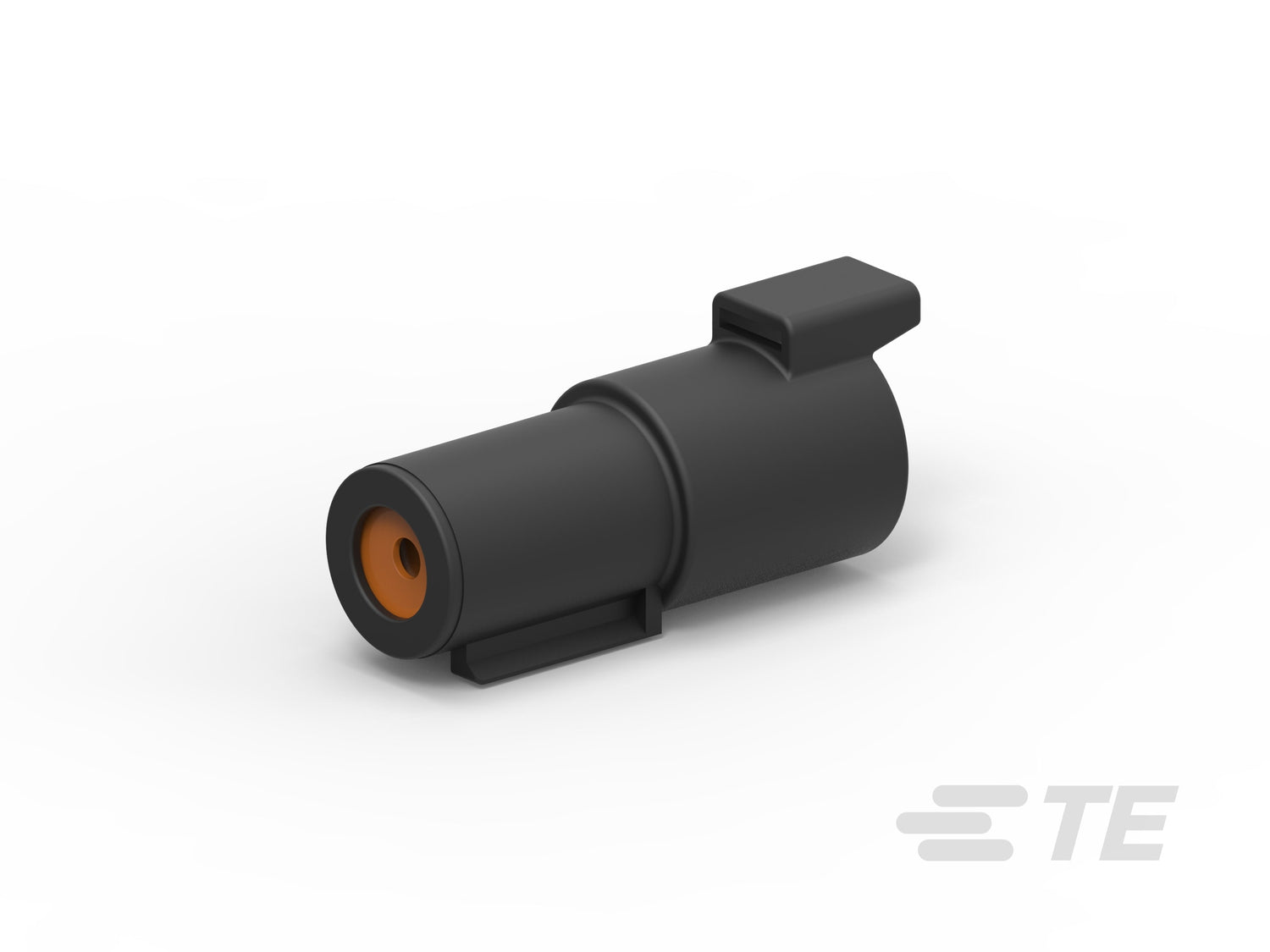

DTHD04-1-8P-E003 - DT Series
DTHD04-1-8P-E003 is a genuine Deutsch connector from the DEUTSCH DT range, built in a 1 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH DT
- Positions: 1
- Ingress protection: Not Tested
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$8.28/each
50+10% off
$7.45/each$8.28
100+19% off
$6.71/each$8.28
DTHD04-1-8P-E003 - DT Series
Regular price
$8.28
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Connector modification | End Cap |
| Number of positions | 1 |
| Number of rows | 1 |
| Contact current rating max | 60 A |
| Contact size | Size 8 |
| Contact type | Pin |
| Mating pin diameter | .142 in |
| Compatible insulation diameter | .19 – .24 in |
| Connector height | .94 in |
| Product length | 2.118 in |
| Product width | .8 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PEI (Polyetherimide) |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1000 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
