Deutsch  |  SKU: DTM04-08PA-E005

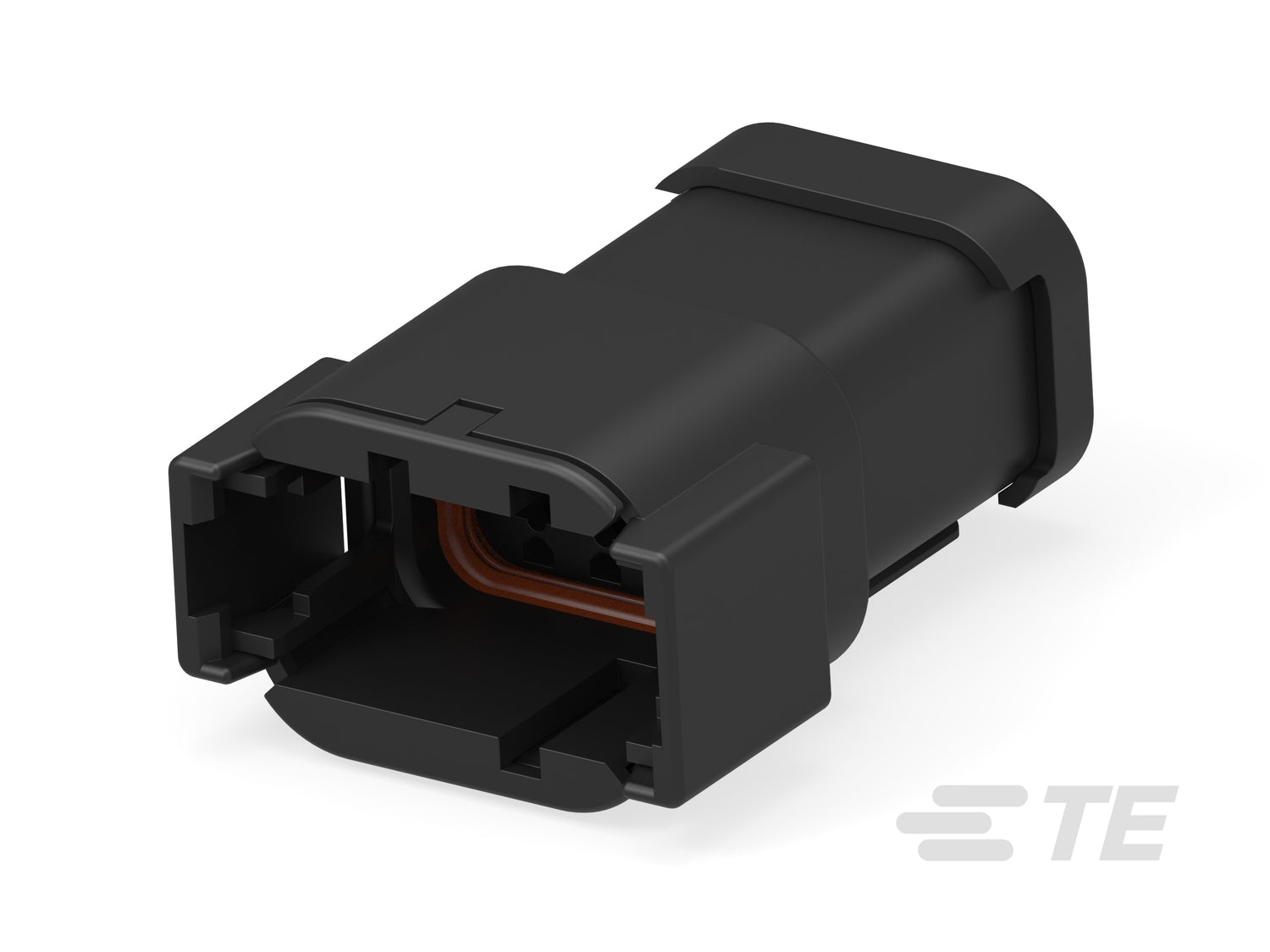

DTM04-08PA-E005 Deutsch DTM 8-Way Receptacle Housing - Pin, Key A

DTM04-08PA-E005 is a Deutsch DTM 8-way receptacle housing for Size 20 pin contacts. This black Key A sealed wire-to-wire connector with an end-cap configuration provides a compact multi-circuit interface for professional wiring harness assemblies.

The E003 suffix specifies the gray end-cap version of the Key A 8-way receptacle. It accommodates Size 20 pin contacts and retains a 7.5 A maximum contact rating and 250 V AC/DC operating voltage when used with correctly specified circuit components.

Choose DTM04-08PA-E005 where the capped rear housing configuration is required instead of the uncapped standard 8-way Key A receptacle. Confirm the cable routing, mating key and secondary lock during connector selection.

Typical applications include automotive control harnesses, off-highway machinery, agricultural equipment, industrial sensors and serviceable multi-circuit wiring connections.

  • Series: DEUTSCH DTM
  • Connector: 8-way receptacle housing
  • Positions: 8
  • Contact type: Pin
  • Contact size: Size 20
  • Keying: A
  • Housing colour: Black
  • Variant: End cap
  • Mounting: In-line / cable mount
  • Contact current rating: Up to 7.5 A per contact
  • Operating voltage: 250 V AC/DC
  • Sealing: Sealable; IP68 / IP6K9K when correctly assembled
  • Operating temperature: -55 to +125°C (-67 to +257°F)

Dimensions

  • Connector height: 31.62 mm
  • Product length: 45.21 mm
  • Product width: 20.22 mm
  • Compatible wire insulation diameter: 1.35–3.05 mm (0.053–0.120 in)

Mating Parts

Compatible Parts

  • Secondary lock / wedgelock: WM-8P for the 8-way pin-contact side
  • Contacts: Deutsch Size 20 pin crimp contacts selected for the actual wire gauge and termination method

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$7.07/each
50+29% off
$5.00/each$7.07
100+33% off
$4.77/each$7.07
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Connector keying code A
Primary product color Black
Blank cavity position 0
Connector modification End Cap
Connector seal code N Seal
Number of positions 8
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Pin
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.245 in
Product length 1.78 in
Product width .796 in
Row to row spacing .28 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .165 in
Housing material PA 66 GF15
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Keyed
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 500
Connector contact terminates t Wire & Cable
Connector housing type Housing for Male Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
