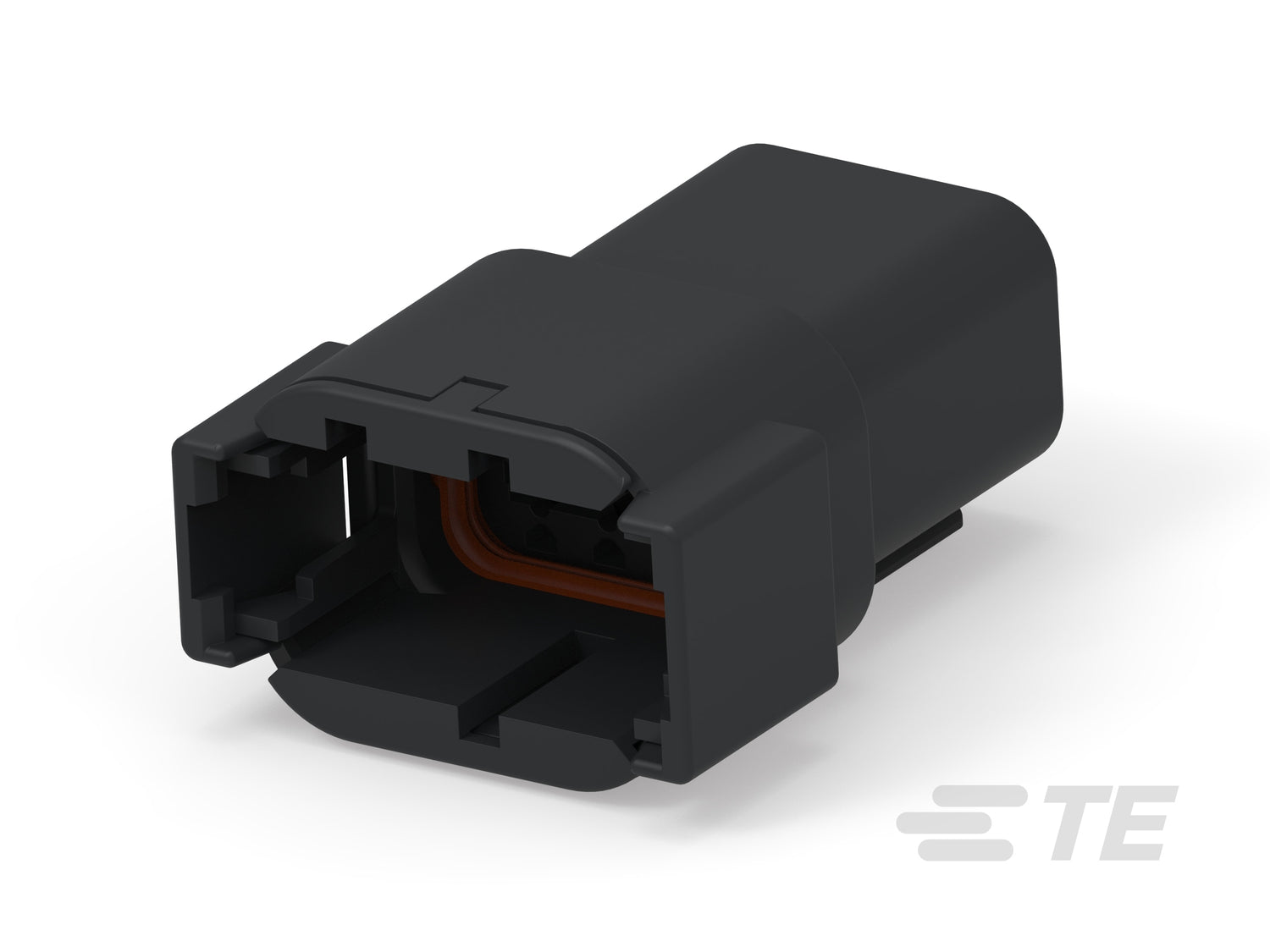

DTM04-08PB is a Deutsch DTM 8-way receptacle housing for Size 20 pin contacts. This black Key B sealed wire-to-wire connector provides a compact multi-circuit interface for professional wiring harness assemblies.
Its Key B interface prevents accidental mating with other DTM key codes, while the black housing provides a useful identification cue during harness assembly. The system uses Size 20 pin contacts, supports up to 7.5 A per contact and has a 250 V AC/DC operating-voltage specification, subject to the complete assembly.
Choose DTM04-08PB when a standard 8-way, Key B Deutsch DTM receptacle is required for a serviceable, sealed multi-wire connection. Verify that the mating housing uses the matching key and that the contacts and wedgelock match this pin-contact configuration.
Typical applications include automotive control harnesses, off-highway machinery, agricultural equipment, industrial sensors and serviceable multi-circuit wiring connections.
-
Series: DEUTSCH DTM
-
Connector: 8-way receptacle housing
-
Positions: 8
-
Contact type: Pin
-
Contact size: Size 20
-
Keying: B
-
Housing colour: Black
-
Mounting: In-line / cable mount
-
Contact current rating: Up to 7.5 A per contact
-
Operating voltage: 250 V AC/DC
-
Sealing: Sealable; IP68 / IP6K9K when correctly assembled
-
Operating temperature: -55 to +125°C (-67 to +257°F)
Dimensions
-
Connector height: 31.62 mm
-
Product length: 43.69 mm
-
Product width: 20.22 mm
-
Compatible wire insulation diameter: 1.35–3.05 mm (0.053–0.120 in)
Mating Parts
Compatible Parts
-
Secondary lock / wedgelock: WM-8P for the 8-way pin-contact side
-
Contacts: Deutsch Size 20 pin crimp contacts selected for the actual wire gauge and termination method
