Deutsch  |  SKU: DTM06-12SA

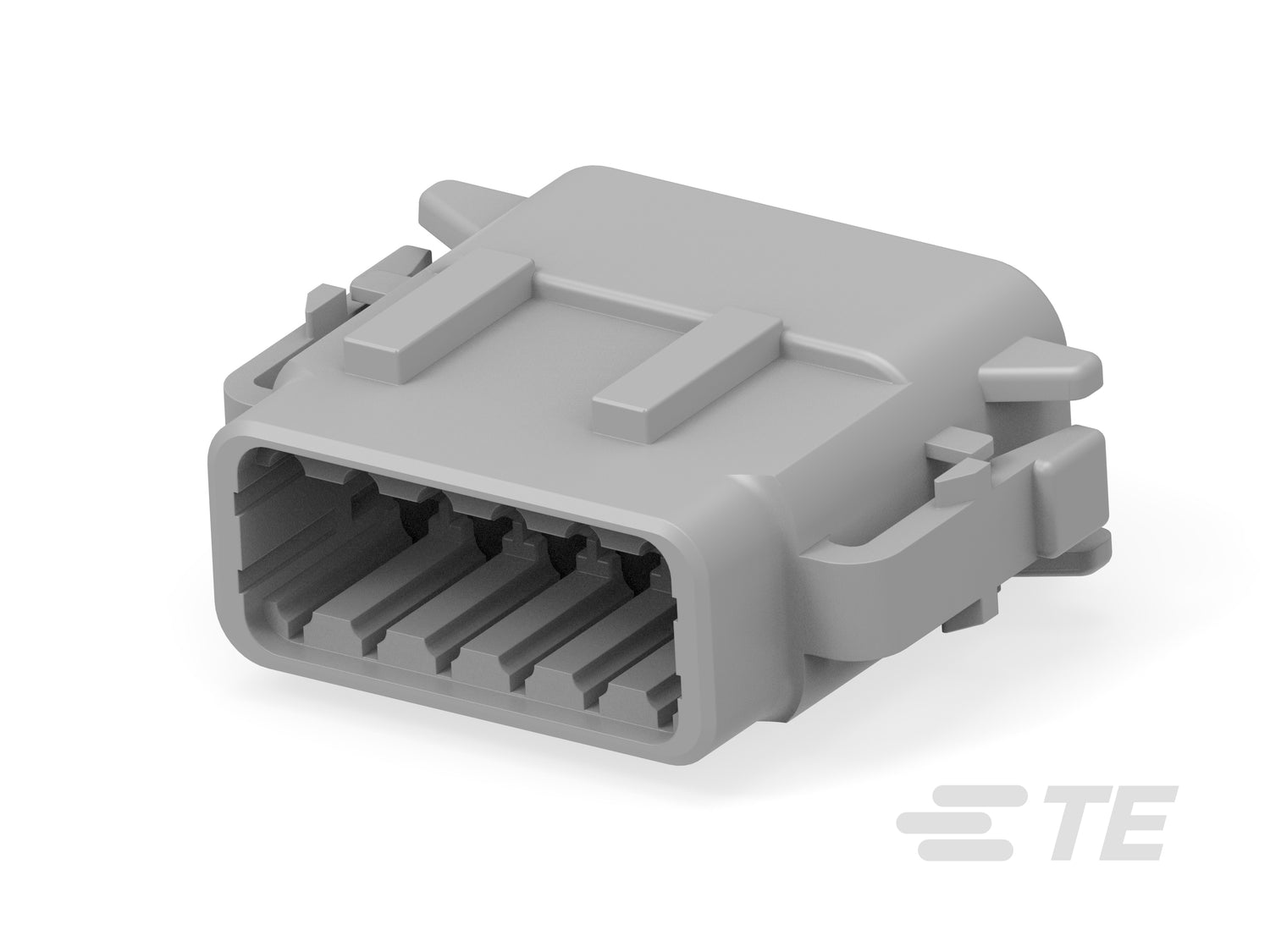

DTM06-12SA Deutsch DTM 12-Way Plug Housing - Socket, Key A

DTM06-12SA Deutsch DTM 12-way plug housing is a gray Key A connector for twelve Size 20 socket contacts.

The DTM06-12SA provides the standard 12-position Key A DTM plug interface, rated up to 7.5 A per contact and 250 V AC/DC, with terminal position assurance and IP68/IP6K9K protection when assembled correctly.

Choose DTM06-12SA when the harness requires a 12-way DTM socket plug with Key A; use the key code to distinguish it from the B, C and D versions of the same DTM06-12S base housing.

Typical applications include sensor and control harnesses in commercial vehicles, agricultural machinery, motorsport, industrial equipment and off-highway systems.

  • Series: DEUTSCH DTM
  • Connector: Plug housing
  • Positions: 12
  • Contact type: Socket
  • Contact size: Size 20
  • Keying: A
  • Color: Gray
  • Mounting: Free-hanging / in-line
  • Contact current rating: Up to 7.5 A
  • Operating voltage: 250 V AC/DC
  • IP rating: IP68 / IP6K9K
  • Operating temperature: -55 to 125°C (-67 to 257°F)
  • UL flammability rating: UL 94V-0
  • Compatible With Agency/Standards Products: SAE J2030

Dimensions

  • Connector Height: 29.9 mm (1.18 in)
  • Product Length: 37.8 mm (1.49 in)
  • Product Width: 15.2 mm (0.600 in)
  • Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)
  • Row-to-Row Spacing: 7.11 mm (0.280 in)

Mating Parts

  • Mating connector: DTM04-12PA 12-way Key A receptacle housing for pin contacts

Compatible Parts

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$2.80/each
50+27% off
$2.05/each$2.80
100+29% off
$2.00/each$2.80
500+32% off
$1.90/each$2.80
1000+35% off
$1.81/each$2.80
5000+38% off
$1.73/each$2.80

2786 in stock — lead time on request for 5000+

Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Connector keying code A
Primary product color Gray
Blank cavity position 0
Number of positions 12
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.18 in
Product length 1.49 in
Product width .6 in
Row to row spacing .28 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .15 in
Housing material PA 66 GF15
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Keyed
Strain relief Without
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
