Deutsch  |  SKU: DTM06-12SD

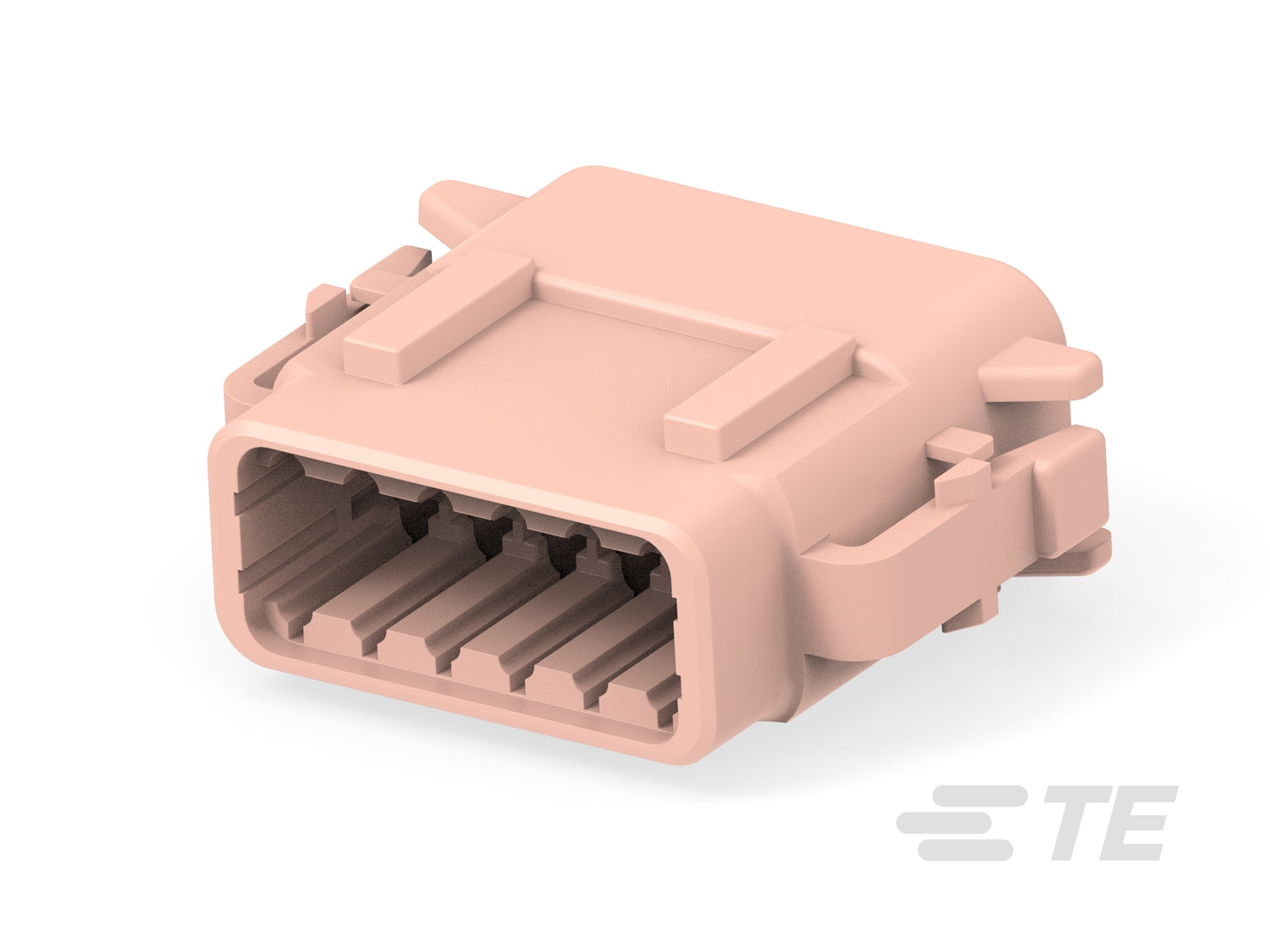

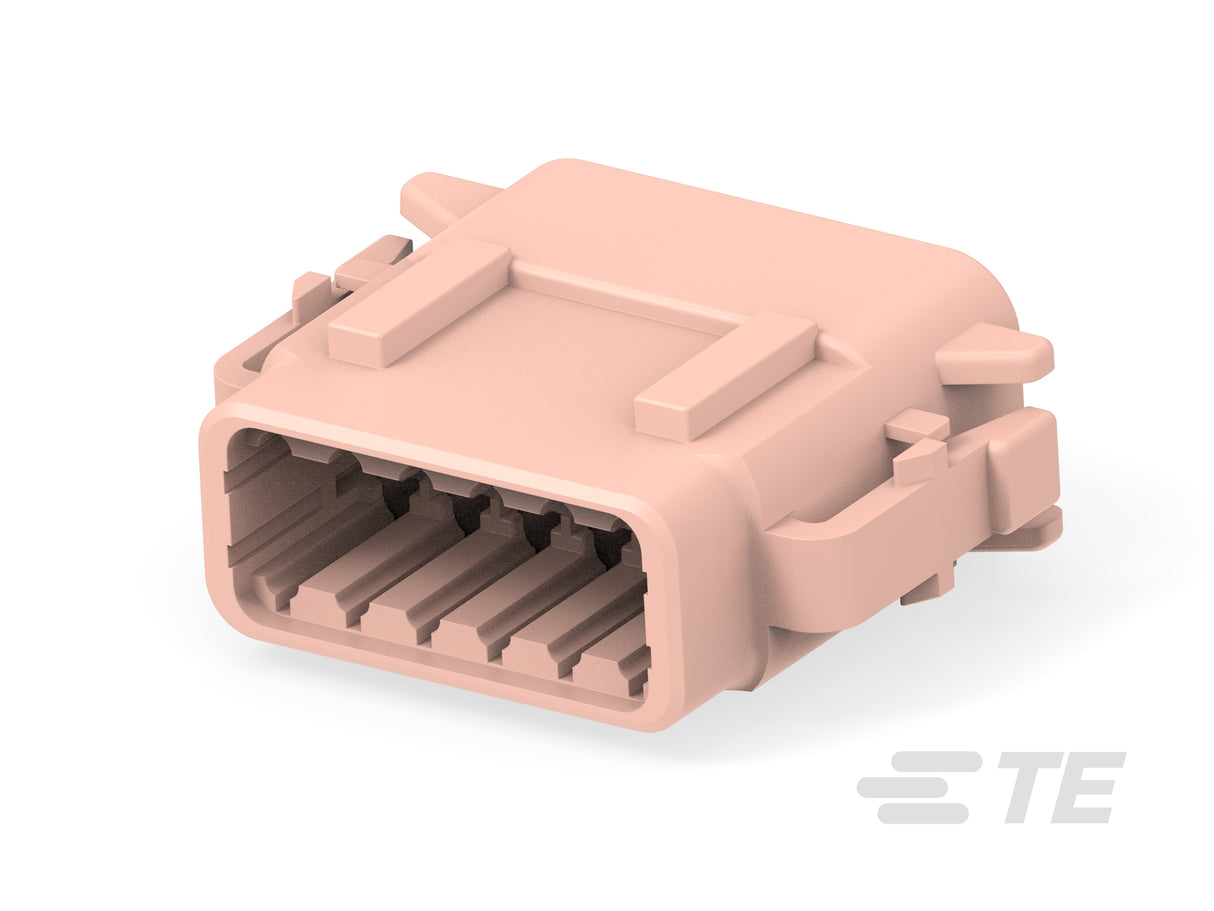

DTM06-12SD Deutsch DTM 12-Way Plug Housing - Socket, Key D

DTM06-12SD Deutsch DTM 12-way plug housing is a brown Key D connector for twelve Size 20 socket contacts.

The DTM06-12SD uses the standard 12-position DTM06-12S plug architecture with Key D polarization, up to 7.5 A per contact, 250 V AC/DC operation and IP68/IP6K9K protection when assembled correctly.

Choose DTM06-12SD when the harness requires a 12-way DTM socket plug specifically keyed D; the key code is the critical compatibility difference from the A, B and C versions of the DTM06-12S family.

Typical applications include vehicle and machinery control harnesses, sensors, industrial equipment and off-highway systems where keyed connector differentiation helps prevent cross-mating.

  • Series: DEUTSCH DTM
  • Connector: Plug housing
  • Positions: 12
  • Contact type: Socket
  • Contact size: Size 20
  • Keying: D
  • Color: Brown
  • Mounting: Free-hanging / in-line
  • Contact current rating: Up to 7.5 A
  • Operating voltage: 250 V AC/DC
  • IP rating: IP68 / IP6K9K
  • Operating temperature: -55 to 125°C (-67 to 257°F)
  • UL flammability rating: UL 94V-0
  • Compatible With Agency/Standards Products: SAE J2030

Dimensions

  • Connector Height: 29.9 mm (1.18 in)
  • Product Length: 37.8 mm (1.49 in)
  • Product Width: 15.2 mm (0.600 in)
  • Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)
  • Row-to-Row Spacing: 7.11 mm (0.280 in)

Mating Parts

  • Mating connector: DTM04-12PD 12-way Key D receptacle housing for pin contacts

Compatible Parts

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$3.57/each
50+37% off
$2.24/each$3.57
100+40% off
$2.14/each$3.57
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Connector keying code D
Primary product color Brown
Blank cavity position 0
Number of positions 12
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.18 in
Product length 1.49 in
Product width .6 in
Row to row spacing .28 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .15 in
Housing material PA 66 GF15
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Keyed
Strain relief Without
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
