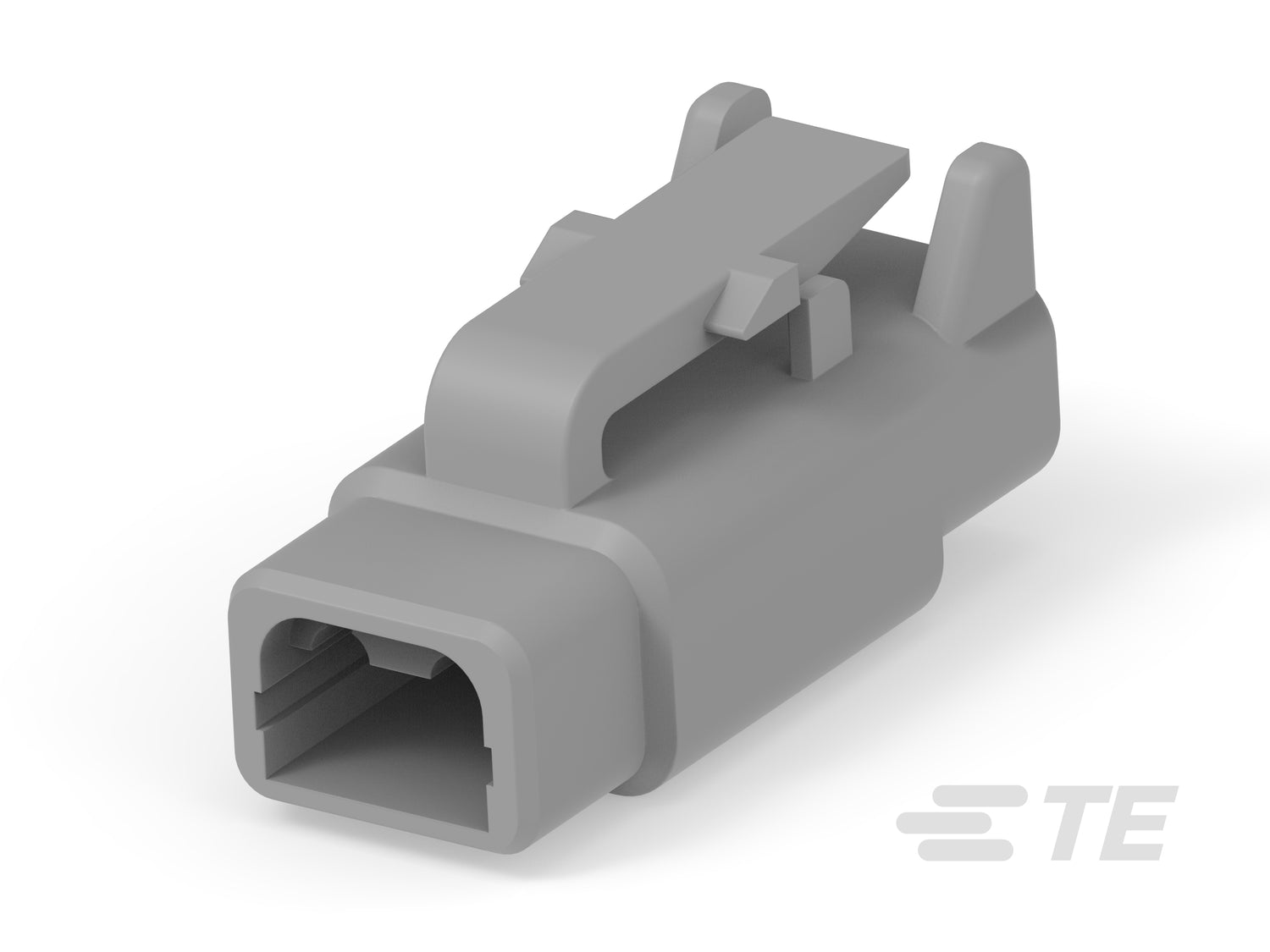

DTM06-2S Deutsch DTM 2-way plug housing is the standard gray DTM06-2S connector for two Size 20 socket contacts.
This sealed 2-way DTM socket plug supports up to 7.5 A per contact and 250 V AC/DC, with IP68/IP6K9K protection when assembled correctly. It is the base DTM06-2S housing from which specialist suffix variants such as resistor, end-cap and adapter versions are derived.
Choose DTM06-2S when you need the standard 2-way DTM plug for socket contacts, rather than a DTM06-2S suffix variant with a special electrical or rear-interface modification.
Typical applications include sensors, actuators, motorsport harnesses, commercial vehicles, agricultural machinery and compact industrial signal connections.
-
Series: DEUTSCH DTM
-
Connector: Plug housing
-
Positions: 2
-
Contact type: Socket
-
Contact size: Size 20
-
Color: Gray
-
Mounting: Free-hanging / in-line
-
Contact current rating: Up to 7.5 A
-
Operating voltage: 250 V AC/DC
-
IP rating: IP68 / IP6K9K
-
Operating temperature: -55 to 125°C (-67 to 257°F)
-
UL flammability rating: UL 94V-0
-
Compatible With Agency/Standards Products: SAE J2030
Dimensions
-
Connector Height: 27.6 mm (1.10 in)
-
Product Length: 12.1 mm (0.476 in)
-
Product Width: 12.9 mm (0.508 in)
-
Compatible Insulation Diameter: 1.3 to 3.0 mm (0.053 to 0.120 in)
Mating Parts
-
Mating connector: DTM04-2P 2-way receptacle housing for pin contacts
Compatible Parts
View all Deutsch DTM Series Connectors
Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.
