DTM06-2S-P006

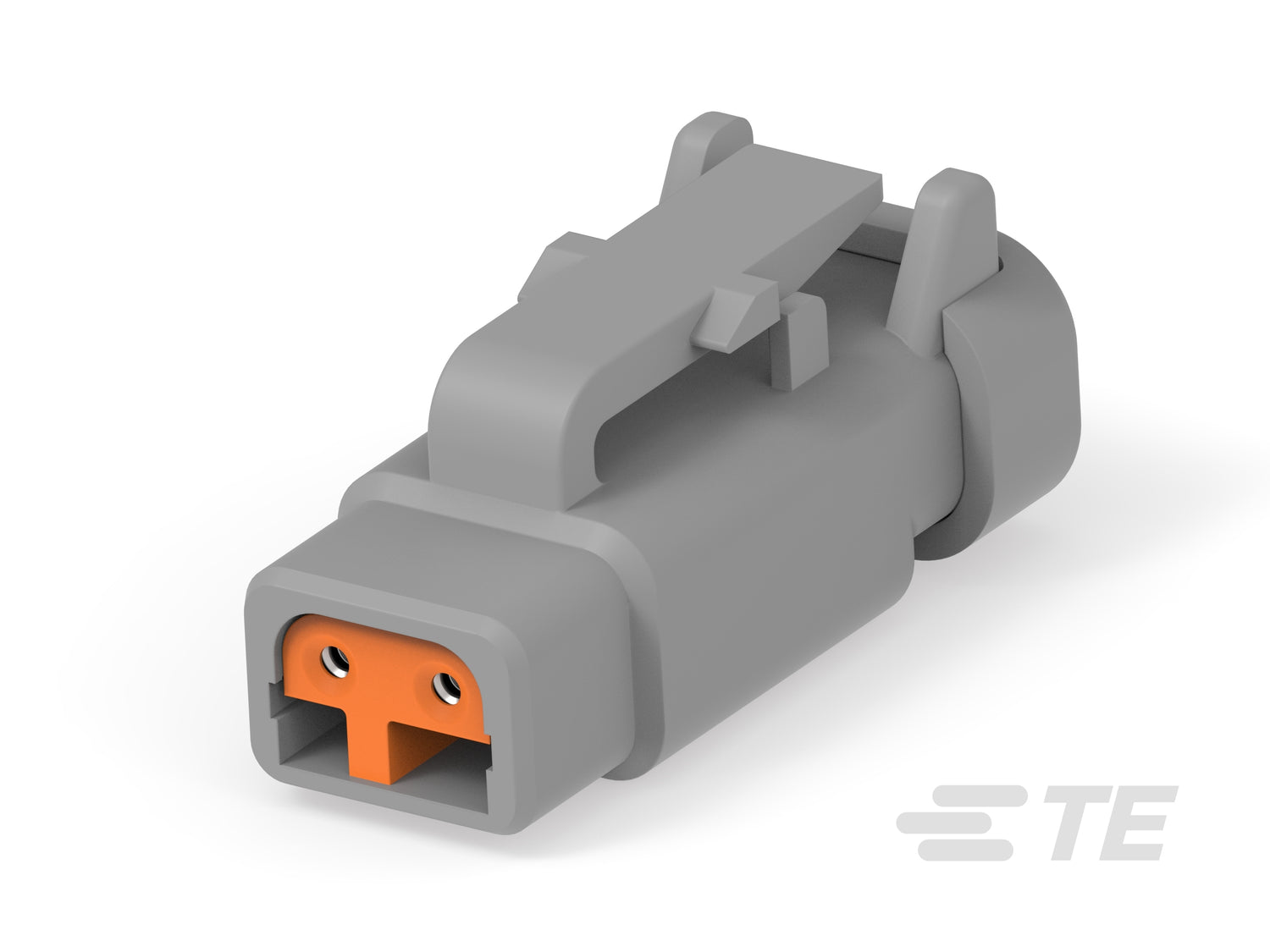

DTM06-2S-P006 Deutsch DTM 2-Way J1939 Terminating Resistor Plug - Sockets, 120 Ohm, Key A
DTM06-2S-P006 Deutsch DTM 2-Way J1939 Terminating Resistor Plug is a sealed Key A two-position housing for Size 20 socket contacts with an integrated 120-ohm termination resistor.
The P006 modification is intended for J1939/CAN network termination, combining the resistor and sealed connector interface in a compact component-to-wire assembly rated for 12/24/48 V architectures.
Choose DTM06-2S-P006 when a DTM-format 120-ohm J1939 termination is required at the end of the network; do not use it as a normal pass-through two-way plug.
Specifications
- Series: DEUTSCH DTM
- Connector: Terminating resistor plug
- Positions: 2
- Contact type: Socket
- Contact size: Size 20
- Keying: Key A
- Termination: 120 Ω resistor
- Modification: P006 J1939 terminating resistor
- Operating temperature: -55 to 125°C
Quantity price breaks
1+
$4.78/each
50+27% off
$3.49/each$4.78
100+31% off
$3.32/each$4.78
DTM06-2S-P006 Deutsch DTM 2-Way J1939 Terminating Resistor Plug - S...
Regular price
$4.78
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Terminating Resistor, J1939 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 7.5 A |
| Contact size | Size 20 |
| Contact type | Socket |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | .508 in |
| Product length | 1.145 in |
| Product width | .569 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .165 in |
| Housing material | PA GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Add By Accessory |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 1000 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Component-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | No |
