Deutsch | SKU:
DTMH04-2PC
Sold out

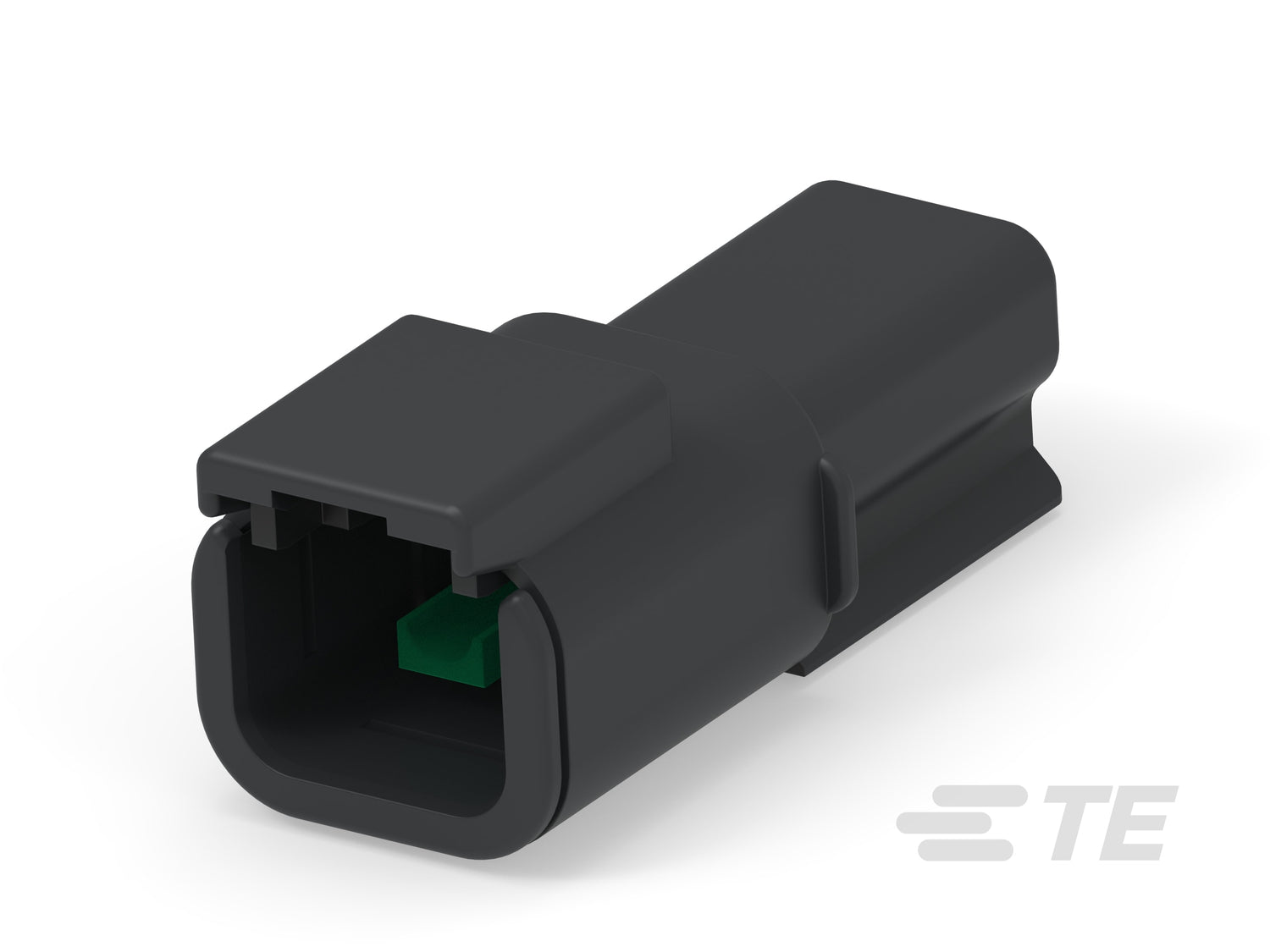

DTMH04-2PC - DT Series
DTMH04-2PC forms part of the DEUTSCH DT range, engineered for secure sealed connections in tough conditions.
Designed for off highway equipment and industrial systems where sealing integrity and positive engagement are essential. Ideal for dependable OEM level repairs and new builds.
Quantity price breaks
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | C |
| Primary product color | Black |
| Blank cavity position | 0 |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 7.5 A |
| Contact size | Size 20 |
| Contact type | Pin |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.62 in |
| Product length | .728 in |
| Product width | .638 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .165 in |
| Housing material | PA 46 GF |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | Without |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 302 °F |
| Operating temperature range | -67 – 302 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
