Deutsch | SKU:
DTMN06-2S

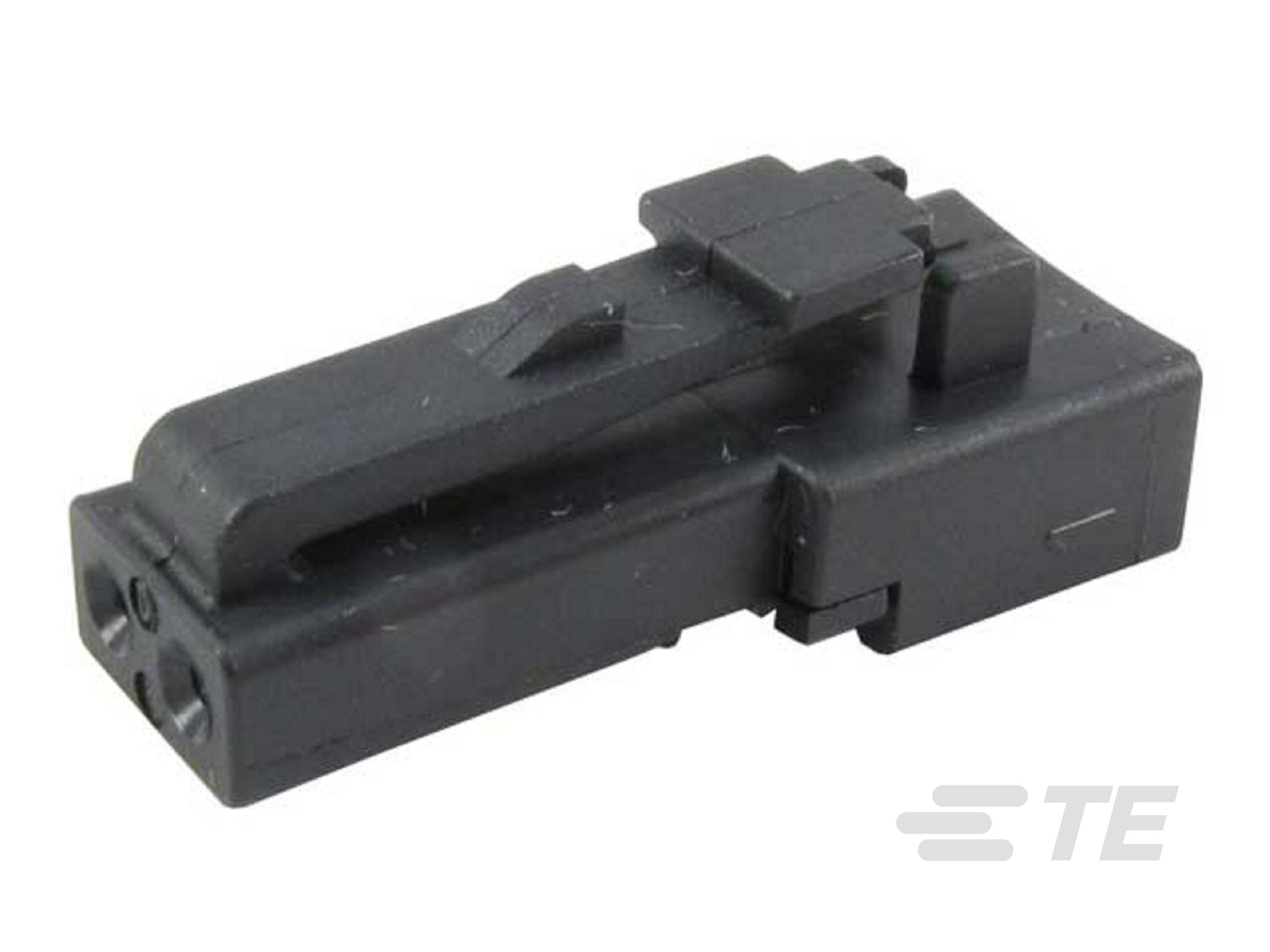

DTMN06-2S - DT Series
DTMN06-2S is a genuine Deutsch plug from the DEUTSCH DT range, built in a 2 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH DT
- Positions: 2
- Ingress protection: Not Tested
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$1.42/each
50+10% off
$1.28/each$1.42
100+19% off
$1.15/each$1.42
DTMN06-2S - DT Series
Regular price
$1.42
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Number of positions | 2 |
| Number of rows | 1 |
| Contact current rating max | 7.5 A |
| Contact size | Size 20 |
| Contact type | Socket |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | .346 in |
| Product length | .95 in |
| Product width | .37 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .13 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | No |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
