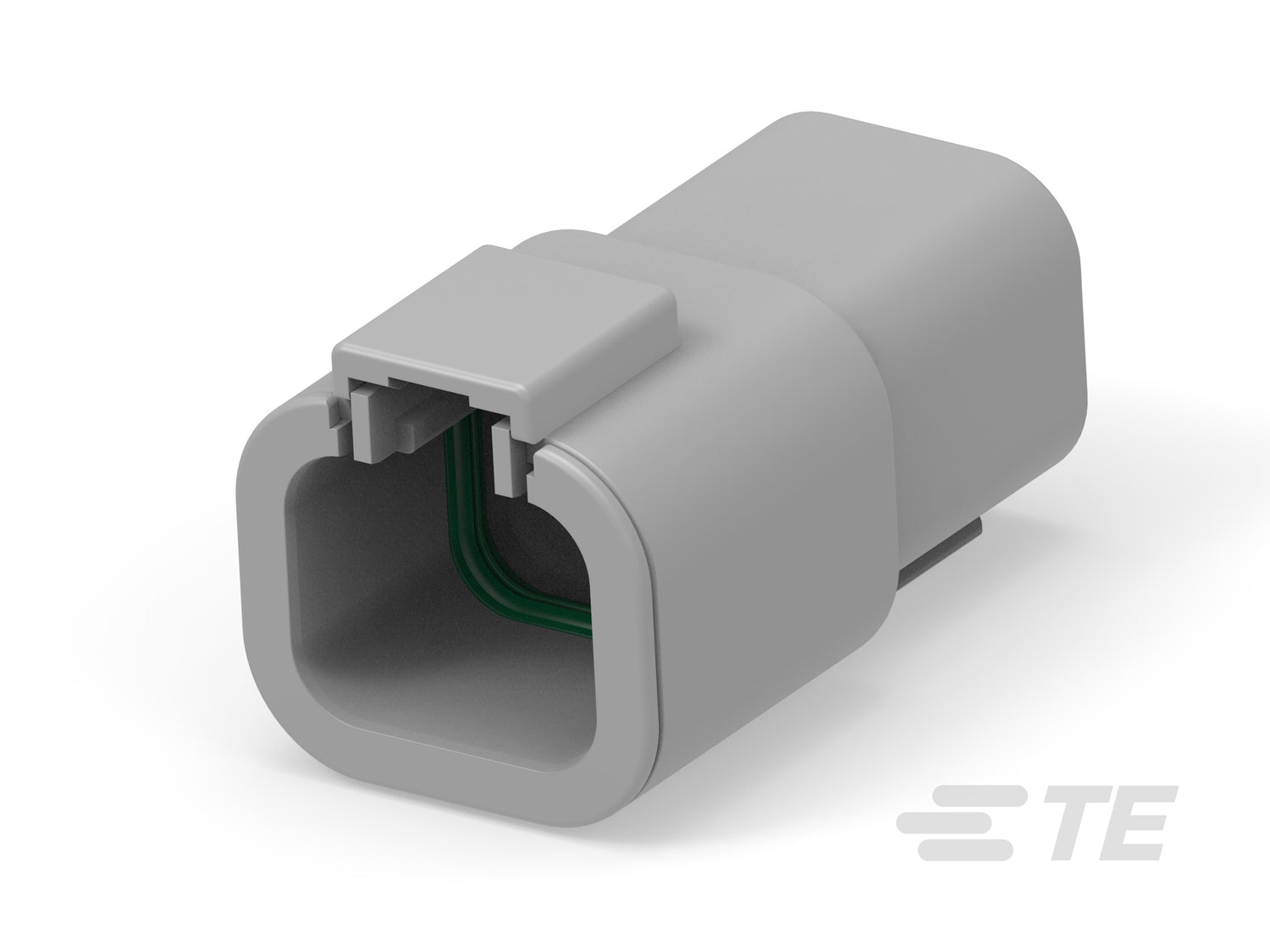

DTP04-4P Deutsch DTP 4-Way Receptacle Housing - Pin
DTP04-4P is a DEUTSCH DT connector built for reliable performance in demanding environments.
Used across heavy duty vehicles and exposed harness runs where durability matters. A straightforward solution when you need consistent performance without compromise.
Quantity price breaks
Lead time on request
Lead time on request
Lead time on request
Lead time on request
Lead time on request
Lead time on request
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector seal code | N Seal |
| Number of positions | 4 |
| Number of rows | 2 |
| Contact current rating max | 25 A |
| Contact size | Size 12 |
| Contact type | Pin |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .134 – .17 in |
| Connector height | 1.86 in |
| Product length | 1.05 in |
| Product width | 1.06 in |
| Row to row spacing | .4 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 200 VDC |
| Centerline pitch | .264 in |
| Housing material | PA 66 GF15 |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Without |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
