Deutsch | SKU:
DTP04-4P-L012

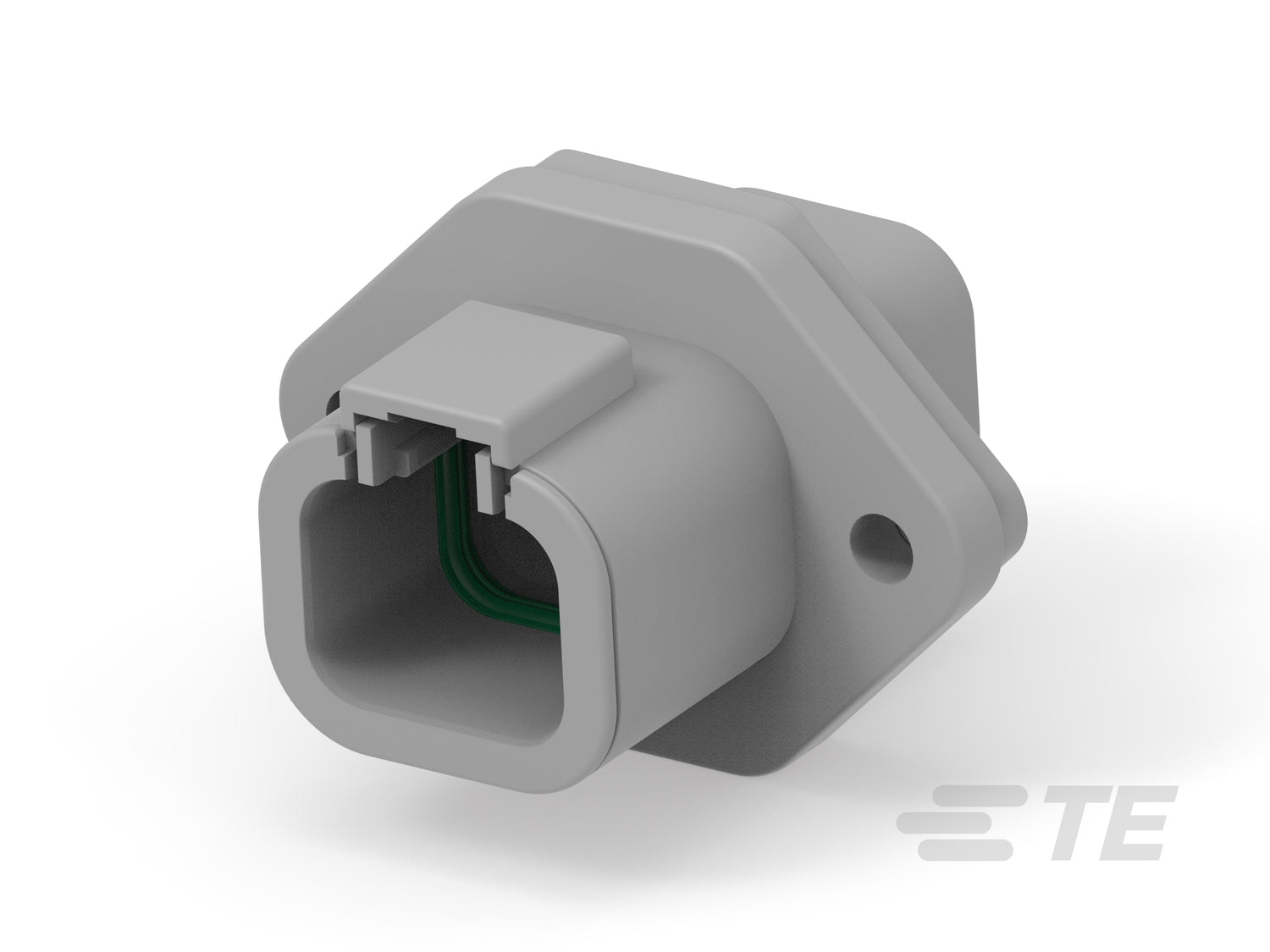

DTP04-4P-L012 - DT Series
DTP04-4P-L012 forms part of the DEUTSCH DT range, engineered for secure sealed connections in tough conditions.
Designed for off highway equipment and industrial systems where sealing integrity and positive engagement are essential. Ideal for dependable OEM level repairs and new builds.
Quantity price breaks
1+
$7.17/each
50+5% off
$6.81/each$7.17
100+10% off
$6.47/each$7.17
500+19% off
$5.82/each$7.17
1000+25% off
$5.38/each$7.17
DTP04-4P-L012 - DT Series
Regular price
$7.17
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Welded Flange |
| Connector seal code | N Seal |
| Number of positions | 4 |
| Number of rows | 2 |
| Contact current rating max | 25 A |
| Contact size | Size 12 |
| Contact type | Pin |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .134 – .17 in |
| Connector height | 1.86 in |
| Product length | 1.5 in |
| Product width | 2.1 in |
| Row to row spacing | .4 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 200 VDC |
| Centerline pitch | .264 in |
| Housing material | PA 66 GF15 |
| Compatible with agency standar | SAE J2030 |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarization |
| Strain relief | Without |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
