Deutsch | SKU:
DTV02-18PA

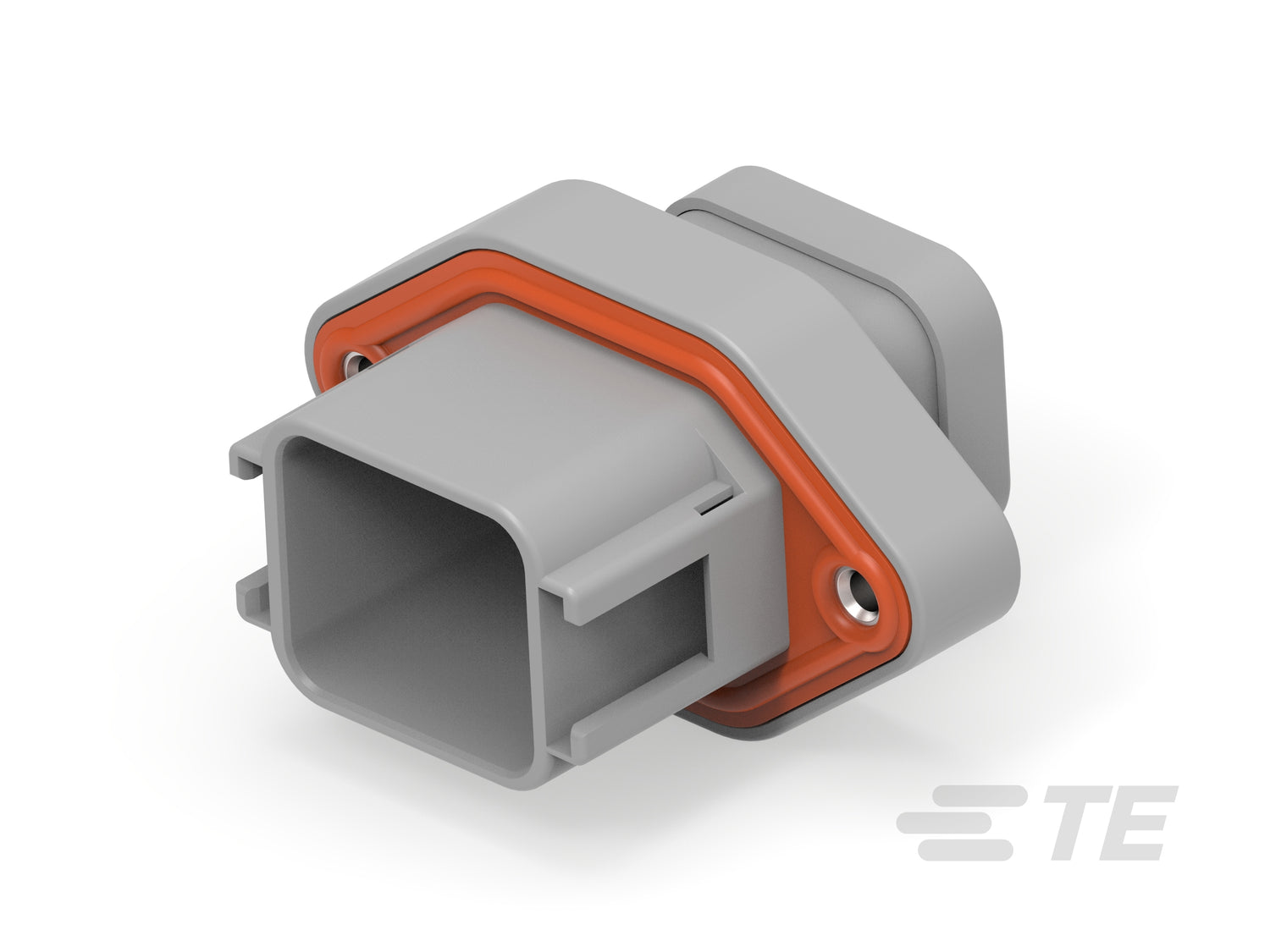

DTV02-18PA Deutsch DTV 18-Way Receptacle Housing - Pin, Key A
DTV02-18PA is a DEUTSCH DTV 18-way receptacle housing for pin contacts, configured with Key A.
The sealed housing suits vehicle and equipment harnesses, while Key A helps distinguish the required mating configuration and reduce connector selection errors during assembly or service.
Use DTV02-18PA where the required configuration is a DEUTSCH DTV 18-position pin receptacle with Key A.
- Series: DEUTSCH DTV
- Connector: Receptacle
- Positions: 18
- Contact type: Pin
- Key: A
Quantity price breaks
1+
$24.08/each
50+28% off
$17.41/each$24.08
100+28% off
$17.23/each$24.08
DTV02-18PA Deutsch DTV 18-Way Receptacle Housing - Pin, Key A
Regular price
$24.08
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Connector keying code | A |
| Primary product color | Gray |
| Number of positions | 18 |
| Number of rows | 3 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .088 – .145 in |
| Connector height | 1.786 in |
| Product length | 2.495 in |
| Product width | 3.194 in |
| Row to row spacing | .3 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Centerline pitch | .175 in |
| Housing material | PA GF |
| Ip rating | Not Tested |
| Ul flammability rating | Not Tested |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Keyed |
| Strain relief | With |
| Terminal position assurance | Yes |
| Circuit application | Power |
| Packaging method | Box |
| Packaging quantity | 96 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Rectangular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
