Deutsch | SKU:
HD10-9-96PE

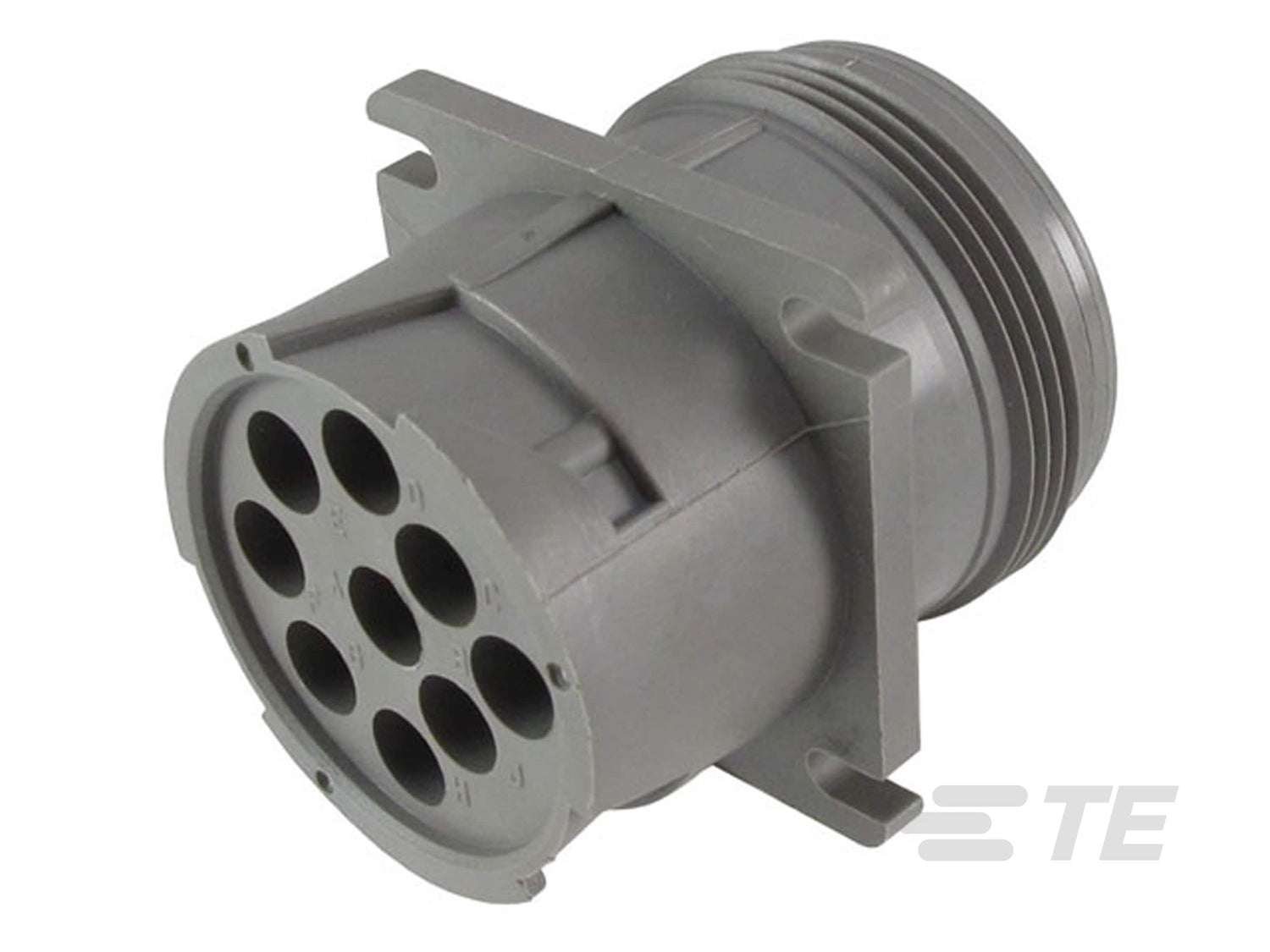

HD10-9-96PE - HD Series
HD10-9-96PE is a genuine Deutsch connector from the DEUTSCH HD range, built in a 9 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH HD
- Positions: 9
- Ingress protection: IP6K9K
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$11.87/each
50+10% off
$10.69/each$11.87
100+19% off
$9.62/each$11.87
HD10-9-96PE - HD Series
Regular price
$11.87
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Number of positions | 9 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .053 – .12 in |
| Connector height | 1.66 in |
| Product length | 1.44 in |
| Product width | 1.44 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Plastic |
| Ip rating | IP6K9K |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Rib |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
