Deutsch | SKU:
HD14-6-96P

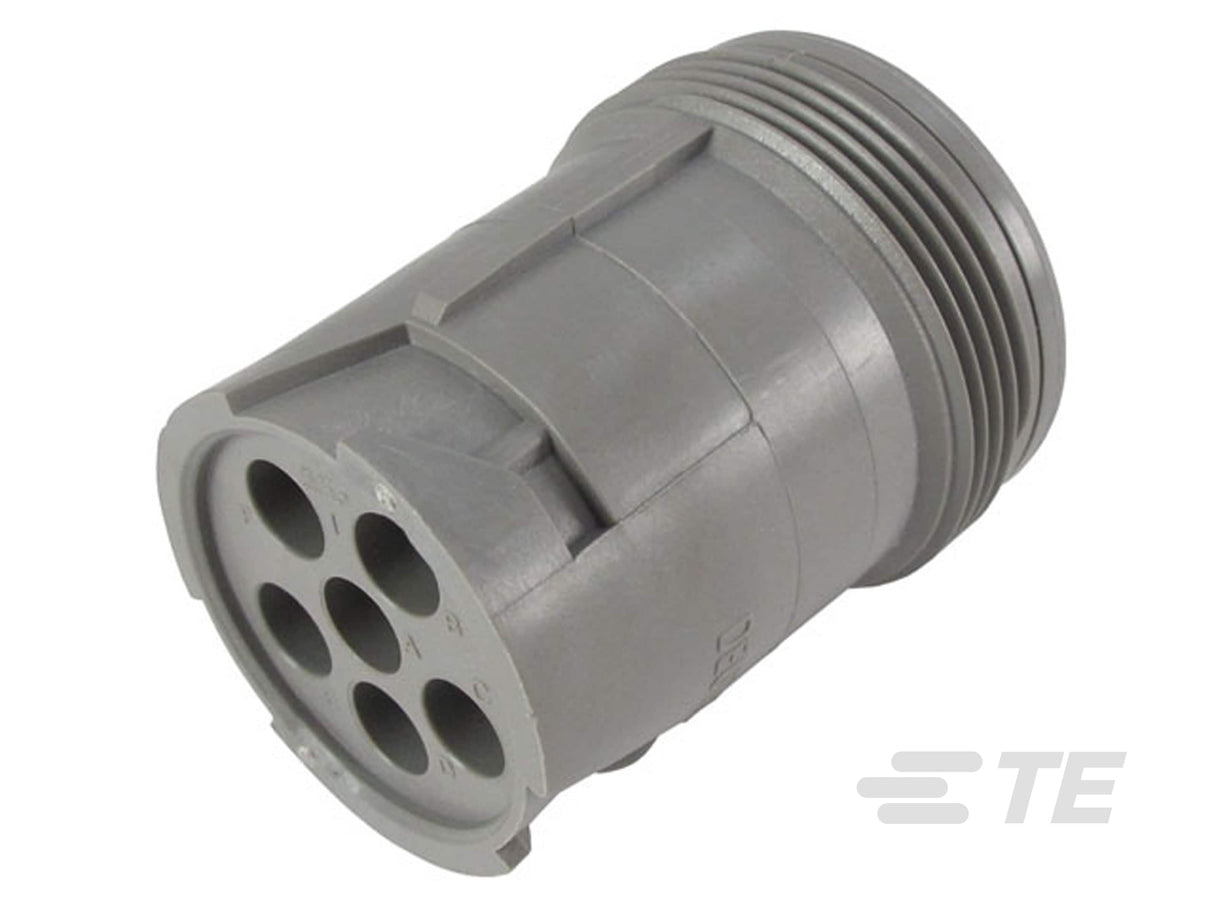

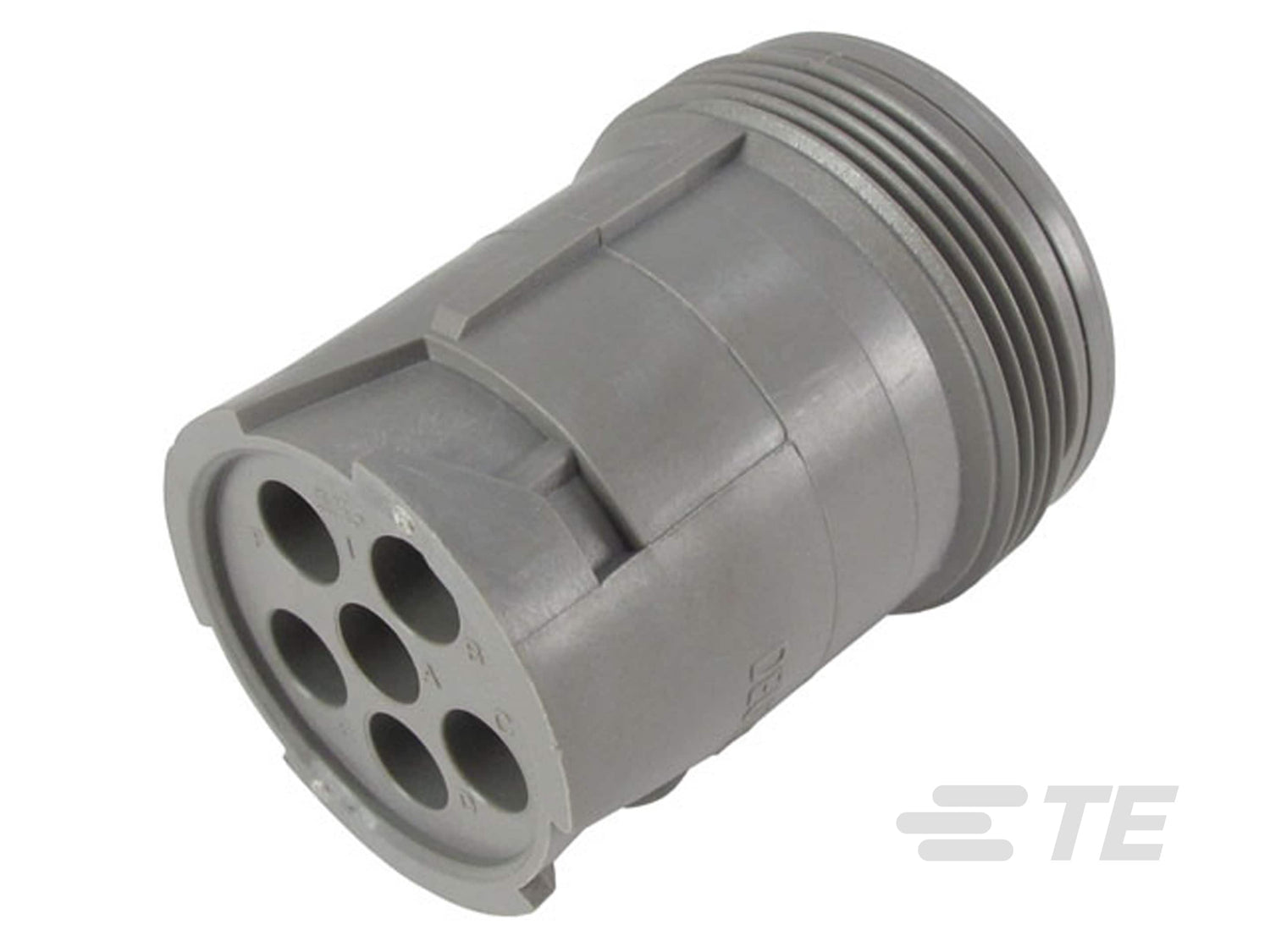

HD14-6-96P - HD Series
HD14-6-96P is a DEUTSCH DT connector built for reliable performance in demanding environments.
Well suited to commercial vehicles, agricultural machinery and plant equipment where vibration, moisture and dust are everyday challenges. A practical choice for professional harness builds.
Quantity price breaks
1+
$6.98/each
50+10% off
$6.28/each$6.98
100+19% off
$5.66/each$6.98
HD14-6-96P - HD Series
Regular price
$6.98
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Gray |
| Blank cavity position | 0 |
| Connector modification | Threaded Rear |
| Number of positions | 6 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .1 – .15 in |
| Connector height | 1.64 in |
| Product length | 1.14 in |
| Product width | 1.14 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Plastic |
| Ip rating | IP6K9K |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarizing Rib |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
