Deutsch | SKU:
HD16-9-1939S-P080

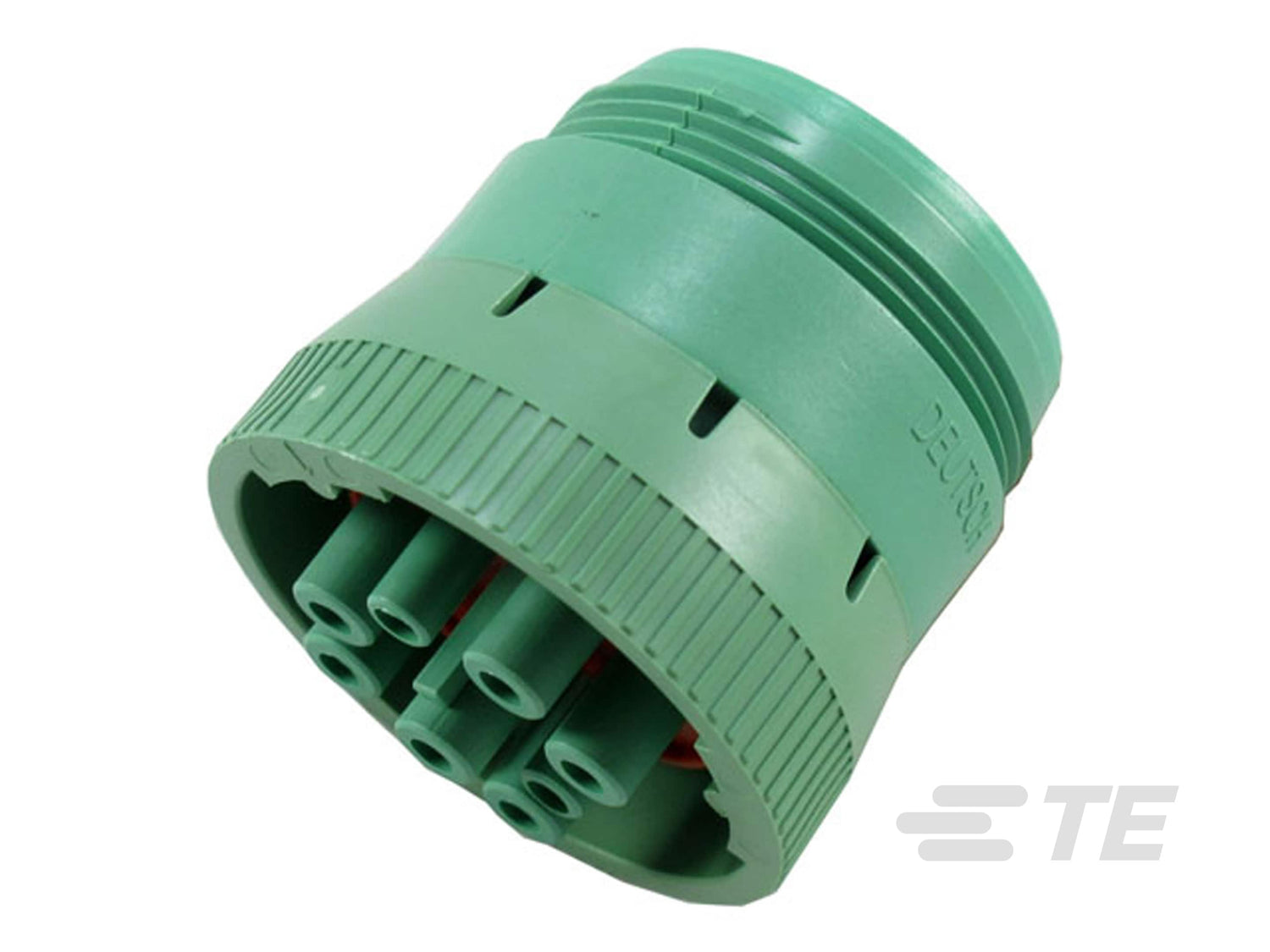

HD16-9-1939S-P080 Deutsch HD10 9-Way Plug – J1939 Type 2
HD16-9-1939S-P080 is a DEUTSCH HD10 9-way plug housing for socket contacts, configured with J1939 Type 2.
It is intended for sealed circular harness connections in heavy-duty vehicles, off-highway equipment and machinery, where connector size, contact orientation and rear-interface details must match the mating assembly.
Use HD16-9-1939S-P080 where the required configuration is a DEUTSCH HD10 9-position socket plug with J1939 Type 2.
- Series: DEUTSCH HD10
- Connector: Plug
- Positions: 9
- Contact type: Socket
- Application: J1939 Type 2
- Modification: P080
Quantity price breaks
1+
$16.57/each
50+5% off
$15.79/each$16.57
100+9% off
$15.03/each$16.57
500+14% off
$14.32/each$16.57
1000+18% off
$13.64/each$16.57
700 in stock — lead time on request for 1000+
HD16-9-1939S-P080 Deutsch HD10 9-Way Plug – J1939 Type 2
Regular price
$16.57
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Green |
| Blank cavity position | 0 |
| Connector modification | J1939 Type II |
| Number of positions | 9 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .1 – .15 in |
| Connector height | 1.63 in |
| Product length | 1.59 in |
| Product width | 1.59 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF15 |
| Ip rating | IP6K9K |
| Ul flammability rating | 20mm Flame Test per Standard UL-94 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Polarizing Rib |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
