Deutsch | SKU:
HD34-24-21SN
HD34-24-21SN - HD Series

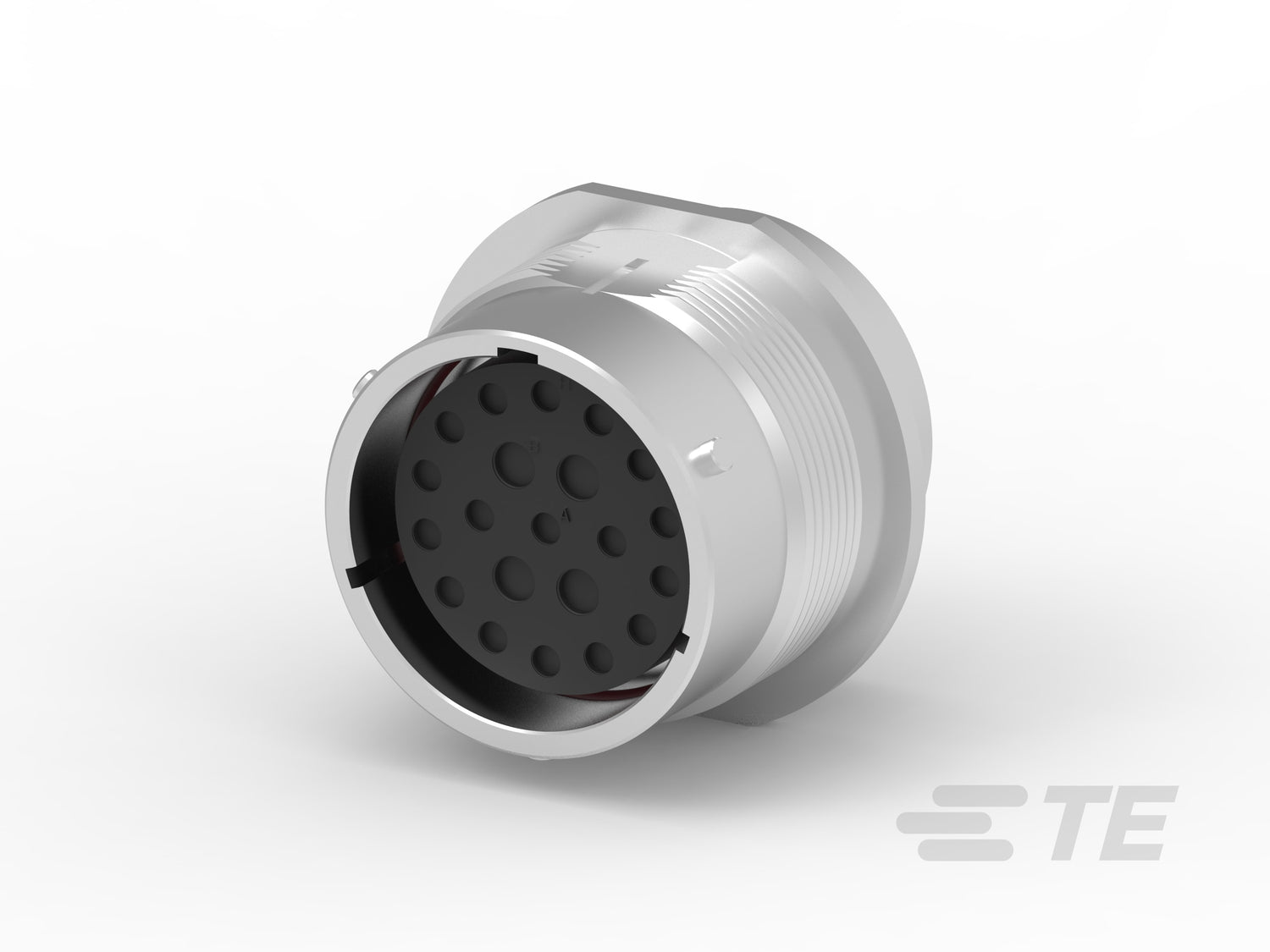

HD34-24-21SN is a genuine Deutsch Deutsch HD series 21-way receptacle connector housing designed for dependable performance in harsh environment wiring looms.
Operating temperature range: -67 – 257 °F.
Key features
- 21-way configuration
- Operating temperature: -67 – 257 °F
- Compliance: EU RoHS Compliant
- Compliance: EU ELV Compliant
- Contact size: Size 16
Specifications
| Series | DEUTSCH HD |
|---|---|
| Connector type | Wire & Cable |
| Positions | 21 |
| Contact size | Size 16 |
| Contact type | Socket |
| Operating temperature | -67 – 257 °F |
| Terminal position assurance | No |
| Connector position assurance | No |
| RoHS | EU RoHS Compliant |
| ELV | EU ELV Compliant |
Typical applications include off-highway equipment, commercial vehicles, marine systems, motorsport, and industrial machinery where vibration, dust and moisture resistance matter.
Technical documents
- ARRANGEMENT OF CONTACT LOCATION OR HDP20 AND HD30 SERIES CONNECTORS SHELL SIZE 24
- RECEPTACLE CONNECTOR SHELL SIZE 24 BAYONET COUPLING HD30 SERIES
- 3D PDF
Need help matching contacts, wedgelocks or compatible housings? Speak to our team and we’ll help you select the correct Deutsch DT parts.
Quantity price breaks
1+
$25.93/each
50+10% off
$23.33/each$25.93
HD34-24-21SN - HD Series
Regular price
$25.93
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector seal code | N Seal |
| Number of positions | 21 |
| Contact current rating max | 25 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .134 – .17 in |
| Connector height | 1.64 in |
| Product length | 2 in |
| Product width | 1.87 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
