Deutsch | SKU:
HD36-18-14SE-L005

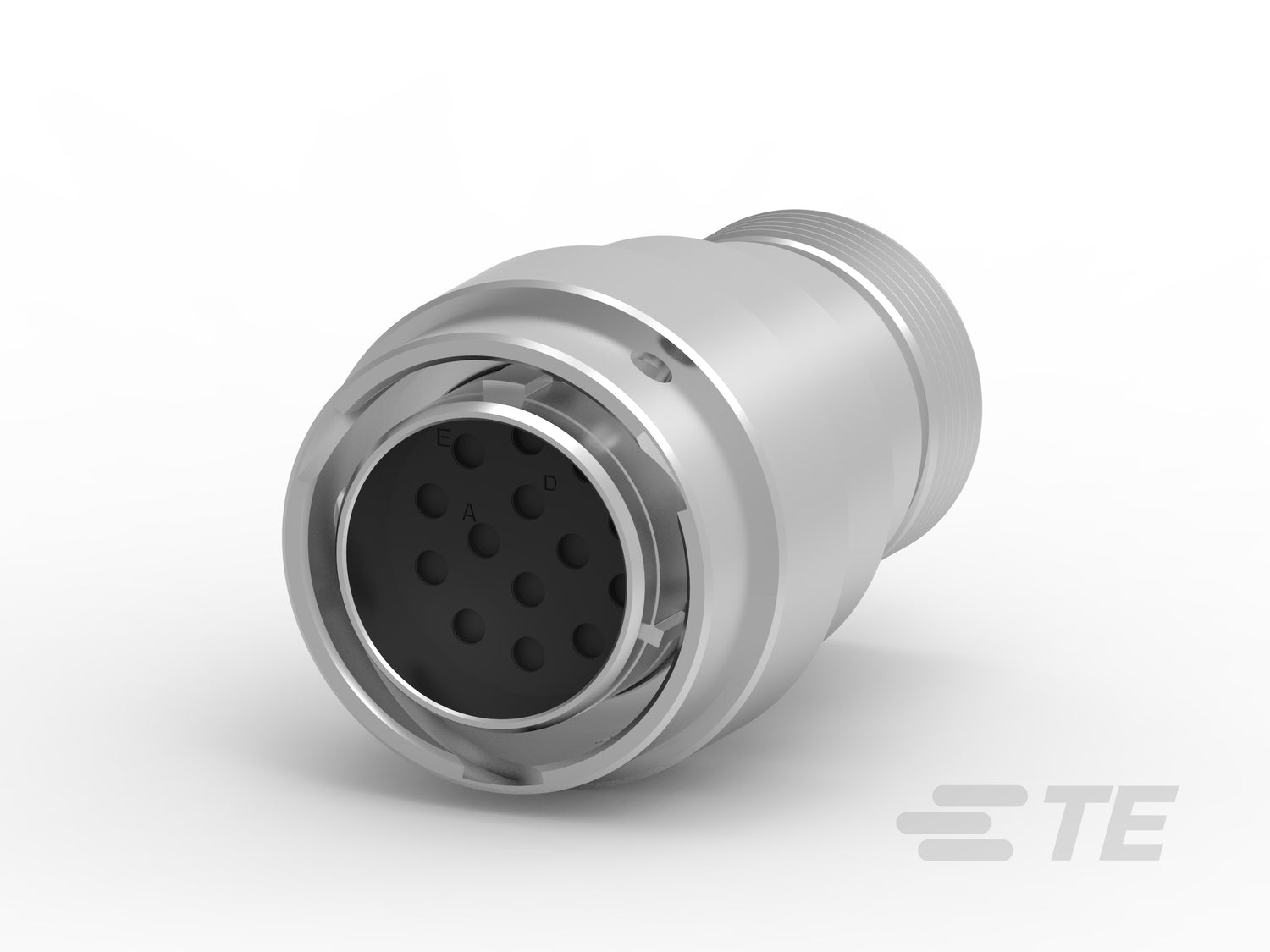

HD36-18-14SE-L005 - HD Series
HD36-18-14SE-L005 is a genuine Deutsch plug from the DEUTSCH HD range, built in a 14 way configuration. Designed for tough environments where secure, repeatable mating matters.
- Series: DEUTSCH HD
- Positions: 14
- Contact type: Socket
- Ingress protection: IP67
- Operating temperature: -67 – 257 °F
Well suited to heavy duty harness builds across off highway, industrial and plant equipment applications.
Quantity price breaks
1+
$28.62/each
HD36-18-14SE-L005 - HD Series
Regular price
$28.62
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector seal code | E Seal |
| Number of positions | 14 |
| Contact current rating max | 13 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .063 in |
| Compatible insulation diameter | .055 – .149 in |
| Connector height | 2.57 in |
| Product length | 1.69 in |
| Product width | 1.69 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 120 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Plug |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
