Deutsch | SKU:
HD36-24-16SN-059

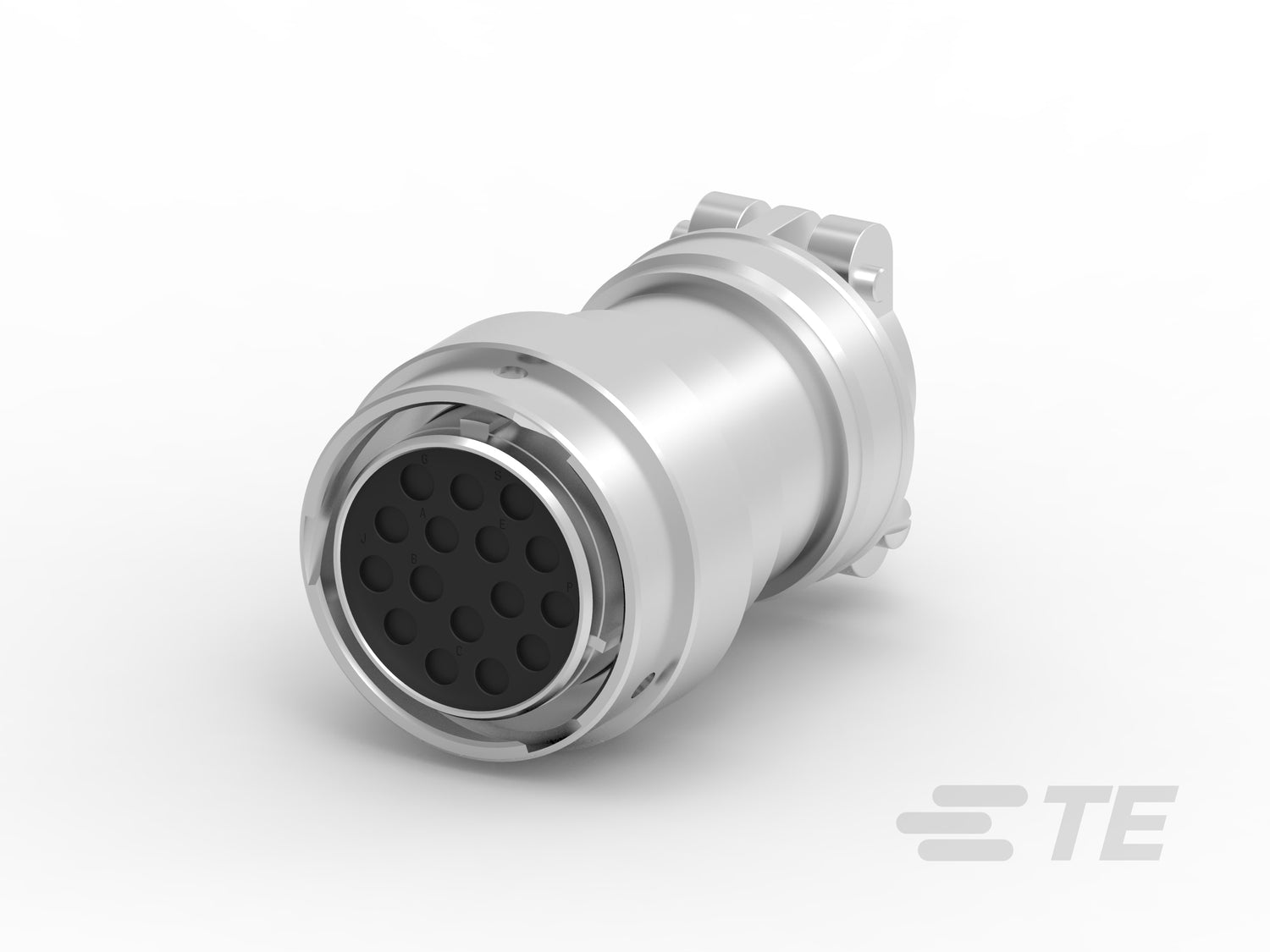

HD36-24-16SN-059 - HD Series
PLG,16P,AL,N, CBL CLMP BT, DRAIN,12,S,MC
HD36-24-16SN-059 is a genuine Deutsch HD plug used in rugged wiring looms where reliability matters. It is designed for demanding on- and off-highway environments, with secure locking and dependable sealing.
- Series: Deutsch HD
- Positions: 16
- IP rating: IP67
- Operating temperature: -67 – 257 °F
- Sealable: Yes
- Serviceable: Yes
Typical applications
- Commercial vehicle, truck and bus
- Off-highway and agricultural machinery
- Construction and plant equipment
- Marine and industrial power systems
Why buy from Deutsch DT Connectors
- Specialist distributor support
- Quality-checked, genuine components
- Fast dispatch and reliable supply
Quantity price breaks
1+
$37.28/each
HD36-24-16SN-059 - HD Series
Regular price
$37.28
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector modification | Cable Clamp |
| Connector seal code | N Seal |
| Number of positions | 16 |
| Contact current rating max | 25 A |
| Contact size | Size 12 |
| Contact type | Socket |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 3.19 in |
| Product length | 1.94 in |
| Product width | 1.94 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | No |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
