HD36-24-19PE-059

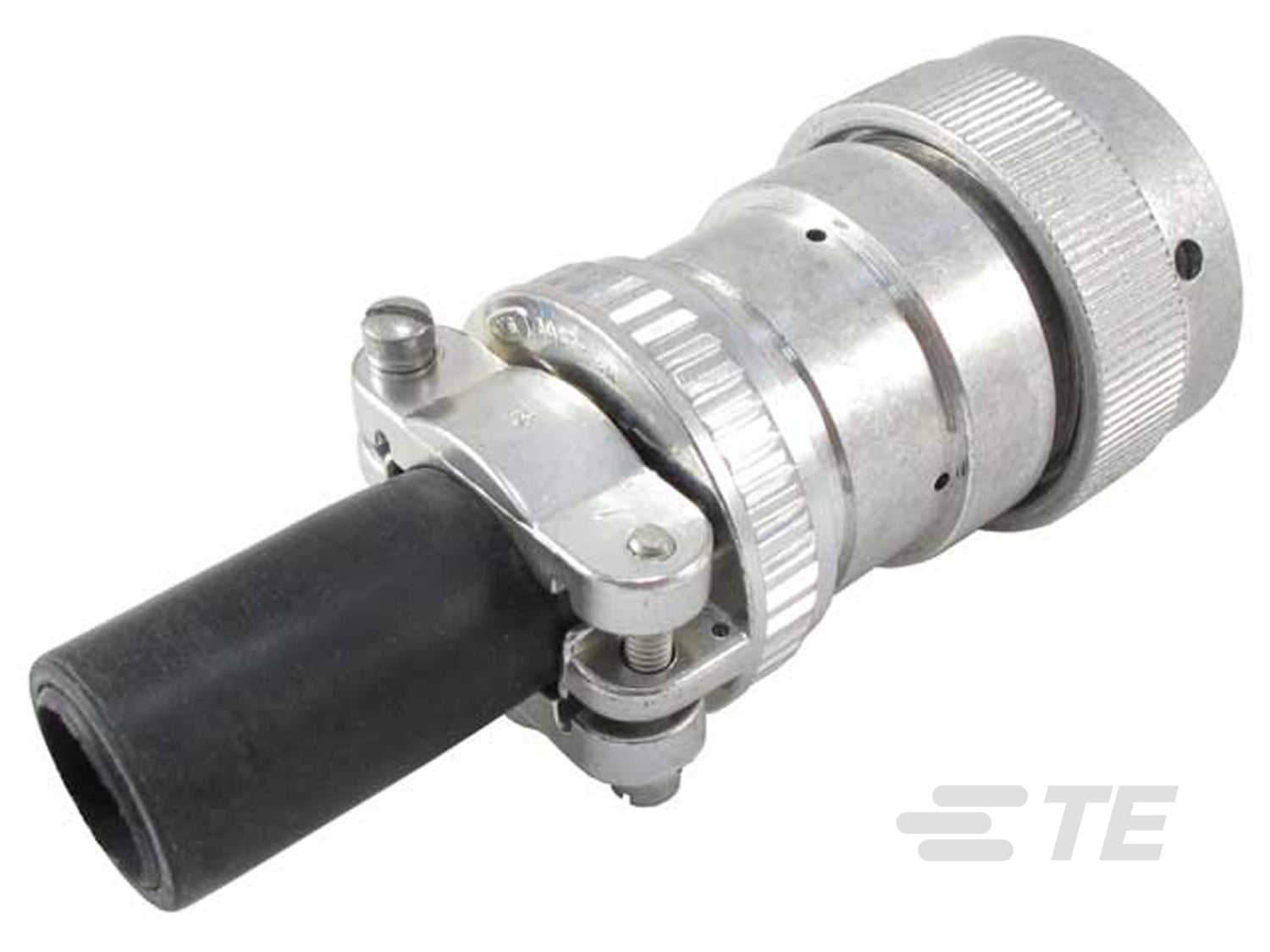

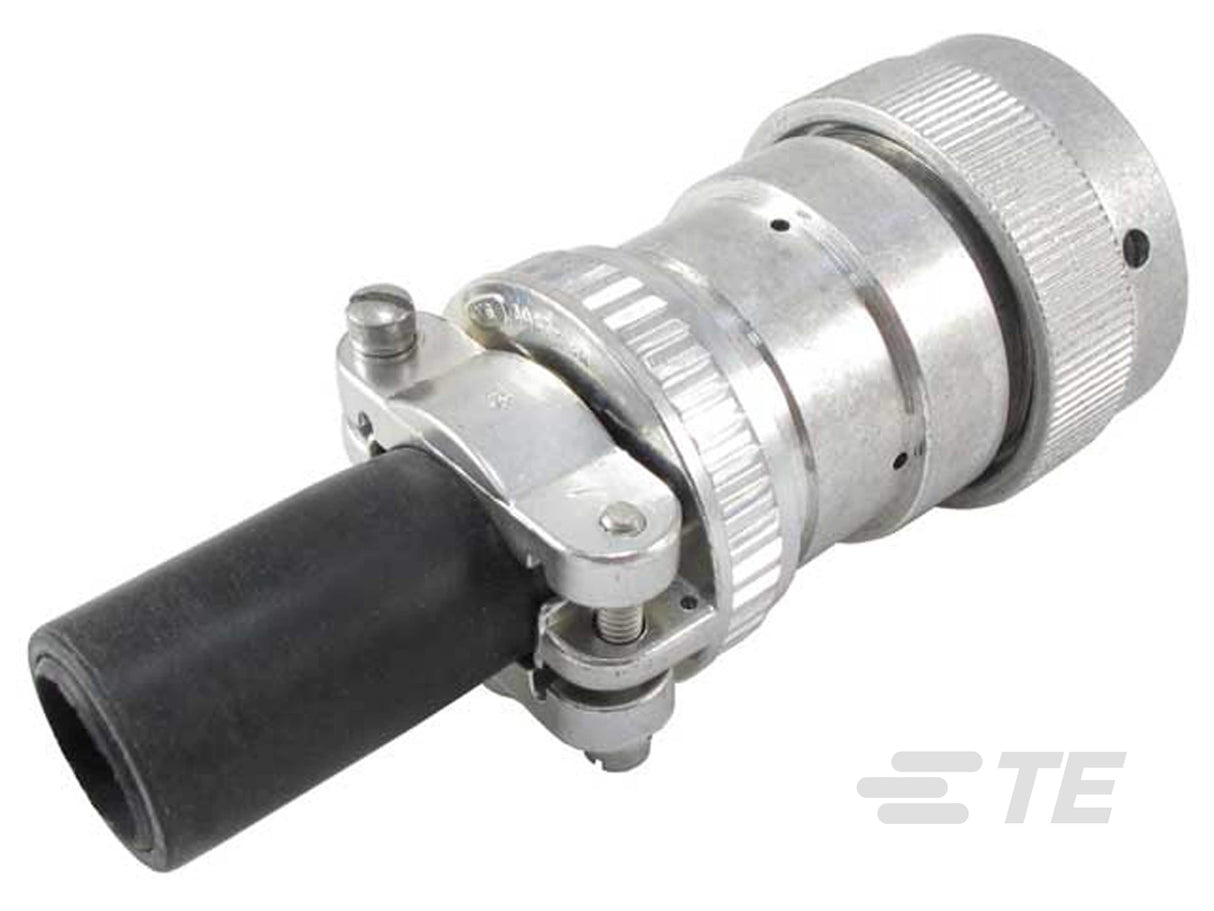

HD36-24-19PE-059 Deutsch HD30 Size 24, 19-Way Plug – Pins (E-Seal, Cable Adapter)
HD36-24-19PE-059 is a DEUTSCH HD30 Size 24 19-way plug housing for pin contacts, configured with E-seal and 059 cable adapter.
It is intended for sealed circular harness connections in heavy-duty vehicles, off-highway equipment and machinery, where connector size, contact orientation and rear-interface details must match the mating assembly.
Use HD36-24-19PE-059 where the required configuration is a DEUTSCH HD30 Size 24 19-position pin plug with E-seal and 059 cable adapter.
- Series: DEUTSCH HD30
- Connector: Plug
- Positions: 19
- Contact type: Pin
- Shell size: 24
- Seal: E-Seal
- Rear interface: Cable Adapter
- Modification: 059
Quantity price breaks
1+
$51.04/each
50+5% off
$48.61/each$51.04
100+9% off
$46.29/each$51.04
HD36-24-19PE-059 Deutsch HD30 Size 24, 19-Way Plug – Pins (E-Seal, ...
Regular price
$51.04
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector modification | Cable Clamp |
| Connector seal code | E Seal |
| Number of positions | 19 |
| Contact current rating max | 25 A |
| Contact size | Size 16 |
| Contact type | Pin |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .097 – .158 in |
| Connector height | 3.19 in |
| Product length | 1.94 in |
| Product width | 1.94 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
