HD36-24-21SN-059

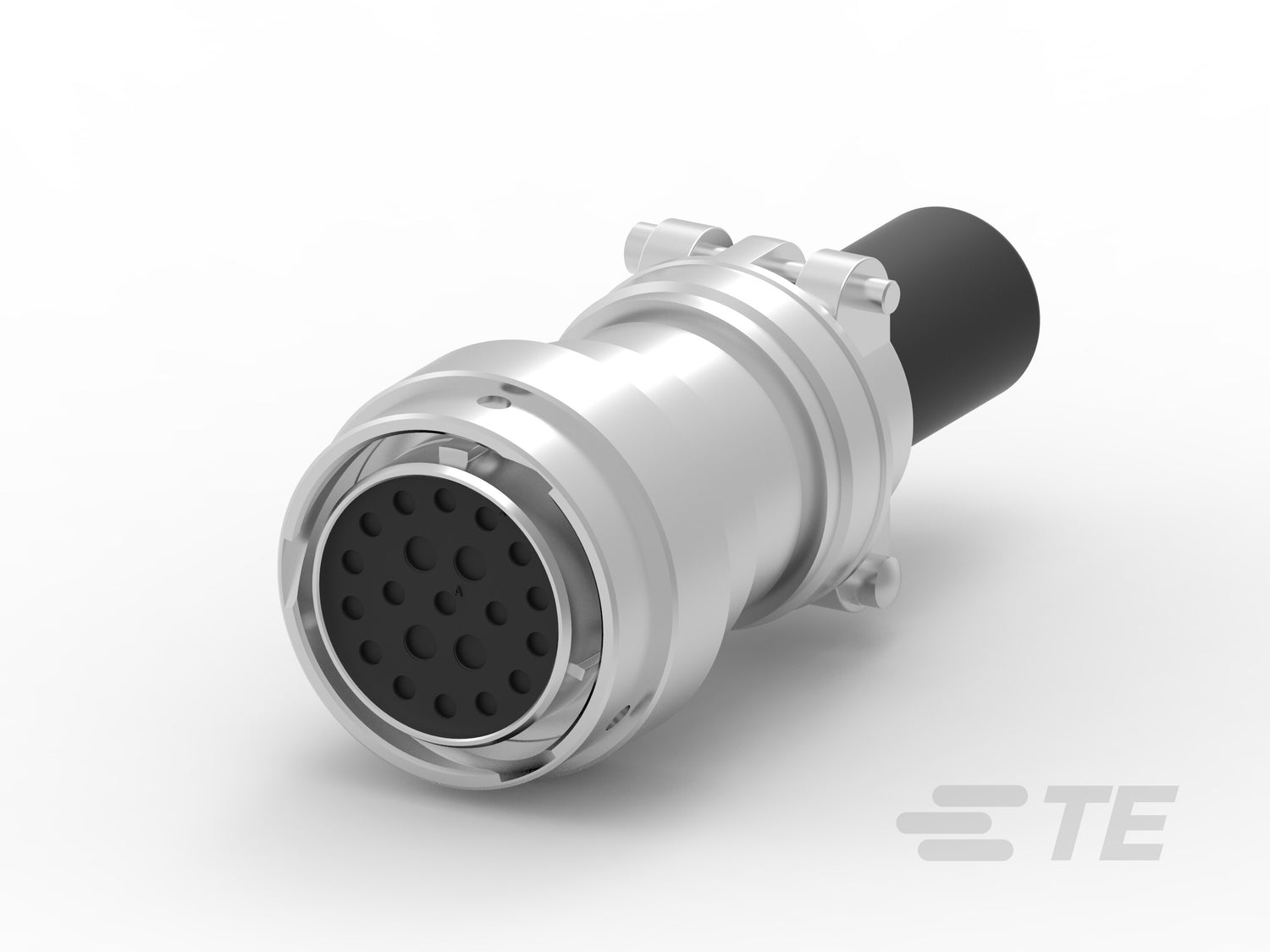

HD36-24-21SN-059 Deutsch HD30 Size 24, 21-Way Plug – Sockets (N-Seal, Cable Adapter)
HD36-24-21SN-059 is a DEUTSCH HD30 Size 24 21-way plug housing for socket contacts, configured with N-seal and 059 cable adapter.
It is intended for sealed circular harness connections in heavy-duty vehicles, off-highway equipment and machinery, where connector size, contact orientation and rear-interface details must match the mating assembly.
Use HD36-24-21SN-059 where the required configuration is a DEUTSCH HD30 Size 24 21-position socket plug with N-seal and 059 cable adapter.
- Series: DEUTSCH HD30
- Connector: Plug
- Positions: 21
- Contact type: Socket
- Shell size: 24
- Seal: N-Seal
- Rear interface: Cable Adapter
- Modification: 059
Quantity price breaks
1+
$42.95/each
50+5% off
$40.90/each$42.95
13 in stock — lead time on request for 50+
100+9% off
$38.95/each$42.95
13 in stock — lead time on request for 100+
HD36-24-21SN-059 Deutsch HD30 Size 24, 21-Way Plug – Sockets (N-Sea...
Regular price
$42.95
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector modification | Cable Clamp |
| Connector seal code | N Seal |
| Number of positions | 21 |
| Contact current rating max | 25 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 3.19 in |
| Product length | 1.94 in |
| Product width | 1.94 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Cable Mount (Free-Hanging) |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | With |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
