Deutsch | SKU:
HD36-24-9PN

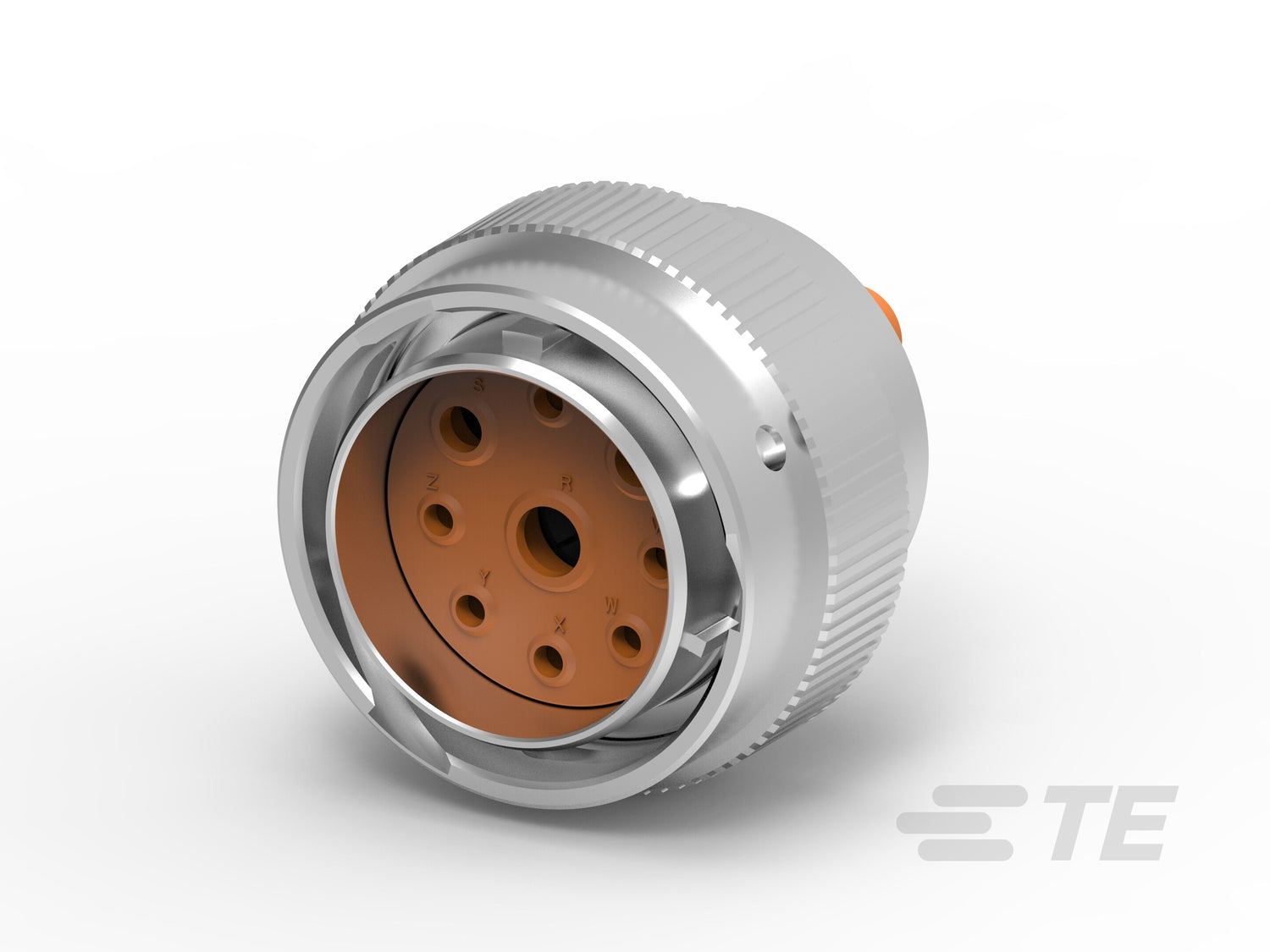

HD36-24-9PN - HD Series
HD36-24-9PN is a DEUTSCH DT connector built for reliable performance in demanding environments.
Well suited to commercial vehicles, agricultural machinery and plant equipment where vibration, moisture and dust are everyday challenges. A practical choice for professional harness builds.
Quantity price breaks
1+
$20.71/each
HD36-24-9PN - HD Series
Regular price
$20.71
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector seal code | N Seal |
| Number of positions | 9 |
| Contact current rating max | 60 A |
| Contact size | Size 4 |
| Contact type | Pin |
| Mating pin diameter | .225 in |
| Compatible insulation diameter | .14 – .204 in |
| Connector height | 1.54 in |
| Product length | 1.94 in |
| Product width | 1.94 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Wire |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
