Deutsch | SKU:
HD36-24-9PN-072

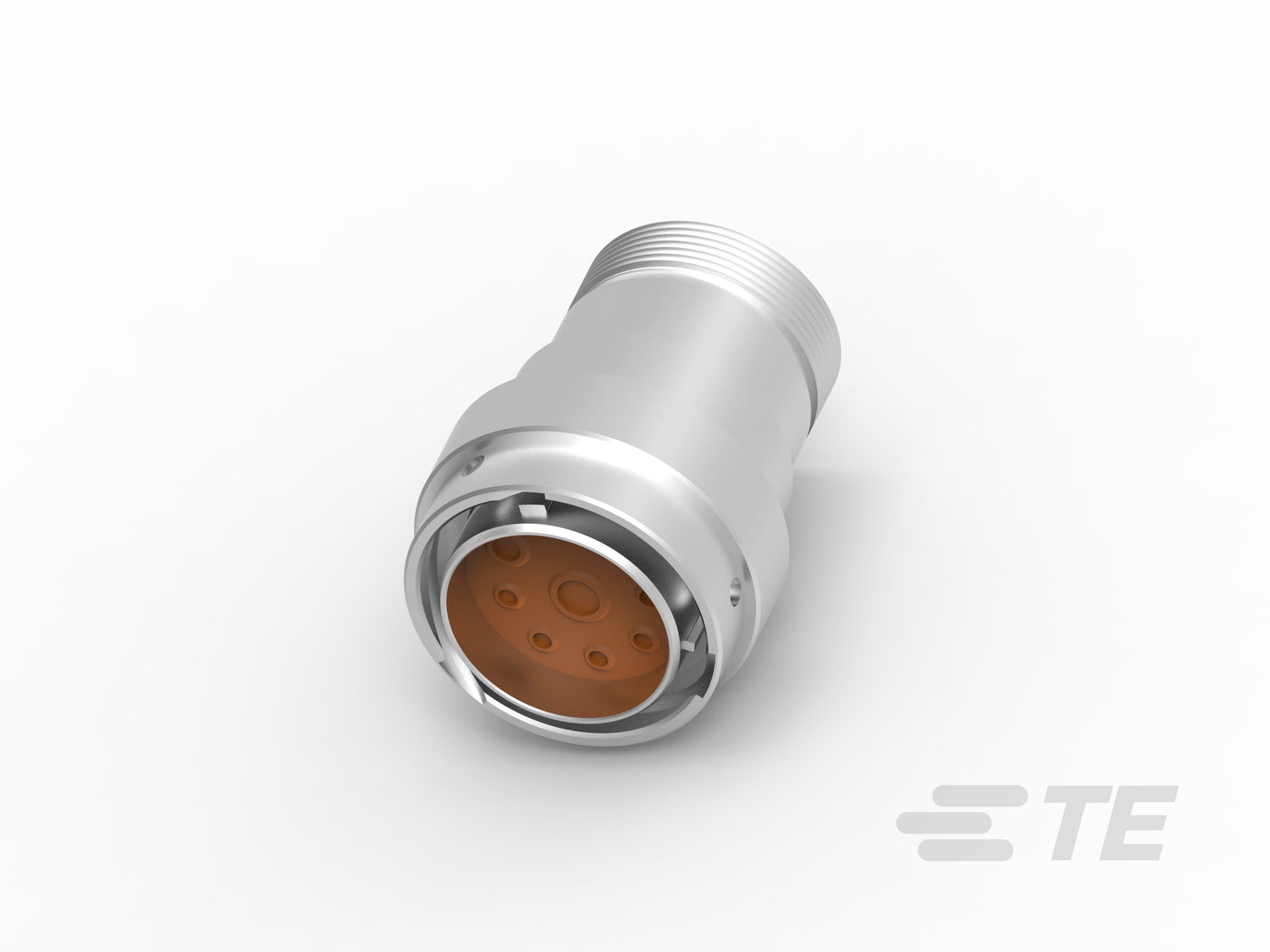

HD36-24-9PN-072 - HD Series
HD36-24-9PN-072 forms part of the DEUTSCH DT range, engineered for secure sealed connections in tough conditions.
Used across heavy duty vehicles and exposed harness runs where durability matters. A straightforward solution when you need consistent performance without compromise.
Quantity price breaks
1+
$40.15/each
50+10% off
$36.14/each$40.15
100+19% off
$32.53/each$40.15
HD36-24-9PN-072 - HD Series
Regular price
$40.15
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Blank cavity position | 0 |
| Connector modification | Threaded Adapter |
| Connector seal code | N Seal |
| Number of positions | 9 |
| Contact current rating max | 60 A |
| Contact size | Size 4 |
| Contact type | Pin |
| Mating pin diameter | .095 in |
| Compatible insulation diameter | .28 – .292 in |
| Connector height | 2.57 in |
| Product length | 1.69 in |
| Product width | 1.69 in |
| Nominal voltage architecture | 24 V |
| Operating voltage | 250 VDC |
| Housing material | Aluminum Alloy |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Guide Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Package |
| Packaging quantity | 1 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Plug |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Integrated in Housing |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
