Deutsch | SKU:
HDP26-24-19SN-L015

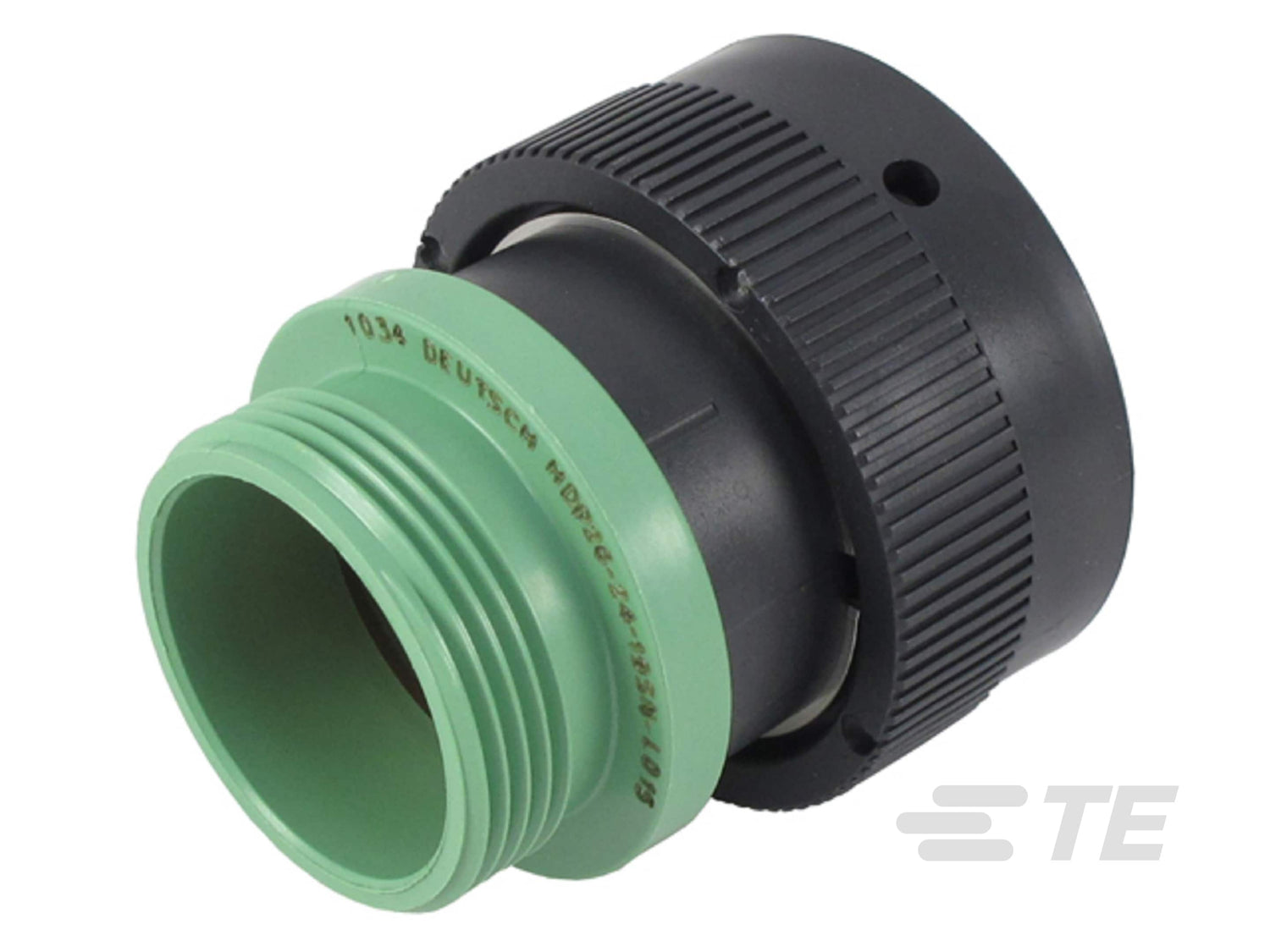

HDP26-24-19SN-L015 Deutsch HDP20 Size 24 19-Way Socket Plug - N-Seal, Threaded Adapter
HDP26-24-19SN-L015 is a DEUTSCH HDP20 Size 24 19-way plug housing for socket contacts, configured with N-seal and L015 threaded adapter.
It is intended for sealed circular harness connections in heavy-duty vehicles, off-highway equipment and machinery, where connector size, contact orientation and rear-interface details must match the mating assembly.
Use HDP26-24-19SN-L015 where the required configuration is a DEUTSCH HDP20 Size 24 19-position socket plug with N-seal and L015 threaded adapter.
- Series: DEUTSCH HDP20
- Connector: Plug
- Positions: 19
- Contact type: Socket
- Shell size: 24
- Seal: N-Seal
- Rear interface: Threaded Adapter
- Modification: L015
Quantity price breaks
1+
$43.87/each
50+60% off
$17.66/each$43.87
100+62% off
$16.82/each$43.87
HDP26-24-19SN-L015 Deutsch HDP20 Size 24 19-Way Socket Plug - N-Sea...
Regular price
$43.87
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Threaded Adapter |
| Connector seal code | N Seal |
| Number of positions | 19 |
| Contact current rating max | 25 A |
| Contact size | Size 16 |
| Contact type | Socket |
| Mating pin diameter | .094 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 2.18 in |
| Product length | 1.95 in |
| Product width | 1.95 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 40 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
