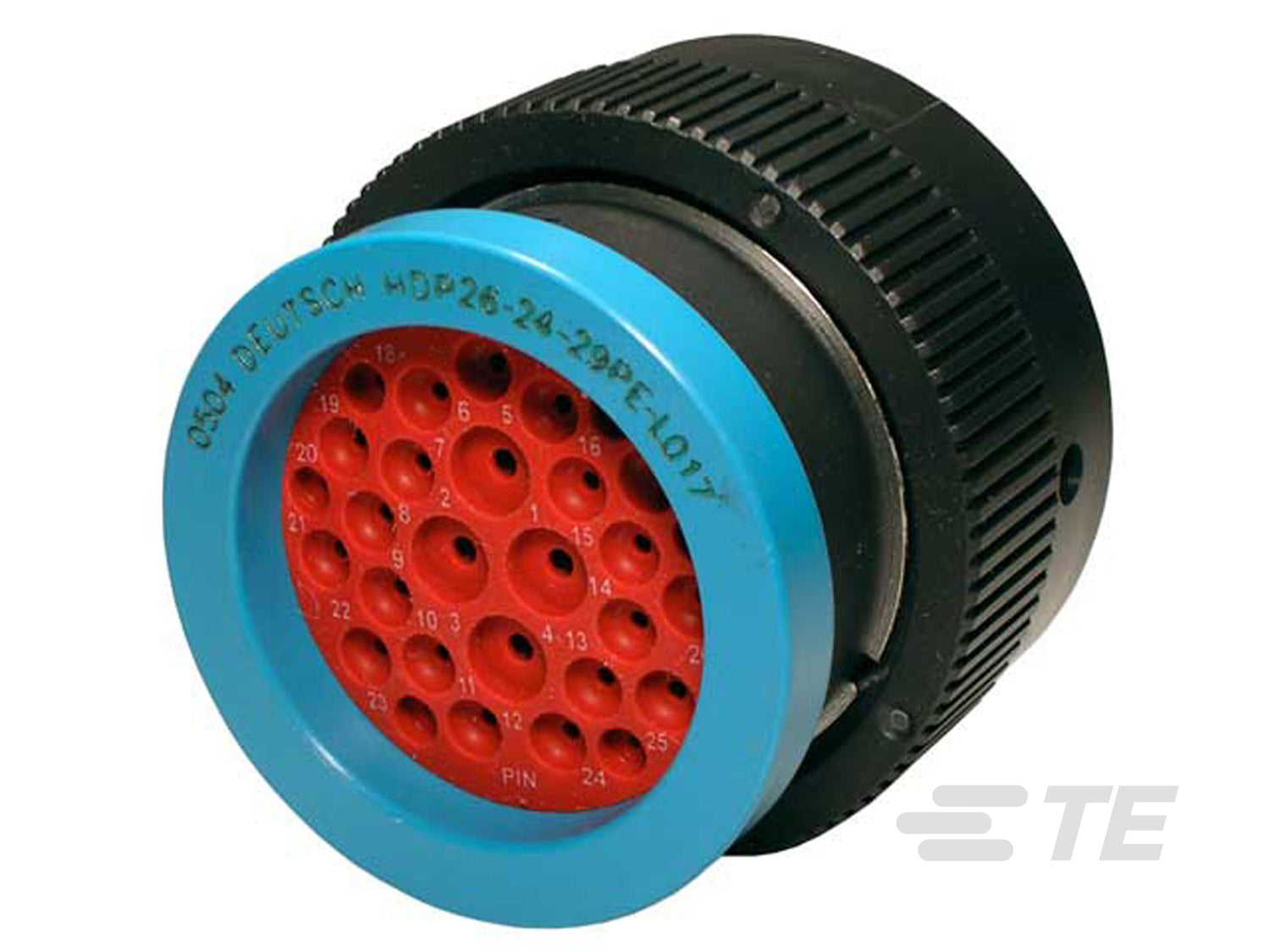

HDP26-24-29PE-L017 Deutsch HDP20 Shell 24 29-Way Pin Plug Housing
HDP26-24-29PE-L017 Deutsch HDP20 Size 24 29-Way Plug is a black sealed plug housing for pin contacts, with an E-seal, L017 ring adapter and a mixed insert using nineteen Size 16, six Size 20 and four Size 12 contact cavities.
The 29-position housing supports up to 250 V, with contact ratings of 7.5 A, 13 A and 25 A according to contact size, plus IP67 protection and a -55 to 125°C operating range.
Choose HDP26-24-29PE-L017 when a Size 24 HDP20 29-way pin plug is required specifically with the E-seal and L017 ring-adapter rear interface rather than a standard or threaded-adapter configuration.
Specifications
- Series: DEUTSCH HDP20
- Connector: Plug housing
- Positions: 29
- Contact type: Pin
- Contact arrangement: 19 x Size 16 / 6 x Size 20 / 4 x Size 12
- Shell size: 24
- Seal: E-Seal
- Rear interface: Ring adapter
- Modification: L017
- Operating voltage: 250 V
- Max contact current: 7.5 / 13 / 25 A, by contact size
- IP rating: IP67
- Operating temperature: -55 to 125°C
Quantity price breaks
70 in stock — lead time on request for 100+
HDP26-24-29PE-L017 Deutsch HDP20 Shell 24 29-Way Pin Plug Housing
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Ring Adapter |
| Connector seal code | E Seal |
| Number of positions | 29 |
| Contact current rating max | 25 A |
| Contact size | Size 20 |
| Contact type | Pin |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .055 – .15 in |
| Connector height | 1.67 in |
| Product length | 1.95 in |
| Product width | 1.95 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 40 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Male Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
