Deutsch | SKU:
HDP26-24-29SE-L017
HDP26-24-29SE-L017 - HD Series

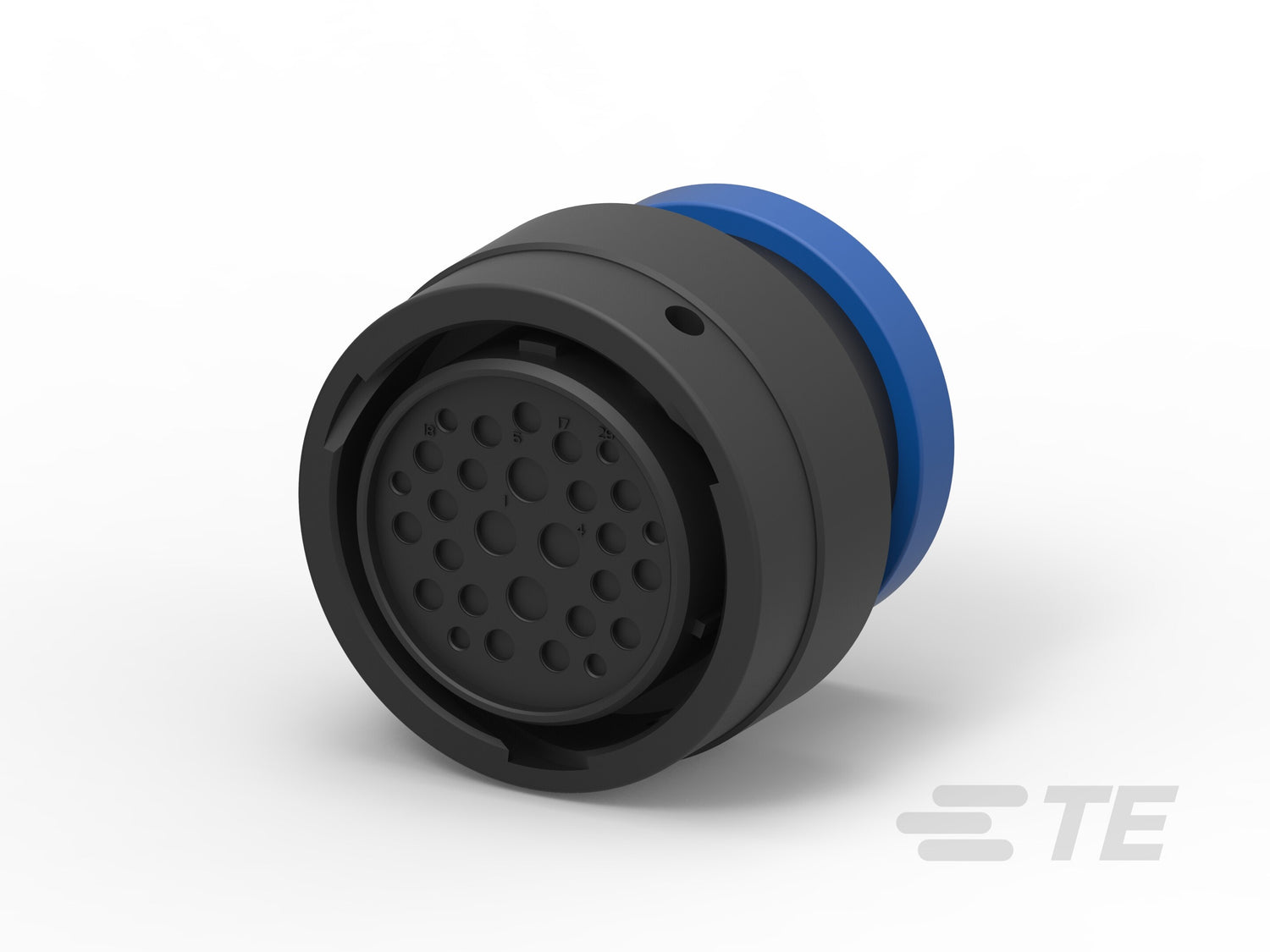

HDP26-24-29SE-L017 is a genuine Deutsch plug configured as DEUTSCH HD, 29 way, socket contacts, ring coupling, contact size 12/16/20, black. For heavy duty connectivity, it delivers secure engagement and proper sealing.
- IP rating: IP67
- Contacts: Socket
- Temperature range: -67 – 257 °F
- Colour: Black
- Housing material: PA 66 GF
- Series: DEUTSCH HD
- Positions: 29
- Contact size: 12/16/20
Where it fits best: outdoor installations, washdown areas, marine topside.
It is made to cope with vibration, moisture and day to day knocks. If you want OEM grade confidence rather than guesswork, this is the right direction.
Quantity price breaks
1+
$21.08/each
50+5% off
$20.02/each$21.08
100+10% off
$19.02/each$21.08
500+19% off
$17.12/each$21.08
1000+25% off
$15.84/each$21.08
HDP26-24-29SE-L017 - HD Series
Regular price
$21.08
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Blank cavity position | 0 |
| Connector modification | Ring Adapter |
| Connector seal code | E Seal |
| Number of positions | 29 |
| Contact current rating max | 25 A |
| Contact size | Size 20 |
| Contact type | Socket |
| Mating pin diameter | .04 in |
| Compatible insulation diameter | .053 – .103 in |
| Connector height | 1.67 in |
| Product length | 1.95 in |
| Product width | 1.95 in |
| Nominal voltage architecture | 48 V |
| Operating voltage | 250 VDC |
| Housing material | PA 66 GF |
| Ip rating | IP67 |
| Ul flammability rating | UL 94V-0 |
| Connector mounting type | Panel Mount |
| Mating alignment | With |
| Mating alignment type | Polarizing Slot |
| Strain relief | Without |
| Terminal position assurance | No |
| Circuit application | Power |
| Packaging method | Tray |
| Packaging quantity | 40 |
| Connector contact terminates t | Wire & Cable |
| Connector housing type | Housing for Female Terminals |
| Connector shape | Circular |
| Connector system | Wire-to-Panel |
| Mixed hybrid connector | Yes |
| Primary locking feature | Contact Retainer |
| Sealable | Yes |
| Operating temperature max | 257 °F |
| Operating temperature range | -67 – 257 °F |
| Connector position assurance c | No |
| Serviceable | Yes |
