Deutsch | SKU:
M902-2042

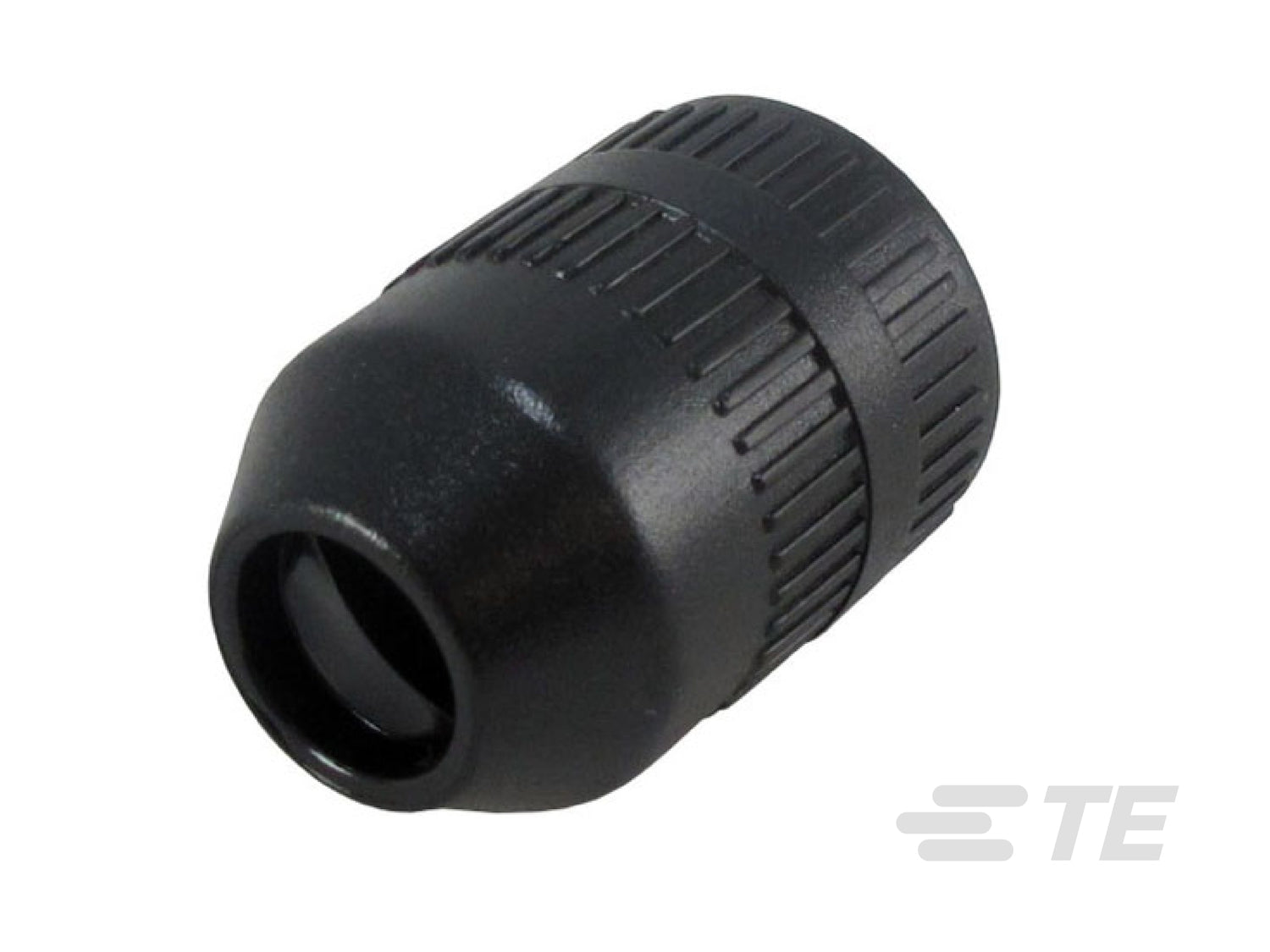

M902-2042 Deutsch HD10 Compression Nut - 0.300"-0.430" Cable Range
M902-2042 Deutsch HD10 Compression Nut is a black PBT accessory for HD10 shell sizes 3, 6 and 9, sized for 0.300-0.430 in cable.
It forms part of the HD10 rear cable-management system and is matched to the specified cable outside-diameter range rather than to a single cavity count.
Choose M902-2042 when the HD10 shell is Size 3, 6 or 9 and the cable OD is 0.300-0.430 in; select another M902-204x compression nut if the cable diameter falls outside that range.
Specifications
- Series: DEUTSCH HD10
- Accessory: Compression nut
- Shell sizes: 3, 6 and 9
- Cable range: 0.300-0.430 in
- Cable exit: 180° / straight
- Material: PBT
- Color: Black
- Operating temperature: -40 to 134°C
Quantity price breaks
1+
$1.80/each
50+38% off
$1.12/each$1.80
100+41% off
$1.07/each$1.80
M902-2042 Deutsch HD10 Compression Nut - 0.300"-0.430" Ca...
Regular price
$1.80
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | PBT |
| Number of positions | 9 |
| Compatible cable diameter rang | 0 – .43 in |
| Ip rating | IP6K9K |
| Ul flammability rating | UL 94V-0 |
| Packaging method | Box |
| Connector backshell product ty | Backshell |
| Sealable | No |
| Operating temperature max | 273 °F |
| Operating temperature range | -40 – 273 °F |
| Serviceable | Yes |
