Deutsch | SKU:
M902-2194

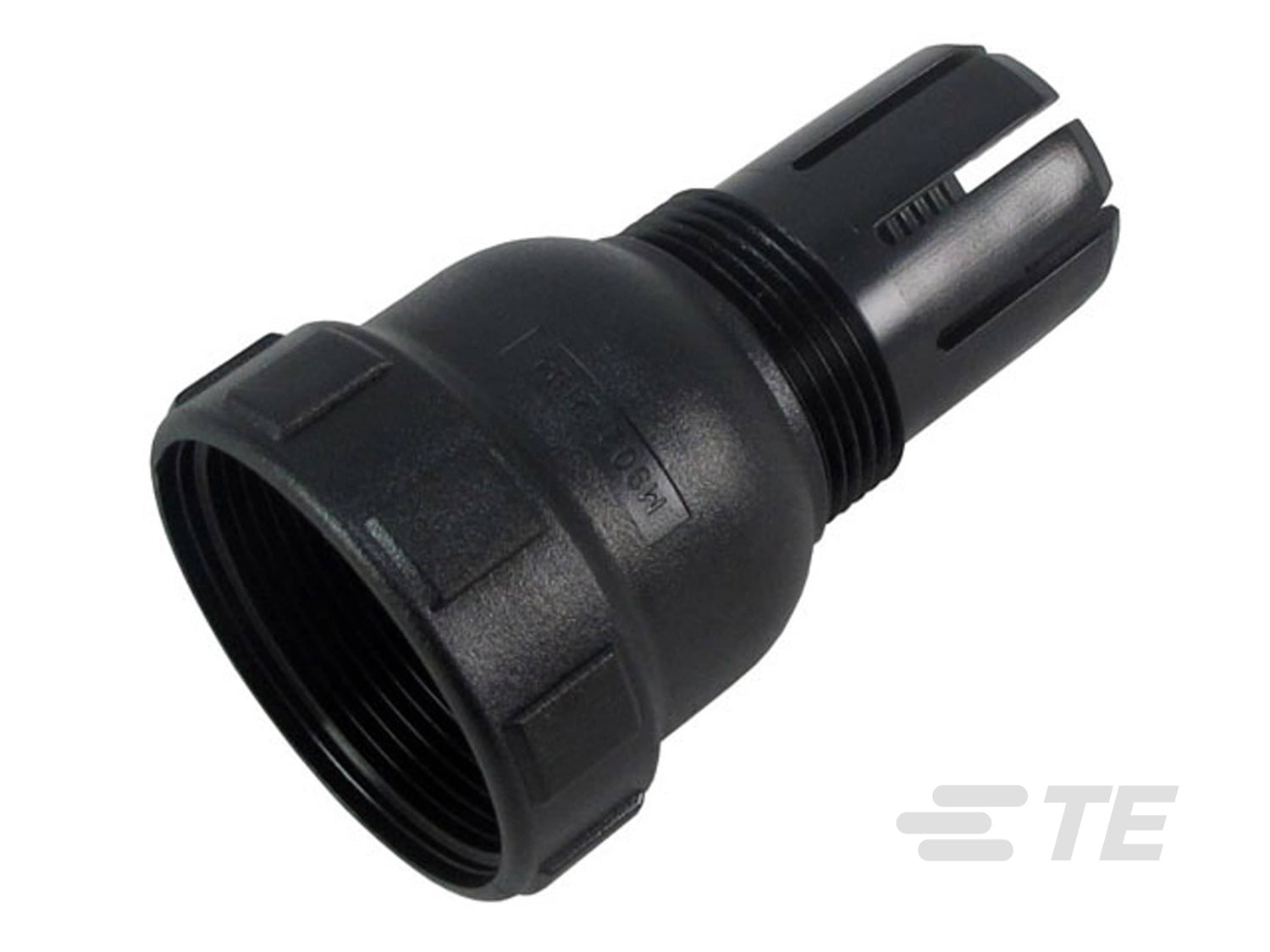

M902-2194 Deutsch HD10 Size 9 Backshell - 0.570"-0.710" Cable Range
M902-2194 is a DEUTSCH HD10 Size 9 straight backshell for cables from 0.570 to 0.710 in (14.48 to 18.03 mm) diameter.
The black PBT/PC backshell provides a 180° cable exit and protects the rear of compatible HD10 connectors; the part itself is supplied without integral strain relief.
Choose M902-2194 when the connector is HD10 Size 9 and the finished cable diameter falls within the 0.570-0.710 in range; smaller cable ranges use a different M902 backshell variant.
Specifications
- Series: DEUTSCH HD10
- Accessory: Backshell
- Shell size: 9
- Cable range: 0.570-0.710 in (14.48-18.03 mm)
- Cable exit: Straight / 180°
- Color: Black
- Material: PBT / PC
- Strain relief: Not integrated
Quantity price breaks
1+
$4.60/each
50+25% off
$3.45/each$4.60
100+29% off
$3.28/each$4.60
500+32% off
$3.13/each$4.60
1000+35% off
$2.98/each$4.60
811 in stock — lead time on request for 1000+
5000+38% off
$2.84/each$4.60
811 in stock — lead time on request for 5000+
M902-2194 Deutsch HD10 Size 9 Backshell - 0.570"-0.710" C...
Regular price
$4.60
Unit price
Unavailable
Product Specifications
| Cable exit angle | 180 ° |
| Primary product color | Black |
| Primary product material | PC |
| Number of positions | 1 |
| Strain relief | Without |
| Packaging method | Package |
| Protection strain relief acces | Backshell |
| Operating temperature max | 273 °F |
| Operating temperature range | -40 – 273 °F |
