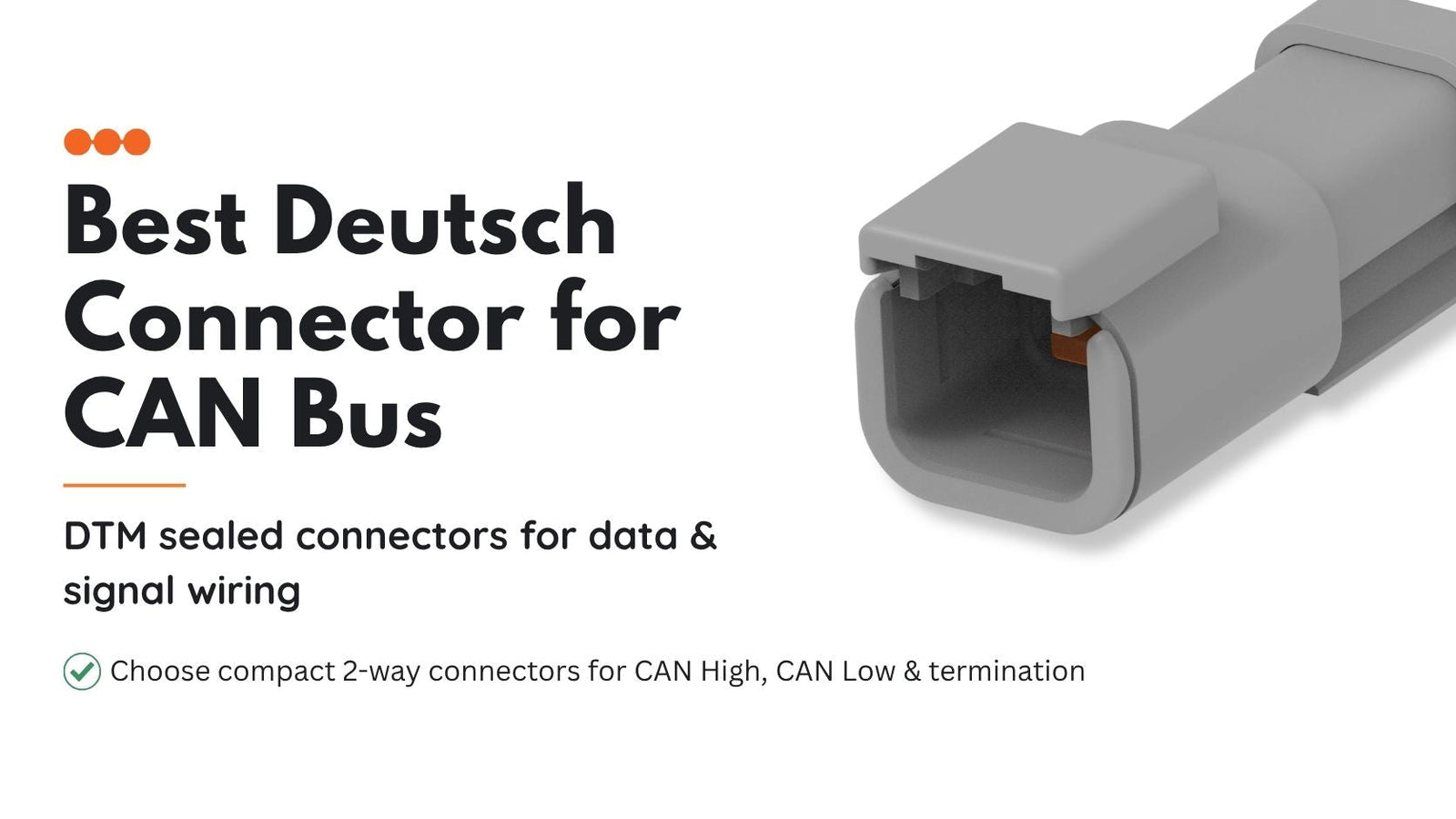

The best Deutsch connector for CAN bus systems is usually a compact sealed DTM Series connector, especially for CAN High and CAN Low signal wiring. DTM connectors are a strong starting point because CAN bus circuits are low-current signal circuits that often need compact, vibration-resistant and serviceable harness connections.
CAN bus wiring is used in automotive, off-highway, industrial and equipment networks. Connector selection should protect signal integrity while also matching the wire gauge, sealing requirement, harness routing and service access.
This guide explains when to use DTM Series connector housings for CAN bus wiring, how they compare with DT connectors, and what to check before ordering contacts, wedgelocks and termination-related parts.
Quick Answer: Which Deutsch Connector Should You Use for CAN Bus?
Use DTM Series connectors for most CAN bus wiring when you need a compact sealed connector for low-current signal circuits. A 2-way DTM connector is often a practical starting point for CAN High and CAN Low.
| CAN bus need | Best starting point | Why | Shop |
|---|---|---|---|
| Compact CAN High / CAN Low connection | DTM 2-way connector | Compact sealed option for low-current signal wiring. | Shop DTM04-2P |
| Mating plug side | DTM06-2S-style plug housing | Pairs with compatible DTM receptacle configurations. | Shop DTM06-2S-E004 |
| Termination-related connection | CAN-specific DTM variant where appropriate | Useful when the system design requires a termination-related component. | View DTM04-2P-EP10 resistor receptacle |
Why DTM Is Usually Best for CAN Bus
DTM connectors are usually the best Deutsch connector starting point for CAN bus because they are compact, sealed and designed around lower-current signal applications.
| Reason | Why it matters for CAN bus | Related guide |
|---|---|---|
| Compact housing | CAN branches often need small serviceable connector points. | DTM Series Connectors Explained |
| Low-current signal fit | CAN bus is a data/signal application, not a power circuit. | Deutsch Connector Current Rating Guide |
| Sealed connection | Vehicles and equipment may expose connectors to moisture and vibration. | Browse DTM connector housings |
| Serviceability | Contacts and tools support harness repair and diagnostics. | Browse contact removal tools |
CAN Bus Connector Requirements
CAN bus connector selection should focus on signal integrity, stable contact retention and correct harness layout. The connector does not replace good network design, correct routing or proper termination.
| Requirement | Why it matters | Selection note |
|---|---|---|
| Low-current signal compatibility | CAN bus uses signal wiring rather than high-power circuits. | Start with DTM rather than DTP. |
| Secure contact retention | Intermittent signal faults can be difficult to diagnose. | Use correct contacts and wedgelocks. |
| Correct wire gauge | Contacts must match the actual CAN wiring. | Check contact crimp range before ordering. |
| Sealing | Vehicle and equipment wiring may be exposed to moisture and dust. | Use compatible seals and connector components. |
| Termination design | Incorrect termination can affect network performance. | Follow the CAN network design requirements. |
DTM vs DT for CAN Bus
DTM is usually the better starting point for CAN bus because it is smaller and better suited to low-current signal circuits. DT can still be relevant when the harness design needs a larger connector body or when CAN wiring is grouped with other general-purpose circuits.
| Connector family | Best for CAN bus when... | Selection note | Shop |
|---|---|---|---|
| DTM Series | You need a compact sealed signal connector. | Usually the best starting point for CAN High and CAN Low. | Browse DTM connector housings |
| DT Series | You need a larger general-purpose connector body. | Use only when it fits the harness and wire requirements. | Browse DT connector housings |
| DTP Series | Usually not needed for CAN bus alone. | DTP is more suited to higher-current circuits. | Browse DTP connector housings |
2-Way Connectors for CAN High and CAN Low
A 2-way connector is often a practical starting point for CAN bus because a basic CAN connection uses CAN High and CAN Low. The exact harness may require additional cavities if power, ground, shielding or other circuits are included.
| Circuit | Connector role | Selection note |
|---|---|---|
| CAN High | One cavity / one contact. | Maintain correct wiring and network layout. |
| CAN Low | One cavity / one contact. | Keep the pair routed according to harness design. |
| Shield, power or ground | May require additional cavities. | Use a higher cavity count if the harness requires extra circuits. |
CAN Bus Termination Considerations
CAN bus networks require correct termination at the appropriate network ends. Connector choice should support the network design rather than replace it.
If your harness design includes termination-related components, confirm whether a resistor variant or separate termination component is required. Do not add termination randomly to every connector, because termination placement affects the whole CAN network.
| Check | Why it matters | Product or guide |
|---|---|---|
| Network termination plan | Termination should be placed according to the system design. | Application guide |
| Resistor-related part | Use only when the harness design requires it. | View DTM04-2P-EP10 resistor receptacle |
| Service access | Diagnostic and repair work may need accessible connector points. | Browse DTM connector housings |
Recommended Product Starting Points
These DTM products are useful starting points for CAN bus connector planning. Always confirm the final part number, mating connector, contacts, wire gauge, termination design and accessories before ordering.
| Product | Why consider it | Shop |
|---|---|---|
| DTM04-2P | Compact 2-way DTM receptacle-style product for signal wiring. | Shop DTM04-2P |
| DTM06-2S-E004 | 2-way DTM plug-style product for the mating side. | Shop DTM06-2S-E004 |
| DTM04-2P-EP10 | CAN-related DTM option where a 120 ohm resistor configuration is required by the design. | View DTM04-2P-EP10 resistor receptacle |
Complete a DTM CAN Bus Connector Assembly
Choosing a DTM housing is only the first step. A serviceable CAN High/CAN Low connection also needs the correct mating half, Size 20 pin and socket contacts, and the matching wedgelocks. Check the exact housing configuration and wire-insulation diameter before ordering.
| Component | What to confirm | Browse |
|---|---|---|
| DTM connector housings | Use compatible 2-way receptacle and plug configurations, with matching mating and keying requirements. | Browse DTM Series connector housings |
| Size 20 contacts | Match pin or socket type, wire gauge and approved crimp tooling to the exact housing. | Browse Deutsch contacts and terminals |
| Wedgelocks and seals | Choose components specified for each DTM housing and its contact configuration. | Browse DTM Series parts |
| Removal and service tooling | Confirm the tool is suitable for the DTM contact-retention design; contact size alone is not enough. | Browse Deutsch contact removal tools |
CAN termination note: DTM04-2P-EP10 contains an integrated 120-ohm terminating resistor and uses a B-keyed configuration. Treat it as a specialised component, not as a standard empty two-way receptacle: verify its mating connector and the required location of termination in the CAN network.
CAN Bus Deutsch Connector Buying Checklist
Use this checklist before ordering Deutsch connectors for CAN bus wiring.
| Checklist item | Confirm before ordering | Shop or guide |
|---|---|---|
| Connector family | DTM is the right family for the CAN branch. | Browse DTM Series Parts |
| Cavity count | 2-way is enough for CAN High and CAN Low, or more if extra circuits are included. | Browse DTM connector housings |
| Wire gauge | Contacts match the actual CAN bus wire size. | Browse Deutsch contacts |
| Mating pair | Plug and receptacle sides are compatible. | Deutsch Connector Mating Guide |
| Termination | Termination matches the network design. | Review DTM04-2P-EP10 |
| Tools | Crimp and removal tools match the selected contacts. | Browse contact removal tools |
Common CAN Bus Connector Selection Mistakes
Most CAN bus connector mistakes happen when the connector is chosen as if it were a power circuit, or when termination and wire routing are ignored.
| Mistake | Why it causes problems | Better practice |
|---|---|---|
| Using oversized power connectors | CAN bus is a signal circuit, not a high-current circuit. | Start with compact DTM connectors. |
| Ignoring termination | Incorrect termination can affect network performance. | Follow the system’s CAN bus design. |
| Using the wrong contact size | Contacts may not crimp or seat correctly. | Match DTM contacts to the wire gauge. |
| Forgetting wedgelocks | Contacts may not retain correctly in vibration-prone harnesses. | Use the correct wedgelock and contact retention components. |
| Choosing by connector appearance | Similar-looking connectors may not be compatible. | Confirm family, cavity count, mating side and part number. |
Related Guides
Use these related guides to choose CAN bus connectors by family, current load and assembly requirements.
- Complete Deutsch Connector Selection Guide — compare the main Deutsch connector families.
- DT vs DTM vs DTP: Which Deutsch Connector Should You Choose? — compare common rectangular families.
- DTM Series Connectors Explained — learn why DTM suits signal circuits.
- Deutsch Connector Current Rating Guide — choose by current load and contact size.
- Waterproof Electrical Connectors for Construction Equipment — sealed wiring guidance for equipment environments.
- How to Crimp Deutsch Connectors Correctly — crimping and assembly guidance.
FAQs: Best Deutsch Connector for CAN Bus Systems
What is the best Deutsch connector for CAN bus wiring?
DTM Series connectors are usually the best starting point for CAN bus wiring because they are compact sealed connectors suited to low-current signal circuits.
Can I use DT connectors for CAN bus wiring?
DT connectors can be used in some signal wiring applications, but DTM connectors are usually preferred when space is limited and the circuit is low-current. Choose by wire gauge, connector size and harness requirements.
How many pins does a CAN bus connector need?
A basic CAN bus connection commonly uses CAN High and CAN Low, so a 2-way connector is often a practical starting point. Additional circuits may require a higher cavity count depending on the harness design.
Do CAN bus connectors need a 120 ohm resistor?
CAN bus networks require correct termination, commonly using 120 ohm termination at the appropriate network ends. Connector choice and termination placement should follow the system design.
Final Recommendation
Choose DTM Series connectors for most CAN bus wiring because they are compact, sealed and suited to low-current signal circuits. A 2-way DTM connector is a practical starting point for CAN High and CAN Low, while resistor or termination-related parts should only be used when the network design requires them.
Browse DTM Series connector housings, contacts and terminals, wedgelocks and Deutsch contact removal tools to complete your CAN bus connector assembly.
