Application-Specific Guide
Construction equipment needs sealed electrical connectors that can survive mud, rain, vibration, washdown, dust and field repairs. The best connector depends on the circuit, not just the fact that the machine works outdoors.
If you are wiring LED work lights on a loader, a DT connector is usually the cleanest starting point. If you are wiring a pump, fan or motor circuit, DTP is usually the better family to check first. If you are protecting a larger circular harness interface on a machine, HD or HD30 may be the right direction.
This guide explains how to choose DT Series, DTP Series and HD30 Series connectors for exposed construction equipment wiring.
Quick Recommendation
For construction equipment, start with DT for general sealed wiring, DTP for higher-current loads, and HD or HD30 for larger circular harness interfaces. Choose by the circuit, current draw, wire gauge and exposure level.
Do not choose a connector just because it is described as waterproof. A sealed connector only does its job when the mating halves, contacts, wire seals, wedgelocks and crimp quality are correct.
Waterproof vs Sealed Connectors
In real equipment wiring, “waterproof” is often used as shorthand for a connector that can resist moisture when assembled correctly. The more accurate term is usually sealed connector.
The wire seals compress around each cable, and the interface seal helps protect the joint where the connector halves meet. That is what keeps mud, rain, road spray and washdown water away from the contacts. But the seal only works if the right contacts, wire size and mating parts are used.
| Term | What it usually means | What to check |
|---|---|---|
| Waterproof connector | Common buyer term for a connector expected to resist water exposure. | Check the exact product specification and installation requirements. |
| Sealed connector | A connector designed to protect the contact interface when assembled correctly. | Check seals, mating halves, contacts, wedgelocks and wire size. |
| Weather-resistant installation | A full harness setup that reduces water, mud and vibration risk. | Check routing, strain relief, drip loops and service access. |
Choose by Construction Equipment Circuit
The best waterproof electrical connector for construction equipment depends on the job the circuit is doing. A small sensor, LED work light, hydraulic solenoid, cooling fan and cab harness connector do not all need the same connector family.
| Construction equipment circuit | Best starting point | Why | Practical example |
|---|---|---|---|
| Pressure or temperature sensor | DTM | Compact option for low-current signal wiring. | Hydraulic pressure sensor on an excavator or loader. |
| LED work lights | DT | Good all-round sealed connector for general wiring. | Work lights on a telehandler, dumper, excavator or loader. |
| Relay or solenoid circuit | DT | Practical middle-ground connector for many equipment circuits. | Hydraulic valve solenoid or auxiliary relay circuit. |
| Fuel pump, fan or motor | DTP | Better starting point for higher-current loads. | Cooling fan, powered accessory or pump circuit. |
| Main circular harness interface | HD / HD30 | Rugged circular connector format for larger harness connections. | Cab harness, chassis harness or multi-circuit service connection. |
| Unmated service connector | HDC cap or cover | Helps protect exposed circular connector faces between service intervals. | Diagnostic or service connector on plant equipment. |
Shop the Parts Mentioned in This Guide
These products are useful starting points for sealed construction equipment wiring. Always confirm mating halves, contact size, wire gauge, wedgelocks and tool compatibility before ordering.
| Product | Use it when | Check before ordering | Shop |
|---|---|---|---|

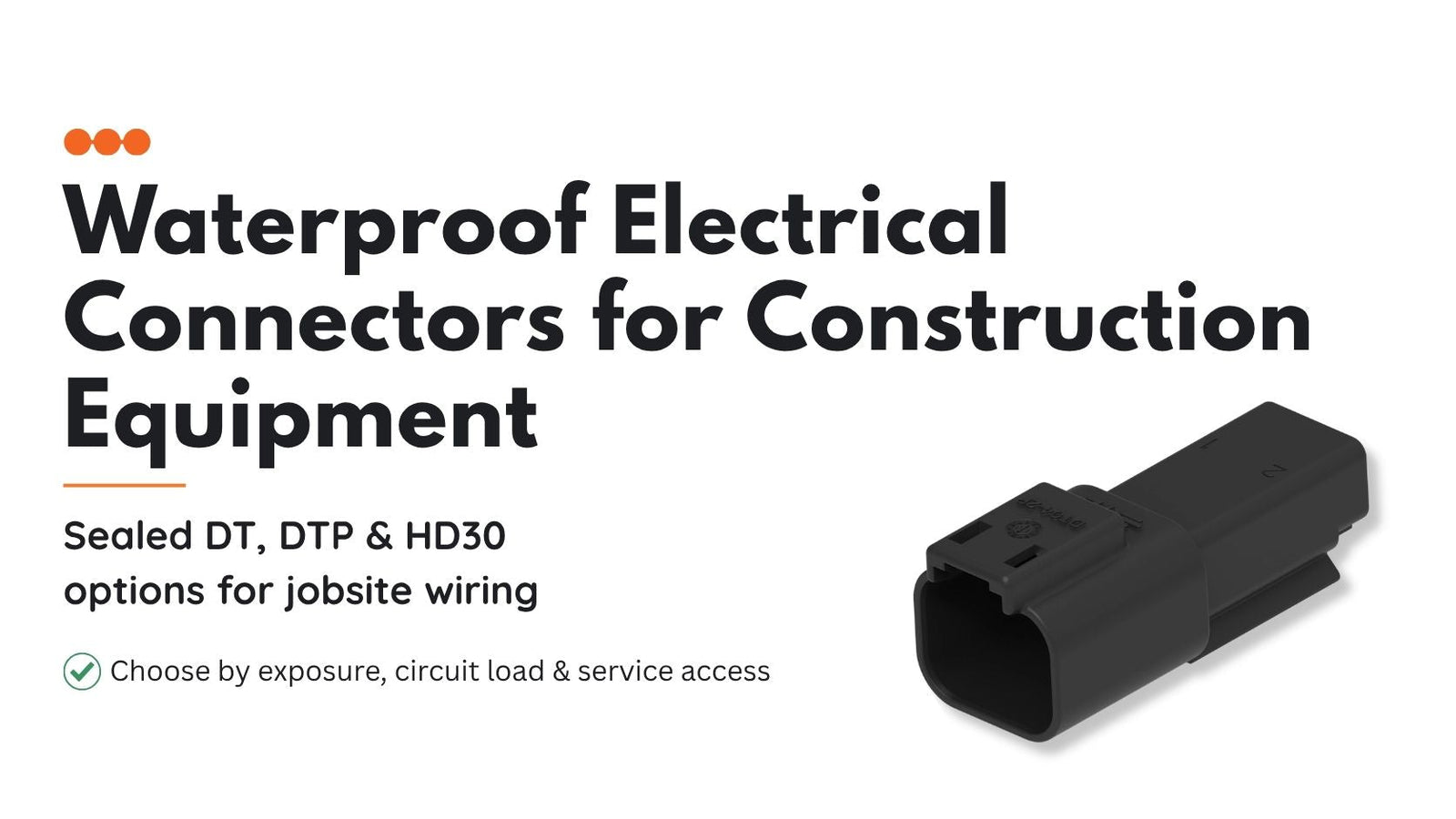

| DT04-2P-E004 | You need a 2-way DT option for general sealed construction equipment wiring. | Mating connector, contacts, wedgelock and wire gauge. | View DT04-2P-E004 |
| DTP04-2P-E004 | You need a 2-way DTP option for a higher-current off-highway circuit. | Current draw, startup load, wire gauge and contacts. | View DTP04-2P-E004 |
| HDP26-18-20SN-L017 | You need a rugged HD30-style circular plug for a larger harness interface. | Shell size, cavity count, mating side and contact configuration. | View HDP26-18-20SN-L017 |
| Contacts and terminals | You need matching pins or sockets for the selected connector family. | Contact size, wire gauge and crimp tool compatibility. | Shop contacts |
| Wedgelocks | You need the correct secondary retention piece for DT-style assemblies. | Connector family, cavity count and plug or receptacle side. | Shop wedgelocks |
| Deutsch connector tools | You need reliable crimps and serviceable repairs. | Contact size and tool compatibility. | Shop tools |
Why Connectors Fail on Construction Equipment
Construction equipment connectors usually fail because of the whole installation, not just the connector housing. Mud, water and vibration expose weak crimps, poor routing, missing wedgelocks and damaged seals.
A connector on a bench may look perfect. Put the same connector under a loader, near a hydraulic line, or on an excavator arm, and the harness routing becomes just as important as the part number.
| Jobsite condition | Why it matters | Practical response |
|---|---|---|
| Mud and standing water | Contamination can reach contacts if seals or mating parts are wrong. | Use sealed connector assemblies and inspect seals before assembly. |
| Pressure washing | Water can be driven into poorly assembled or damaged connectors. | Route connectors away from direct spray where possible. |
| Vibration | Loose contacts or unsupported harnesses can become intermittent. | Use correct wedgelocks, contact seating and strain relief. |
| Heat | Engine and hydraulic areas reduce electrical margin. | Check current draw, wire gauge and routing. |
| Field repairs | Rushed repairs can lead to poor crimps and missing components. | Keep the correct contacts, tools and accessories available. |
DT for General Sealed Wiring
DT Series connectors are often the best starting point for general construction equipment wiring. They are a good fit for lights, beacons, relays, solenoids and smaller auxiliary circuits.
If you are replacing a corroded connector on a pair of site work lights, DT is usually a cleaner choice than jumping straight to DTP. It keeps the harness compact, gives you a sealed connection when assembled correctly, and allows the light or bracket to be removed later without cutting the wiring.
| Use DT when... | Why it works | Shop |
|---|---|---|
| You are wiring work lights or beacons | DT is a practical sealed connector for general equipment circuits. | View DT04-2P-E004 |
| You are wiring relays or solenoids | DT is a useful middle ground for many construction equipment circuits. | Shop DT Series |
| You need serviceable branch wiring | DT assemblies can be disconnected later without cutting the harness. | Installation guide |
DTP for Higher-Current Circuits
DTP Series connectors are a better starting point when a construction equipment circuit carries more current or uses heavier wire. That often means pumps, cooling fans, motors and power accessories.
A pump or fan may work during a quick test and still create heat later when the machine runs for a full shift. That is why DTP is worth checking first on higher-current circuits, especially in hot or dirty areas.
| Use DTP when... | Why it works | Shop |
|---|---|---|
| You are wiring a pump | Higher-current circuits often need larger contacts and heavier wire. | View DTP04-2P-E004 |
| You are wiring a cooling fan or motor | Motor-driven loads need more current-rating margin. | Shop DTP Series |
| DT is too small for the wire gauge | The contact, connector and wire must match each other. | Current rating guide |
HD30 for Circular Harness Interfaces
HD30 Series connectors are useful when the machine needs a rugged circular connector format rather than a small rectangular branch connector.
On construction equipment, this is more likely to apply to cab harnesses, chassis harnesses, multi-circuit interfaces and serviceable connection points. It is a different problem from wiring a single light or sensor.
| Use HD30 when... | Why it works | Shop |
|---|---|---|
| You need a circular harness interface | The circular format can suit larger construction equipment harnesses. | Shop HD30 Series |
| You need more circuits in one connector | Multi-circuit interfaces may suit HD-style connector layouts. | View HDP26-18-20SN-L017 |
| The connector may be exposed while unmated | Protective caps or covers may be needed between service intervals. | Shop HDC Series |
Simple Selection Flow
Use this decision path when choosing waterproof electrical connectors for construction equipment.
| Question | If yes | If no |
|---|---|---|
| Is this a larger circular harness interface? | Start with HD or HD30. | Go to the next question. |
| Is this a higher-current load such as a pump, fan or motor? | Start with DTP. | Go to the next question. |
| Is this a general circuit such as lights, relays or solenoids? | Start with DT. | Go to the next question. |
| Is this a compact sensor or signal circuit? | Start with DTM. | Check current load, wire gauge, sealing requirement and space. |
Common Mistakes We See
Waterproof connector problems usually start with small assembly or routing mistakes. The connector family may be right, but the installation still leaves the contacts exposed to water, vibration or heat.
- Calling any sealed connector waterproof without checking the exact part. Always confirm the product specification and assembly requirements.
- Using the wrong wire size for the seal. The seal needs to compress properly around the cable.
- Forgetting the wedgelock. Contact retention matters on vibrating construction equipment.
- Crimping with generic pliers. Poor crimps can create resistance, heat and intermittent faults.
- Routing connectors where they catch water and mud. Good routing helps the seal do its job.
- Pulling on the wires to disconnect the connector. Pull the connector body, not the harness.
- Using DT where DTP is needed. Pumps, fans and motors may need larger contacts and heavier wire.
- Leaving circular service connectors uncapped. Unmated connectors can collect dirt and moisture before the next service interval.
Buying Checklist for Construction Equipment Connectors
Use this checklist before ordering sealed electrical connectors for construction equipment.
| Check | Why it matters | Where to go next |
|---|---|---|
| Circuit type | Determines whether DTM, DT, DTP or HD30 is the right starting point. | DT vs DTM vs DTP guide |
| Current draw | Prevents undersizing connectors on pumps, fans and motors. | Current rating guide |
| Wire gauge | The wire must match the contact and seal range. | Shop contacts |
| Mating connector | Plug and receptacle sides must be compatible. | Mating guide |
| Wedgelocks and seals | Retention and sealing components help complete the assembly. | Shop wedgelocks |
| Crimp tool | Crimp quality affects sealing, reliability and electrical performance. | Shop tools |
| Exposure and routing | Connector location affects water, mud, vibration and service damage. | Installation guide |
| Unmated circular connectors | Exposed connector faces may need caps or covers. | Shop HDC Series |
FAQs: Waterproof Electrical Connectors for Construction Equipment
What are the best waterproof electrical connectors for construction equipment?
The best waterproof electrical connectors for construction equipment are sealed connectors matched to the circuit, current load, wire gauge and exposure level. DT is a good starting point for general sealed wiring, DTP for higher-current circuits, and HD or HD30 for rugged circular harness interfaces.
Are Deutsch connectors waterproof?
Many Deutsch connector families are designed for sealed wiring applications, but sealing depends on the exact part, correct contacts, wire seals, wedgelocks, mating halves and assembly quality. The connector should be treated as sealed when specified and assembled correctly, not automatically waterproof in every installation.
Which Deutsch connector should I use for construction equipment lights?
For construction equipment lights, DT Series connectors are often a practical starting point because they are suited to general sealed wiring and can be disconnected for service. Confirm current draw and wire gauge before ordering.
Which Deutsch connector should I use for pumps or fans on construction equipment?
For pumps, fans and other higher-current construction equipment circuits, DTP Series connectors are usually a better starting point than DT or DTM. Confirm startup current, continuous current, wire gauge and operating environment.
What causes waterproof connector failures on construction equipment?
Common causes include poor crimping, missing wedgelocks, wrong wire size, damaged seals, incompatible mating halves, poor routing, pressure washing directly into connector joints and leaving unmated connectors exposed.
Final Recommendation
For construction equipment wiring, choose sealed connectors by circuit first and environment second. Use DT for general sealed circuits, DTP for higher-current loads and HD or HD30 for larger circular harness interfaces.
Before ordering, check the current draw, wire gauge, contact size, mating half, wedgelock, crimp tool and where the connector will sit on the machine. A sealed connector only performs well when the full assembly is correct.
Browse DT Series connectors, DTP Series connectors, HD30 Series connectors, HDC Series caps and covers, contacts and terminals and Deutsch connector tools.
