Application-Specific Guide
The best Deutsch connector for heavy equipment depends on what the circuit is doing. A sensor on an excavator boom, a pair of LED work lights, a hydraulic fan circuit and a main circular harness interface should not all use the same connector family.
If you are repairing a damaged harness on a loader or excavator, start with the circuit. A compact sensor branch may only need DTM. A work light or solenoid may suit DT. A fuel pump, fan or motor circuit may need DTP. For larger circular interfaces, HD or HD30 connectors become more relevant.
This guide compares DTM Series, DT Series, DTP Series, HD Series and HD30 Series connectors for heavy equipment wiring.
Quick Recommendation
For heavy equipment, choose DTM for compact sensors and signal wiring, DT for general sealed circuits, DTP for higher-current loads, and HD or HD30 when you need a rugged circular connector for a larger harness interface.
Do not choose a connector just because the machine is “heavy-duty.” Choose it by the circuit. A pressure sensor on a digger does not need the same connector as a cooling fan or a multi-circuit cab harness connection.
Choose by Heavy Equipment Circuit
The easiest way to choose the right Deutsch connector is to identify what the harness branch is powering or carrying. This prevents overusing large connectors on signal circuits and under-sizing connectors on higher-current loads.
| Heavy equipment circuit | Best starting point | Why | Practical example |
|---|---|---|---|
| Pressure sensor | DTM | Compact sealed connector for low-current signal wiring. | Hydraulic pressure sensor on an excavator arm. |
| Temperature sensor | DTM | Keeps small sensor harnesses neat and serviceable. | Engine or coolant temperature sensor wiring. |
| Work lights | DT | Good all-round choice for general sealed wiring. | LED work lights on a loader, tractor or telehandler. |
| Solenoid or relay circuit | DT | Practical middle ground for many equipment circuits. | Hydraulic valve solenoid or relay-controlled accessory. |
| Fuel pump, cooling fan or motor | DTP | Better starting point for higher-current loads. | Auxiliary pump, fan circuit or powered equipment accessory. |
| Main harness interface | HD / HD30 | Rugged circular format for larger equipment harness connections. | Cab harness, chassis harness or multi-circuit equipment interface. |
Shop the Parts Mentioned in This Guide
These parts are useful starting points for heavy equipment connector selection. Always confirm the connector family, cavity count, mating side, contacts, wire gauge and accessories before ordering.
| Product | Use it when | Check before ordering | Shop |
|---|---|---|---|

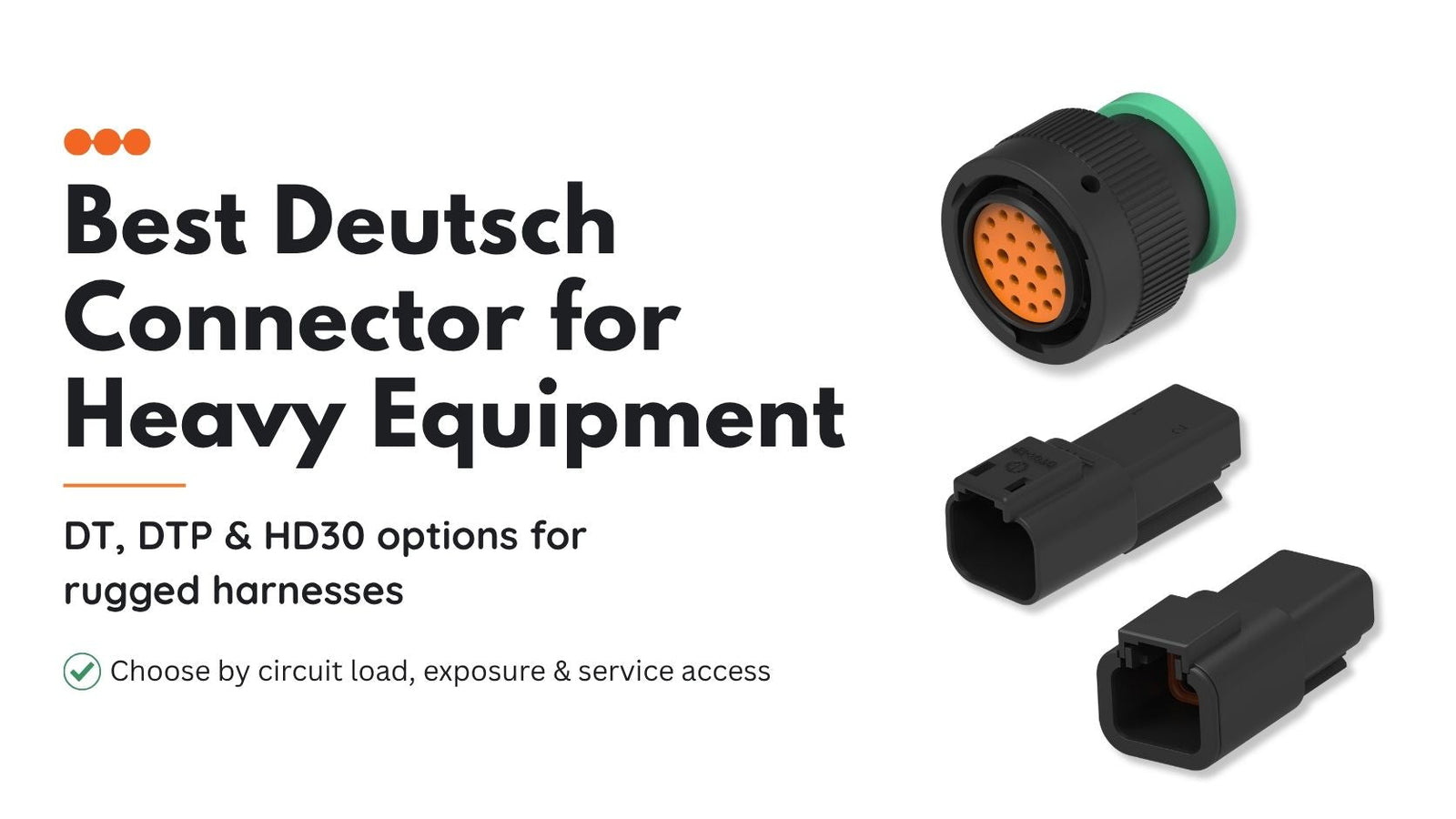

| HDP26-18-20SN-L017 | You need a rugged HD30-style circular plug for a larger harness interface. | Shell size, cavity count, mating side and contact configuration. | View HDP26-18-20SN-L017 |
| DTP04-2P-E004 | You need a 2-way DTP option for a higher-current equipment circuit. | Current draw, wire gauge, mating connector and contacts. | View DTP04-2P-E004 |
| DT04-2P-E004 | You need a 2-way DT option for general sealed equipment wiring. | Contact size, wedgelock, mating side and environmental exposure. | View DT04-2P-E004 |
| Contacts and terminals | You need the correct pins or sockets for the selected connector family. | Connector family, wire gauge and crimp tool compatibility. | Shop contacts |
| Deutsch connector tools | You need reliable crimps and serviceable field repairs. | Contact size and tool compatibility. | Shop tools |
Why Heavy Equipment Needs Sealed Connectors
Heavy equipment wiring lives a harder life than most automotive wiring. Connectors may sit close to hydraulic lines, mudguards, booms, chassis rails, engine heat, road spray and washdown areas. Vibration is constant, and service work often happens in the field rather than on a clean bench.
A sealed Deutsch connector helps because the wire seals compress around each cable and the interface seal helps protect the joint where the connector halves meet. That does not make poor installation harmless, but it does reduce the chance of mud, moisture and debris reaching the contacts when the connector is assembled correctly.
| Condition | Why it matters | Connector selection note |
|---|---|---|
| Vibration | Contacts and terminals must stay seated during machine operation. | Use correct contacts, wedgelocks and strain relief. |
| Mud and moisture | Contamination can cause corrosion and intermittent faults. | Use sealed connectors and assemble seals correctly. |
| Heat | Engine bays and hydraulic areas reduce electrical margin. | Check current load, wire gauge and routing. |
| Field service | Connectors may need to be disconnected and repaired on-site. | Choose serviceable parts with available contacts and tools. |
| Exposed harness runs | Harnesses may be routed along frames, booms and attachments. | Choose durable connector families and protect unmated interfaces. |
DTM for Sensors and Signal Wiring
DTM Series connectors are the best starting point for compact heavy equipment signal circuits. Think pressure sensors, temperature sensors, position sensors, CAN bus branches and control signals.
If you are replacing a small sensor connector on a hydraulic circuit, DTM usually makes more sense than DT or DTP. It keeps the connector compact and avoids adding a bulky housing where the circuit only carries a low-current signal.
| Use DTM when... | Why it works | Shop |
|---|---|---|
| The circuit is a sensor signal | DTM is compact and suited to low-current wiring. | Shop DTM Series |
| Space is tight | Smaller housings are easier to package on crowded equipment harnesses. | View DTM04-2P |
| You are wiring CAN bus or control signals | These circuits usually do not need larger DT or DTP contacts. | CAN bus guide |
DT for General Equipment Wiring
DT Series connectors are often the best all-round choice for heavy equipment branch circuits. They are useful for work lights, relays, solenoids, beacons, small accessories and general equipment harness repairs.
If you are wiring a pair of LED work lights on a loader, DT is usually cleaner than DTP. It is sealed when assembled correctly, compact enough to route neatly, and easy to disconnect later if the light, bracket or attachment needs to be removed.
| Use DT when... | Why it works | Shop |
|---|---|---|
| You are wiring lights or beacons | DT is a practical sealed connector for general accessory wiring. | View DT04-2P-E004 |
| You are wiring solenoids or relays | DT is a useful middle ground for many equipment circuits. | Shop DT Series |
| The connector needs to be serviced later | DT assemblies can be disconnected without cutting the harness. | Installation guide |
DTP for Higher-Current Loads
DTP Series connectors are the better starting point for higher-current heavy equipment circuits. Use DTP when the load, wire gauge or motor behavior makes DT too small for the job.
This matters on equipment because pumps, fans and motors can draw more current than expected, especially at startup. A connector that survives a quick test may still run hot later if the machine works all day in a hot, dirty environment.
| Use DTP when... | Why it works | Shop |
|---|---|---|
| You are wiring a fuel pump or auxiliary pump | Higher-current pump circuits often need larger contacts and heavier wire. | View DTP04-2P-E004 |
| You are wiring a cooling fan | Motor-driven loads need more current-rating margin. | Shop DTP Series |
| DT is too small for the selected wire gauge | The connector, contact and wire must work together. | Current rating guide |
HD and HD30 for Circular Harness Interfaces
HD Series and HD30 Series connectors are useful when the machine needs a rugged circular connector interface rather than a small rectangular branch connector.
A typical example is a cab harness, chassis harness or multi-circuit equipment interface. In that situation, you are no longer just asking, “Is this a sensor or light?” You are asking how many circuits need to pass through one connector, how the harness will be mounted, and how often it will be disconnected during service.
| Use HD or HD30 when... | Why it works | Shop |
|---|---|---|
| You need a circular harness interface | The circular format can suit larger equipment harness layouts. | Shop HD30 Series |
| You need more cavities in one connector | Multi-circuit interfaces may suit HD-style connector layouts. | View HDP26-18-20SN-L017 |
| The connector may be exposed while unmated | Protective caps and covers may be needed for service ports or exposed interfaces. | Shop HDC Series |
Simple Selection Flow
Use this decision path when choosing a Deutsch connector for heavy equipment.
| Question | If yes | If no |
|---|---|---|
| Is this a larger circular harness interface? | Start with HD or HD30. | Go to the next question. |
| Is this a higher-current load such as a pump, fan or motor? | Start with DTP. | Go to the next question. |
| Is this a compact sensor, CAN bus or signal circuit? | Start with DTM. | Go to the next question. |
| Is this a general sealed circuit such as a light, relay or solenoid? | Start with DT. | Check current load, wire gauge, cavity count and space. |
Common Mistakes We See
Most heavy equipment connector problems come from choosing a connector by machine type instead of by circuit requirement.
- Using the same connector family everywhere. Sensors, lights, pumps and main harness interfaces have different needs.
- Using DTM on higher-current circuits. DTM is compact and useful, but it is not the right choice for pumps, fans or motors.
- Choosing DTP when DT would be cleaner. DTP adds bulk when the circuit does not need the larger contact size.
- Ignoring startup current. Motors and fans can draw more current when they start than when they are running steadily.
- Forgetting wedgelocks or contacts. A housing alone does not complete the connector assembly.
- Routing connectors where they get pulled or hit. A good connector can still fail if the harness has no strain relief or is exposed to impact.
- Leaving circular service connectors uncapped. Exposed unmated connectors can collect dirt and moisture between service intervals.
Heavy Equipment Connector Buying Checklist
Use this checklist before ordering Deutsch connectors for heavy equipment wiring.
| Check | Why it matters | Where to go next |
|---|---|---|
| Circuit type | Determines whether DTM, DT, DTP, HD or HD30 is the right starting point. | DT vs DTM vs DTP guide |
| Current draw | Prevents undersizing connectors on pumps, fans and motors. | Current rating guide |
| Wire gauge | Contacts must match the selected wire size. | Shop contacts |
| Mating half | Plug and receptacle sides must match. | Mating guide |
| Wedgelocks and accessories | Secondary retention and sealing parts help complete the assembly. | Shop wedgelocks |
| Crimp tool | Poor crimps can cause resistance, heat and intermittent faults. | Shop tools |
| Exposure and service access | Unmated or exposed connectors may need caps, covers or improved routing. | Shop HDC Series |
FAQs: Best Deutsch Connector for Heavy Equipment
What is the best Deutsch connector for heavy equipment?
The best Deutsch connector for heavy equipment depends on the circuit. Use DTM for compact sensor and signal wiring, DT for general equipment wiring, DTP for higher-current loads, and HD or HD30 connectors for larger circular harness interfaces.
Are DTP connectors good for heavy equipment?
DTP connectors are a strong starting point for higher-current heavy equipment circuits such as pumps, fans, motors and power accessories. Always confirm current draw, wire gauge and contact compatibility before ordering.
When should I use HD or HD30 connectors on heavy equipment?
Use HD or HD30 connectors when the application needs a rugged circular connector format, higher cavity count or main harness interface rather than a small branch connector.
Can I use DT connectors on excavators and loaders?
DT connectors are often a practical choice for general sealed wiring on excavators, loaders and plant equipment, including lights, relays, solenoids and smaller auxiliary harnesses. Higher-current loads may require DTP instead.
Should every heavy equipment connector be DTP or HD30?
No. DTP and HD30 are useful for the right jobs, but they can be unnecessary on compact sensors or small general circuits. Choose by circuit type, current load, wire gauge, connector location and service access.
Final Recommendation
For heavy equipment wiring, start with the circuit rather than the machine. Choose DTM for compact sensor and signal wiring, DT for general sealed equipment circuits, DTP for higher-current loads, and HD or HD30 for larger circular harness interfaces.
Before ordering, check the current draw, wire gauge, contact size, mating half, wedgelock, crimp tool and exposure level. A connector that is technically correct on paper still needs to be assembled and routed properly to survive on real equipment.
