Connector Family Guide

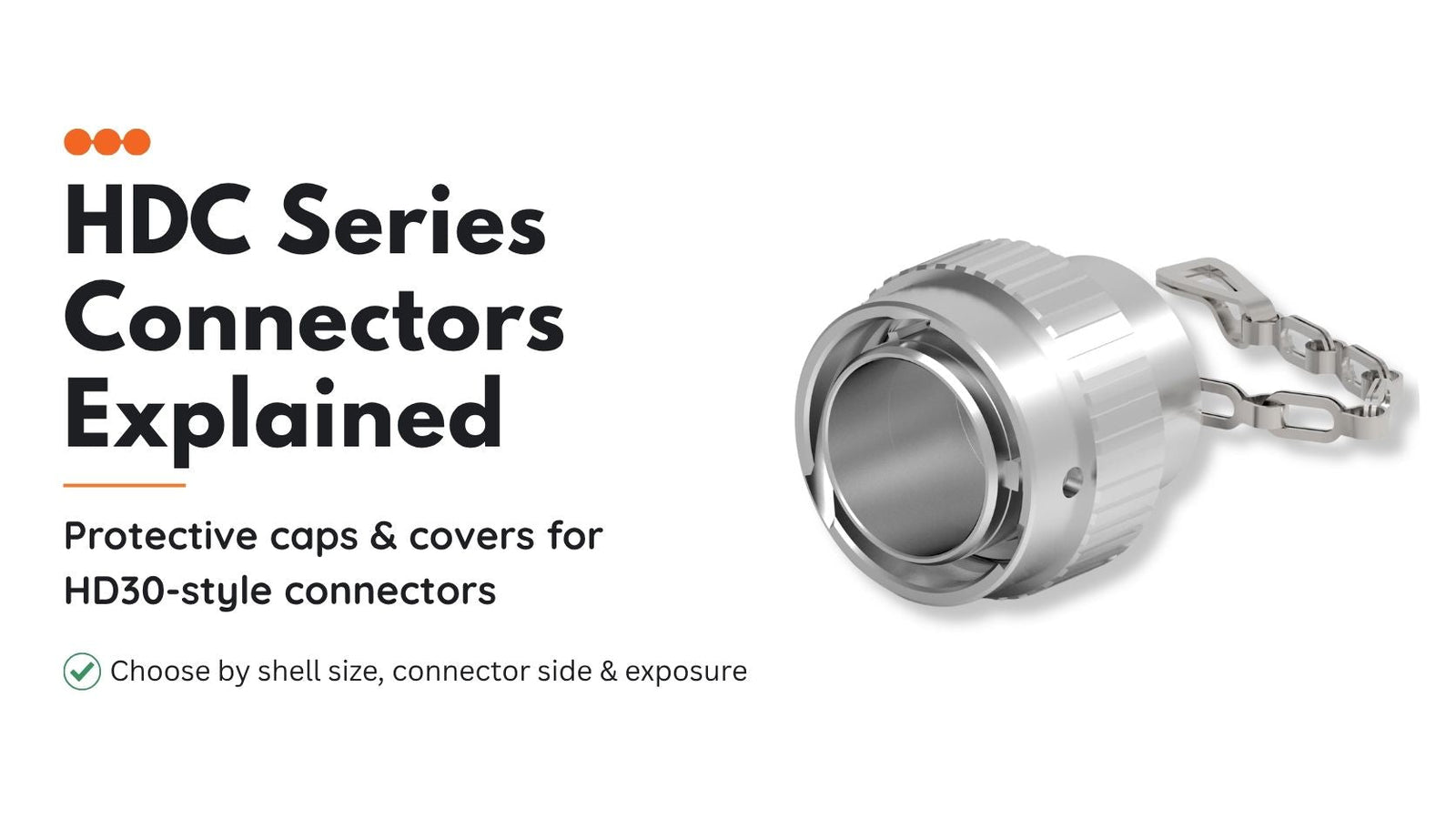

HDC Series parts are often searched as connectors, but many HDC part numbers are protective caps or covers used with Deutsch HD30-style circular connector assemblies. That difference matters. If you order by the letters alone, you may end up with a cover when you expected a complete connector, or the wrong cover for the connector side you are trying to protect.
In real equipment wiring, HDC parts are not just “nice to have” accessories. If a circular connector sits unmated on a machine, diagnostic port, trailer interface or exposed equipment harness, the cap or cover helps protect the connector face from dust, mud, moisture and physical damage between uses.
This guide explains what HDC means in practice, how it relates to HD30 Series connectors, and how to choose HDC parts by shell size, connector side and working environment.
Quick Recommendation
If you are looking for an HDC part, first confirm whether you need a complete connector or a protective cap or cover for an HD30-style circular connector. Then check the shell size, connector side and whether the connector will be exposed while unmated.
As a practical rule: do not buy an HDC part by the first three letters alone. Match the part to the exact connector body, shell size and plug or receptacle side.
What HDC Means
HDC can be confusing because buyers often use the term broadly when searching for heavy-duty connectors, while individual HDC part numbers are commonly used for caps and covers in the Deutsch circular connector ecosystem.
For example, if a maintenance team is replacing a damaged protective cover on a machine harness, they may search for “HDC connector” even though the part they actually need is a cap for an existing HD30-style connector. That is why it is important to check the part function before ordering.
| What the buyer may search | What they may actually need | What to check before ordering |
|---|---|---|
| HDC connectors | Heavy-duty connector family information or HDC-related parts. | Whether the required item is a connector, cap, cover or accessory. |
| HDC36-24 | An HDC part for a specific HD30-style connector size and side. | Shell size, connector side and compatibility. |
| HDC34-24 | A related HDC cap or cover option in the same ecosystem. | Whether it matches the plug or receptacle side being protected. |
| HD30 connector cover | A protective cap or cover for an unmated circular connector. | Connector series, shell size and mounting requirements. |
HDC vs HD30: What Is the Difference?
HD30 is the circular heavy-duty connector family. HDC parts are commonly associated with the protection and accessory side of those connector assemblies. In practical terms, the HD30 connector carries the electrical connection, while an HDC cap or cover helps protect the connector interface when it is not mated.
| Item | Main role | When to consider it | Shop |
|---|---|---|---|
| HD30 Series connector | Creates the circular electrical connection. | When you need a rugged circular connector for equipment wiring. | Shop HD30 Series |
| HDC cap or cover | Protects an unmated connector interface. | When the connector may be exposed between uses or during service. | Shop HDC Series |
| HD Series components | Support heavy-duty circular connector assemblies. | When comparing broader circular connector options. | Shop HD Series |
This distinction matters in the workshop. If a customer says “I need the HDC connector,” the next question should be: do they need the connector body, or do they need the cap that protects it when disconnected?
Shop HDC Parts Mentioned in This Guide
These HDC parts are useful starting points when you are replacing or specifying protective components for HD30-style circular connector assemblies. Always confirm the shell size and connector side before ordering.
| Product | Why consider it | Check before ordering | Shop |
|---|---|---|---|
| HDC36-24 | HDC part used in HD30-style connector protection applications. | Shell size 24 compatibility and connector side. | View HDC36-24 |
| HDC34-24 | Related HDC option for HD30-style connector assemblies. | Shell size 24 compatibility and matching connector side. | View HDC34-24 |
| HDC36-18 | HDC option for a smaller shell-size requirement. | Shell size 18 compatibility and connector side. | View HDC36-18 |
| HDC34-18 | Related HDC option for shell size 18 assemblies. | Shell size 18 compatibility and matching connector side. | View HDC34-18 |
How to Choose the Right HDC Part
The right HDC part is chosen by fit, not by guesswork. Start with the connector already on the machine or harness, then match the shell size, connector side and protection requirement.
A common field example is a service connector on heavy equipment that only gets used during diagnostics. Most of the time it sits disconnected. Without the right cap or cover, the connector face can collect dirt, water and debris long before anyone plugs in a diagnostic tool.
| Selection step | Why it matters | Practical check |
|---|---|---|
| Confirm the connector series | HDC parts are commonly associated with HD30-style circular assemblies. | Check the existing connector family before choosing a cap or cover. |
| Confirm the shell size | A shell size 18 part will not replace a shell size 24 part. | Check the connector marking, part number or existing cap. |
| Confirm plug or receptacle side | Caps and covers are not automatically interchangeable between sides. | Match the HDC part to the exact side being protected. |
| Check the exposure level | Unmated connectors in the field need protection from dirt and moisture. | Prioritize a proper cover where the connector is exposed between uses. |
| Check retention or chain requirements | A loose cap can be lost during service. | Confirm whether the part includes the retention style you need. |
Where HDC Parts Are Used
HDC parts make the most sense where circular connectors are exposed, disconnected during service, or used only occasionally. They are especially useful on equipment that works around dirt, spray, vibration or rough handling.
| Application | Why HDC protection helps | Related collection |
|---|---|---|
| Heavy equipment service ports | Protects the connector while it sits unmated between diagnostics. | HD30 Series |
| Industrial machinery harnesses | Helps reduce contamination on exposed circular connector faces. | Industrial Connectors |
| Agricultural equipment | Useful where connectors are exposed to mud, dust and washdown areas. | HD Series |
| Construction equipment | Protects disconnected connectors during repair, transport and field service. | HD30 Series |
| Fleet maintenance | Helps keep service connectors protected across repeated maintenance cycles. | HDC Series |
Common Mistakes We See
HDC mistakes usually happen when someone treats the cap or cover as a generic accessory. In reality, it needs to match the connector assembly just like any other component.
- Ordering by “HDC” alone. HDC is not enough information. You still need the full part number, shell size and connector side.
- Confusing a cap with a complete connector. Many HDC part numbers are protective components, not complete electrical connector assemblies.
- Ignoring shell size. Shell size 18 and shell size 24 parts are not interchangeable.
- Mixing plug-side and receptacle-side covers. Always confirm which side of the connector you are protecting.
- Leaving service connectors uncapped. Unmated connectors on equipment can collect dirt and moisture long before the next service interval.
- Replacing a lost cap without checking the original part number. The old cap, connector marking or equipment documentation can prevent an incorrect order.
HDC Buying Checklist
Use this checklist before ordering HDC parts for heavy-duty circular connector assemblies.
| Check | Why it matters | Where to go next |
|---|---|---|
| Existing connector family | Confirms whether the HDC part is suitable for the connector assembly. | Shop HD30 Series |
| Shell size | Determines whether you need an 18-size or 24-size HDC part. | Shop HDC Series |
| Connector side | Prevents ordering the wrong plug-side or receptacle-side protection. | View HDC36-24 |
| Exposure level | Determines how important cap retention and protection are in the application. | Shop Industrial Connectors |
| Related connector parts | Ensures the cap or cover supports the full connector assembly. | Shop HD Series |
FAQs: HDC Series Connectors
What are HDC Series connectors?
HDC is commonly searched as a connector series, but many Deutsch HDC part numbers are protective caps or covers used with HD30-style circular connector assemblies. Choose HDC parts by shell size, connector side and exposure.
Is HDC the same as HD30?
HDC parts are closely related to HD30-style circular connector assemblies, but an HDC part is not always a complete connector. Many HDC part numbers are caps or covers that protect HD30 connector interfaces when they are not mated.
How do I choose the right HDC part?
Choose the right HDC part by confirming the shell size, connector side, mating connector, mounting style and whether the connector will be left exposed when unmated.
When should I use an HDC cap or cover?
Use an HDC cap or cover when a circular connector may be left unmated and exposed to dust, moisture, mud, workshop debris or field damage.
Can I order HDC parts by shell size only?
No. Shell size is important, but it is not the only requirement. You also need to confirm connector side, full part number and compatibility with the connector assembly.
Final Recommendation
Treat HDC parts as fit-specific connector protection components, not generic covers. Start by identifying the existing HD30-style connector, then confirm the shell size, plug or receptacle side and exposure level before ordering.
If the connector will sit unmated on heavy equipment, agricultural machinery, construction equipment or industrial harnesses, the right HDC cap or cover can help protect the connector face between service intervals.
Browse HDC Series parts, HD30 Series connectors, HD Series connectors and industrial connectors to compare compatible options.
