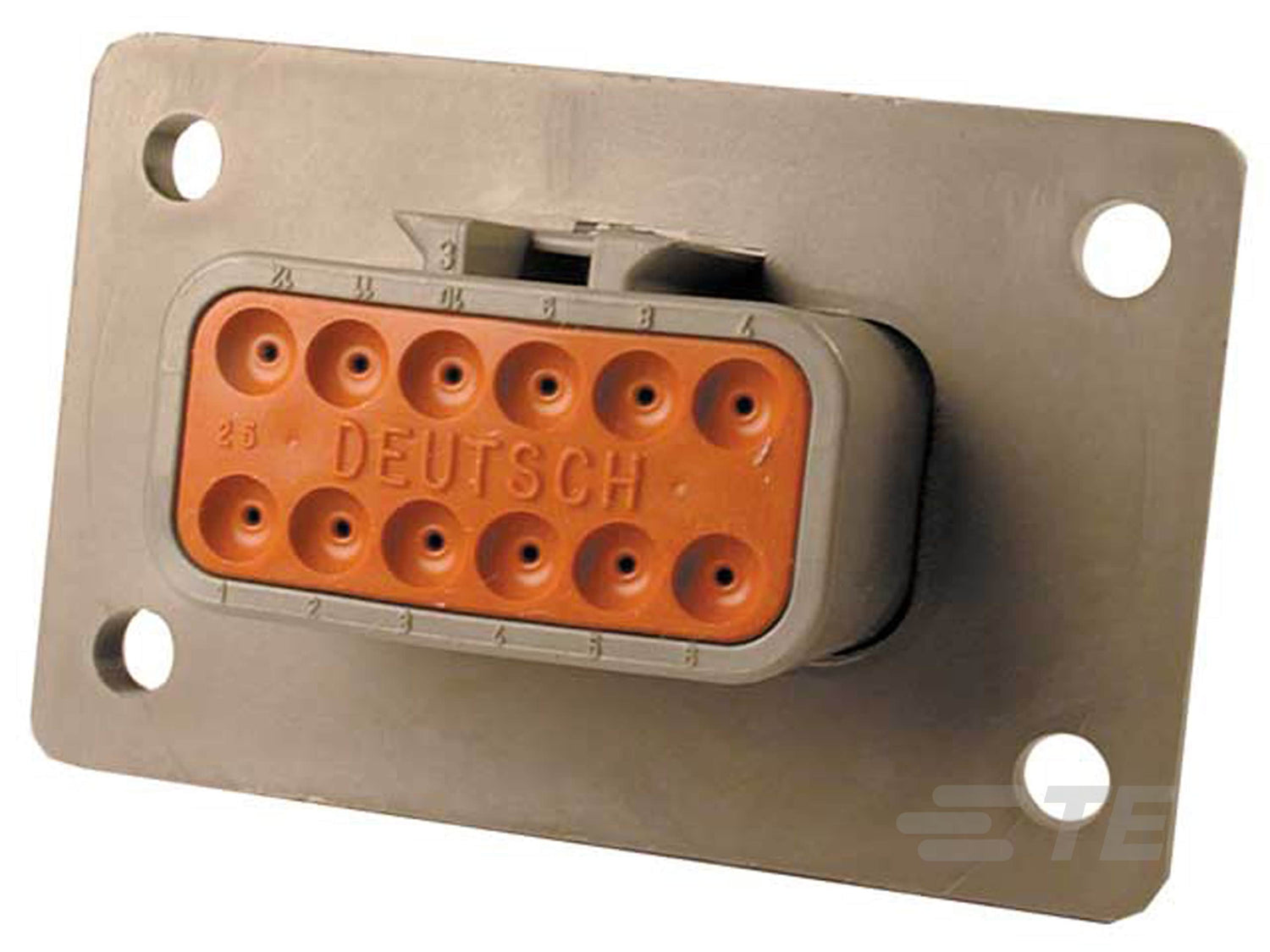

DTM04-12PA-L012 is a Deutsch DTM 12-way gray Key A panel-mount receptacle housing for Size 20 pin contacts. Its welded flange supports a fixed wire-to-panel interface, allowing a mating socket plug to be connected and disconnected at an equipment enclosure or harness mounting location.
The L012 mounting flange distinguishes this housing from a free-hanging 12-way DTM receptacle. It uses Key A coding and pin-contact cavities, with a rated operating voltage of 250 V AC/DC and a maximum contact rating of 7.5 A under applicable assembly conditions.
Choose DTM04-12PA-L012 for a fixed, panel-mounted Deutsch DTM connection where the mating plug needs to be accessible for maintenance. Plan the panel cut-out and mounting clearance using the exact TE manufacturer drawing before production.
Typical applications include panel-mounted interfaces on control boxes, vehicle electronics enclosures, heavy equipment and service-accessible harness junctions.
-
Series: DEUTSCH DTM
-
Connector: 12-way receptacle housing
-
Positions: 12
-
Contact type: Pin
-
Contact size: Size 20
-
Keying: A
-
Housing colour: Gray
-
Variant: Integral welded mounting flange
-
Mounting: Panel mount / welded flange
-
Contact current rating: Up to 7.5 A per contact
-
Operating voltage: 250 V AC/DC
-
Sealing: Sealable; IP68 / IP6K9K when correctly assembled
-
Operating temperature: -55 to +125°C (-67 to +257°F)
Dimensions
-
Connector height: 43.7 mm
-
Product length: 55.1 mm
-
Product width: 35.6 mm
-
Compatible wire insulation diameter: 1.35–3.05 mm (0.053–0.120 in)
Mating Parts
Compatible Parts
-
Secondary lock / wedgelock: WM-12P for the 12-way pin-contact side
-
Contacts: Deutsch Size 20 pin crimp contacts selected for the actual wire gauge and termination method
