Deutsch  |  SKU: DTM04-3P

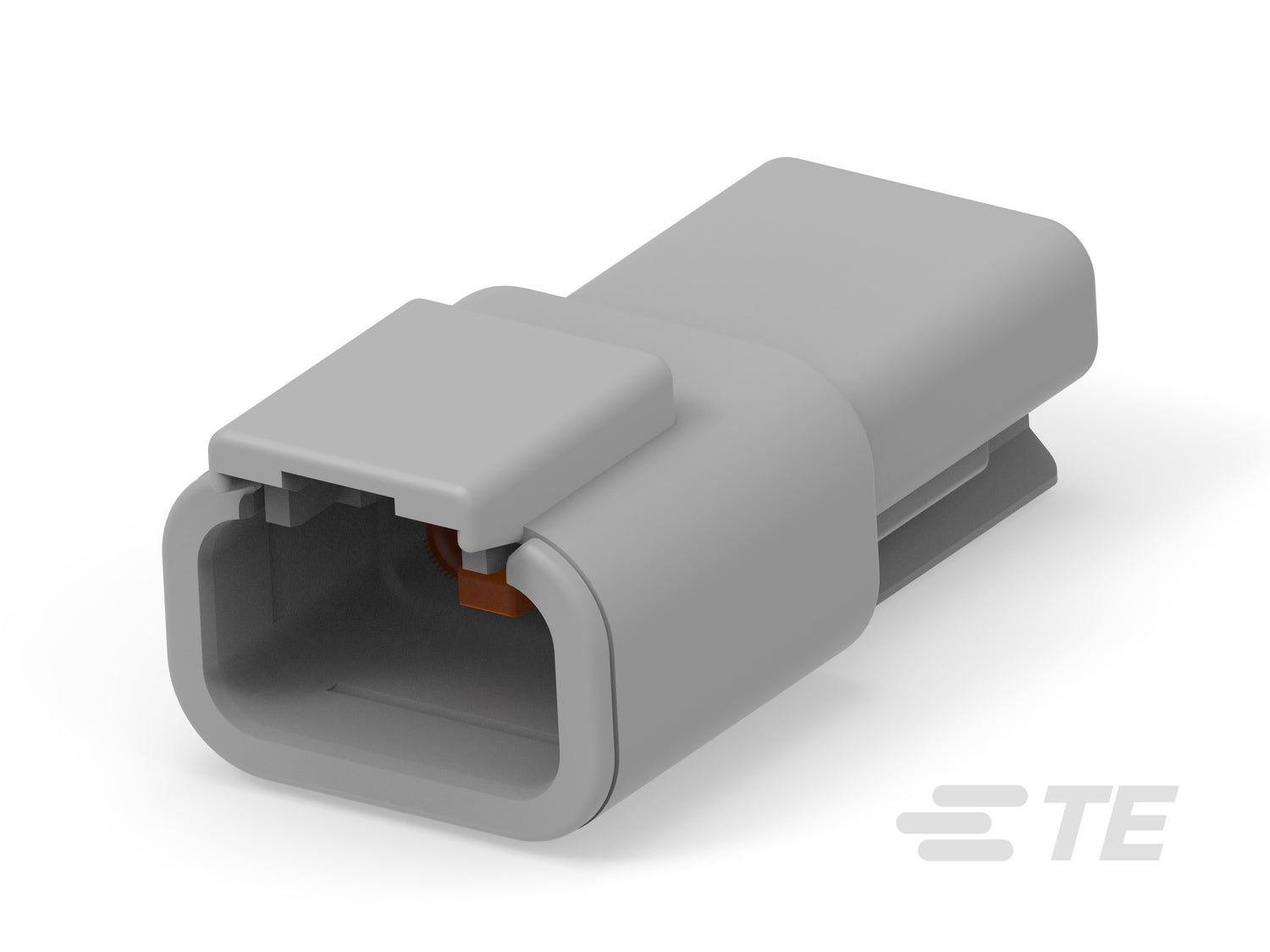

DTM04-3P Deutsch DTM 3-Way Receptacle Housing - Pin

DTM04-3P Deutsch DTM 3-way receptacle housing is the standard gray DTM04-3P connector for three Size 20 pin contacts.

The sealed 3-position housing supports up to 7.5 A per contact and 250 V AC/DC, with terminal position assurance and IP68/IP6K9K protection when assembled correctly. It provides the base DTM04-3P interface used by related suffix variants.

Choose DTM04-3P when you need the standard 3-way DTM pin receptacle; select a suffix variant only when the application specifically requires a changed cap, color or other defined modification.

Typical applications include sensor and actuator wiring, motorsport harnesses, agricultural equipment, commercial vehicles and compact industrial controls.

  • Series: DEUTSCH DTM
  • Connector: Receptacle housing
  • Positions: 3
  • Contact type: Pin
  • Contact size: Size 20
  • Color: Gray
  • Mounting: Free-hanging / in-line
  • Contact current rating: Up to 7.5 A
  • Operating voltage: 250 V AC/DC
  • IP rating: IP68 / IP6K9K
  • Operating temperature: -55 to 125°C (-67 to 257°F)
  • UL flammability rating: UL 94V-0
  • Compatible With Agency/Standards Products: SAE J2030

Dimensions

  • Connector Height: 41.1 mm (1.62 in)
  • Product Length: 20.7 mm (0.815 in)
  • Product Width: 16.2 mm (0.638 in)
  • Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)

Mating Parts

  • Mating connector: DTM06-3S 3-way plug housing for socket contacts

Compatible Parts

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$1.31/each
50+21% off
$1.04/each$1.31
100+24% off
$0.99/each$1.31
500+27% off
$0.95/each$1.31
1000+31% off
$0.90/each$1.31
5000+34% off
$0.86/each$1.31

4050 in stock — lead time on request for 5000+

Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Gray
Blank cavity position 0
Number of positions 3
Number of rows 1
Contact current rating max 7.5 A
Contact size Size 20
Contact type Pin
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.62 in
Product length .815 in
Product width .638 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .15 in
Housing material PA 66 GF15
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Male Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
