Deutsch  |  SKU: DTM06-3S

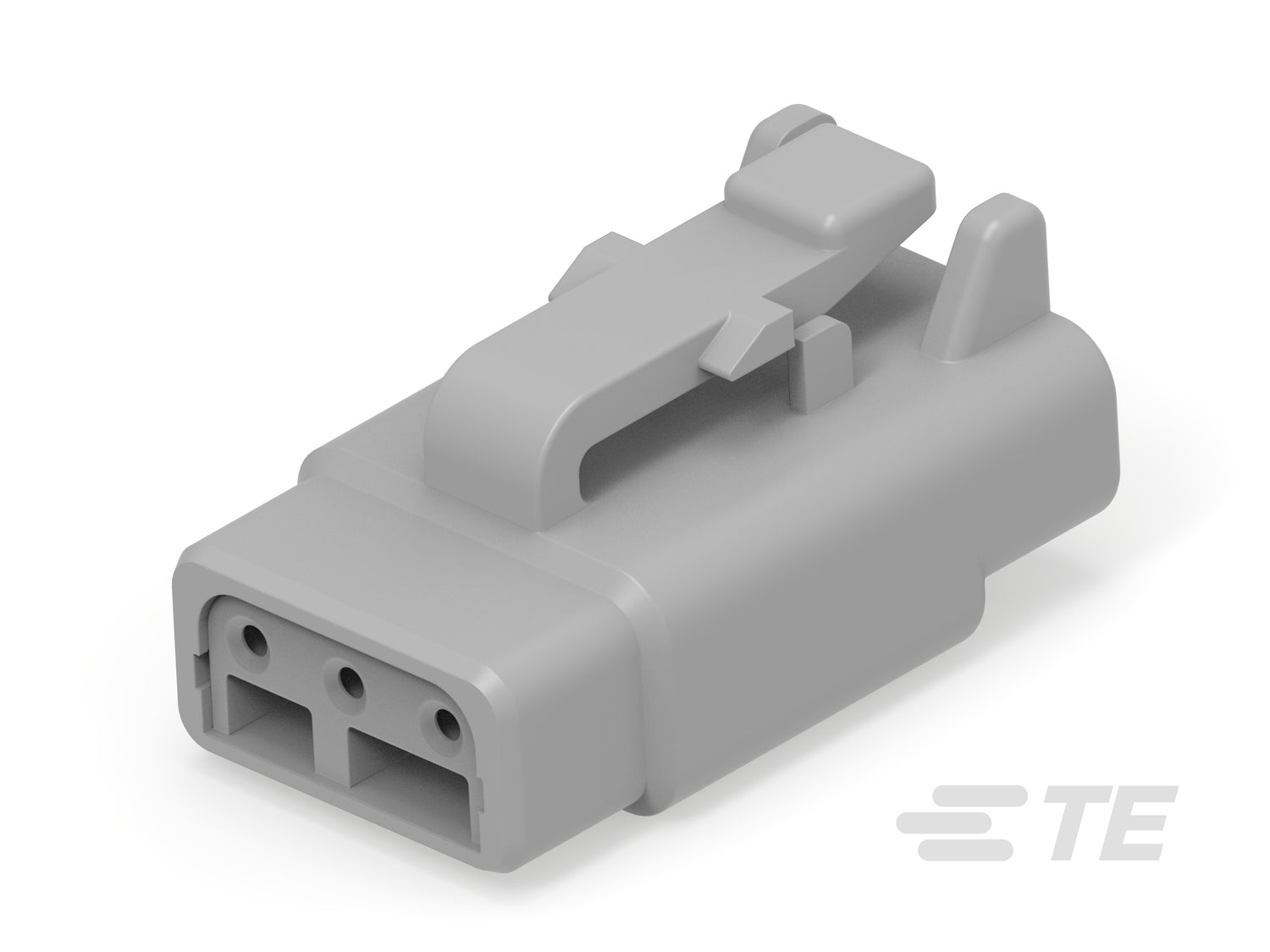

DTM06-3S Deutsch DTM 3-Way Plug Housing - Socket

DTM06-3S is the standard gray Deutsch DTM Series 3-way plug housing for Size 20 socket contacts, designed for sealed wire-to-wire electrical harness connections where a compact, serviceable multi-position interface is needed. This DEUTSCH DTM socket-contact plug uses Size 20 contacts and is intended to be paired with the corresponding DTM housing on the opposite contact side. The system is specified for up to 7.5 A per contact and 250 V AC/DC, with environmental protection dependent on correct terminals, cavity sealing and assembly. Choose this standard configuration when the special rear-cap, XCAP or colour variants are not required.

Common applications include sensor and control wiring, vehicle and motorsport harnesses, agricultural or construction machinery and industrial equipment where sealed low-current connections are required.

  • Series: DEUTSCH DTM
  • Housing configuration: 3-way plug (socket-contact side)
  • Housing colour: Gray
  • Contact size: Size 20
  • Contact type: Socket
  • Sealing: Sealable; sealing performance depends on correctly specified components and assembly
  • Operating temperature: -55°C to +125°C
  • Operating voltage: 250 V AC/DC (TE housing specification)
  • Contact current rating (maximum): 7.5 A per contact; depends on contacts, wire and operating conditions

Dimensions

  • Connector height: 27.6 mm
  • Product length: 16.3 mm
  • Product width: 14 mm
  • Compatible insulation diameter: 1.3–3.0 mm

Mating Parts

The standard 3-way DTM receptacle family is DTM04-3P (pin-contact side). Confirm the precise mating housing version, keying, seal configuration and any cap or boot requirements for this DTM06-3S variant before purchase.

Compatible Parts

Select DEUTSCH DTM Size 20 socket contacts to suit the actual wire gauge and termination process, together with the appropriate secondary lock/wedgelock for the 3-way plug configuration. Check supplied assembly contents and part-specific TE accessory data rather than assuming every accessory is included or fits every modified housing.

Browse DEUTSCH DTM Series connector housings for related configurations.

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$1.28/each
50+5% off
$1.21/each$1.28
100+9% off
$1.16/each$1.28
500+14% off
$1.10/each$1.28
1000+18% off
$1.05/each$1.28
5000+22% off
$1.00/each$1.28
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Gray
Blank cavity position 0
Number of positions 3
Number of rows 1
Contact current rating max 7.5 A
Contact size Size 20
Contact type Socket
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.1 in
Product length .642 in
Product width .551 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .165 in
Housing material PA GF
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance No
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Female Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
