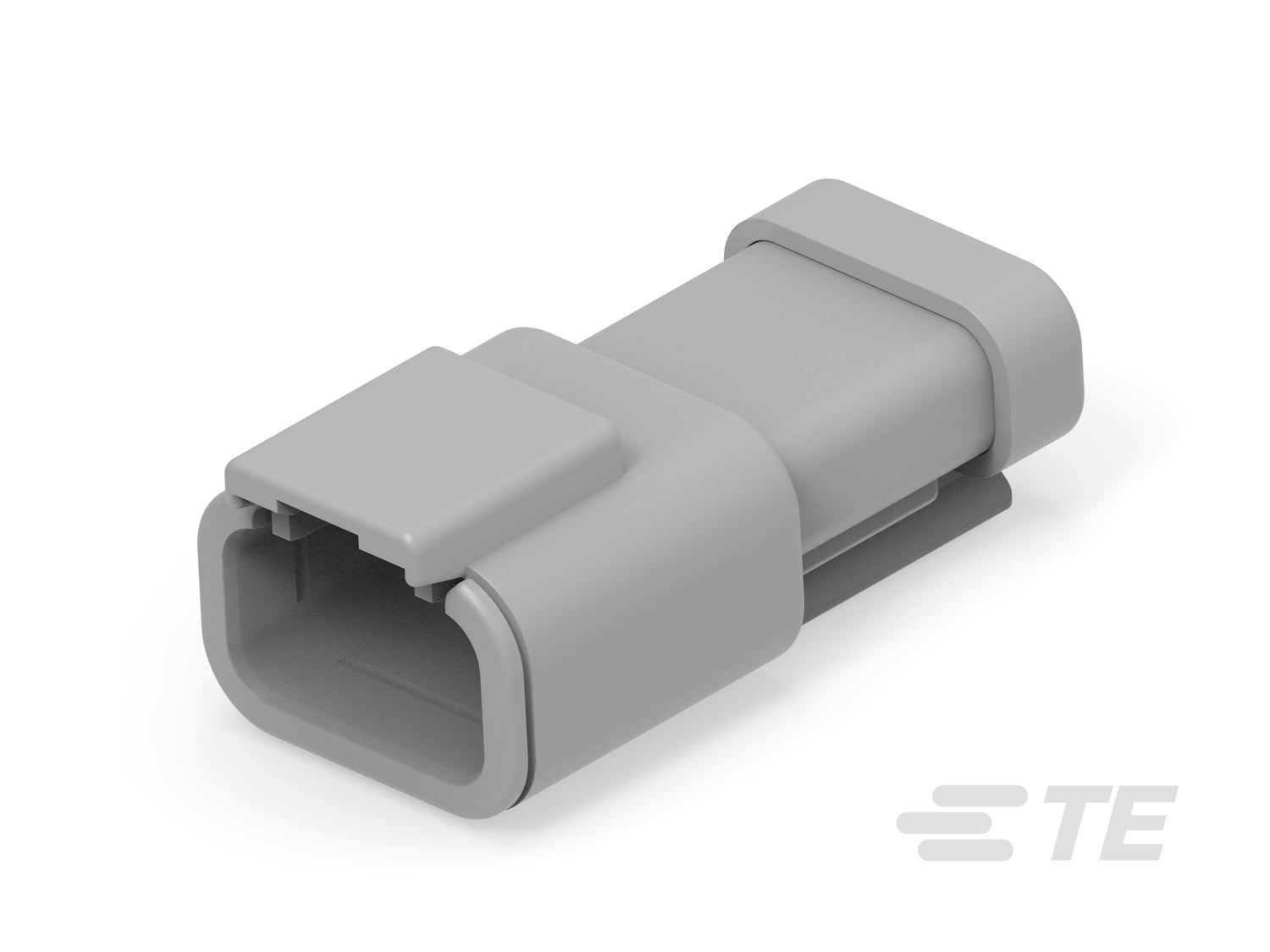

DTM04-3P-E003 Deutsch DTM 3-way receptacle housing is the end-cap variant of the DTM04-3P, using three Size 20 pin contacts.
It keeps the sealed 3-way DTM04-3P interface while adding the E003 cap configuration, with up to 7.5 A per contact, 250 V AC/DC operation and IP68/IP6K9K protection when assembled correctly.
Choose DTM04-3P-E003 when the application needs the standard DTM04-3P 3-way pin receptacle interface with the E003 end-cap configuration rather than the base housing.
Typical applications include compact vehicle, motorsport, agricultural and industrial harnesses where a sealed 3-way DTM connection with the E003 capped rear configuration is specified.
-
Series: DEUTSCH DTM
-
Connector: Receptacle housing
-
Positions: 3
-
Contact type: Pin
-
Contact size: Size 20
-
Color: Gray
-
Modification: E003 end cap
-
Mounting: Free-hanging / in-line
-
Contact current rating: Up to 7.5 A
-
Operating voltage: 250 V AC/DC
-
IP rating: IP68 / IP6K9K
-
Operating temperature: -55 to 125°C (-67 to 257°F)
-
UL flammability rating: UL 94V-0
-
Compatible With Agency/Standards Products: SAE J2030
Dimensions
-
Connector Height: 42.7 mm (1.68 in)
-
Product Length: 20.7 mm (0.815 in)
-
Product Width: 16.2 mm (0.638 in)
-
Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)
Mating Parts
-
Mating connector: DTM06-3S 3-way plug housing for socket contacts
