Deutsch  |  SKU: DTM04-4P

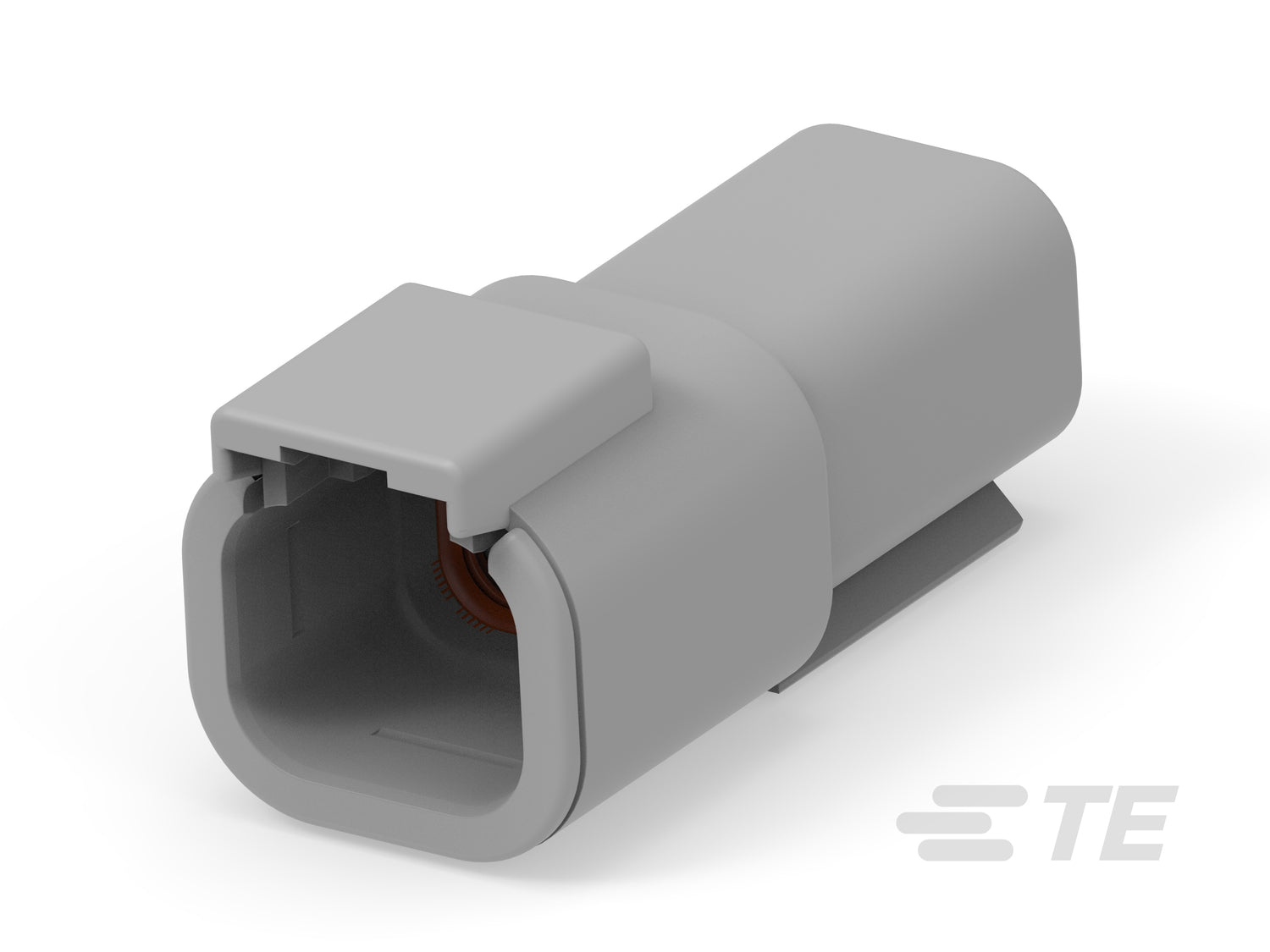

DTM04-4P Deutsch DTM 4-Way Receptacle Housing - Pin

DTM04-4P Deutsch DTM 4-way receptacle housing is a gray sealed wire-to-wire housing for four Size 20 pin contacts.

The standard DTM04-4P configuration supports up to 7.5 A per contact and 250 V AC/DC, with IP68/IP6K9K protection when assembled correctly. It uses an in-line free-hanging format and terminal position assurance for secure signal and lower-current harness connections.

Choose DTM04-4P when you need the standard 4-way DTM pin receptacle; suffix variants such as DTM04-4P-E004 use the same base 4-position interface but change the housing configuration.

Typical applications include motorsport and automotive harnesses, agricultural machinery, sensors, industrial equipment and off-highway vehicle wiring.

  • Series: DEUTSCH DTM
  • Connector: Receptacle housing
  • Positions: 4
  • Contact type: Pin
  • Contact size: Size 20
  • Color: Gray
  • Mounting: Free-hanging / in-line
  • Contact current rating: Up to 7.5 A
  • Operating voltage: 250 V AC/DC
  • IP rating: IP68 / IP6K9K
  • Operating temperature: -55 to 125°C (-67 to 257°F)
  • UL flammability rating: UL 94V-0
  • Compatible With Agency/Standards Products: SAE J2030

Dimensions

  • Connector Height: 43.7 mm (1.72 in)
  • Product Length: 19.2 mm (0.756 in)
  • Product Width: 19.6 mm (0.772 in)
  • Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)
  • Row-to-Row Spacing: 4.19 mm (0.165 in)

Mating Parts

  • Mating connector: DTM06-4S 4-way plug housing for socket contacts

Compatible Parts

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$2.16/each
50+5% off
$2.06/each$2.16
100+9% off
$1.96/each$2.16
500+13% off
$1.87/each$2.16
1000+18% off
$1.78/each$2.16
5000+22% off
$1.69/each$2.16
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Gray
Blank cavity position 0
Number of positions 4
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Pin
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.72 in
Product length .756 in
Product width .772 in
Row to row spacing .165 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .15 in
Housing material PA 66 GF15
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Male Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
