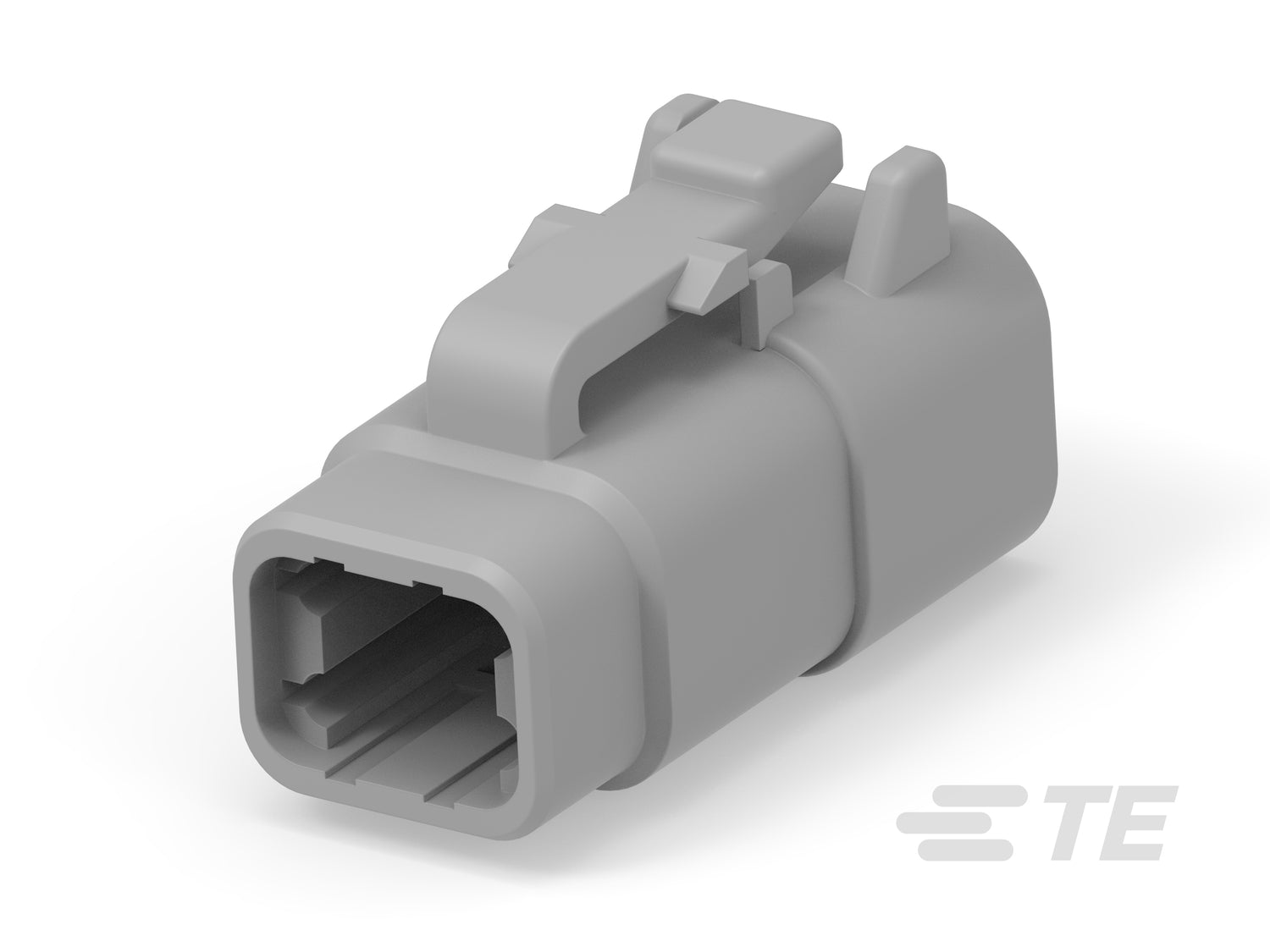

DTM06-4S is the standard gray Deutsch DTM Series 4-way plug housing for Size 20 socket contacts, designed for sealed wire-to-wire electrical harness connections where a compact, serviceable multi-position interface is needed. This DEUTSCH DTM socket-contact plug uses Size 20 contacts and is intended to be paired with the corresponding DTM housing on the opposite contact side. The system is specified for up to 7.5 A per contact and 250 V AC/DC, with environmental protection dependent on correct terminals, cavity sealing and assembly. Choose this standard configuration when the special rear-cap, XCAP or colour variants are not required.
Common applications include sensor and control wiring, vehicle and motorsport harnesses, agricultural or construction machinery and industrial equipment where sealed low-current connections are required.
-
Series: DEUTSCH DTM
-
Housing: 4-way plug, socket-contact side
-
Contact size: Size 20
-
Housing colour: Gray
-
Sealing: Sealable housing; correct contacts and assembly are required
-
Operating temperature: -55°C to +125°C
-
Contact current rating (maximum): 7.5 A per contact, subject to wire and application limitations
-
Voltage rating: 250 V AC/DC
Dimensions
-
Connector height: 30.1 mm
-
Product length: 15.2 mm
-
Product width: 17.6 mm
-
Compatible insulation diameter: 1.3–3.0 mm
Mating Parts
For a standard DTM 4-way assembly, the corresponding pin receptacle housing is DTM04-4P. Confirm the mating configuration, seals and any modification-specific requirements before ordering.
Compatible Parts
Uses DEUTSCH DTM Size 20 socket contacts selected for the actual wire size and termination method. The corresponding standard plug wedgelock is WM-4S; confirm suitability for this exact modification and whether a wedgelock is included in the supplied assembly.
