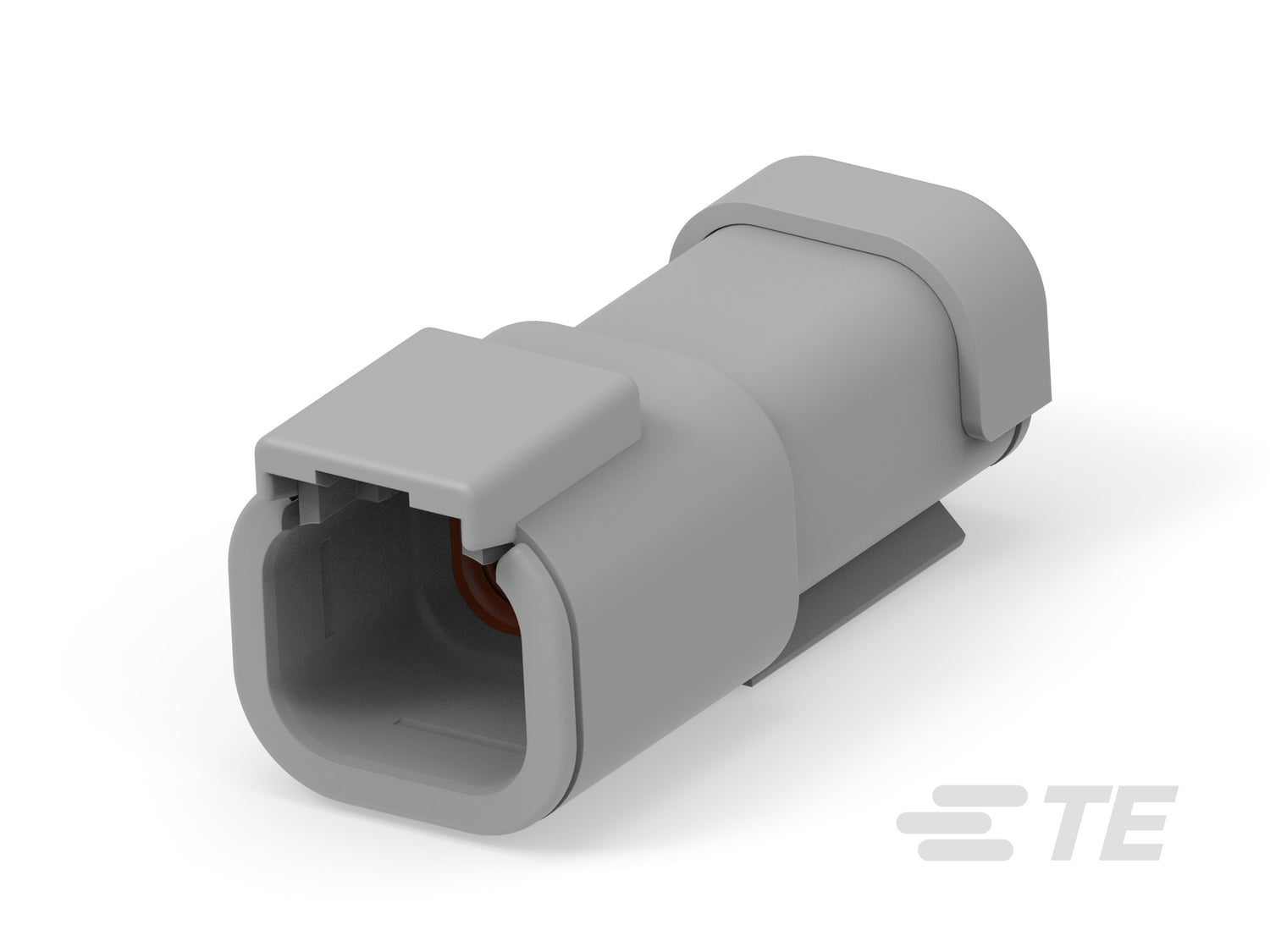

DTM04-4P-E003 is a Deutsch DTM Series 4-way gray receptacle housing for Size 20 pin contacts for compact, sealed wire-to-wire harness assemblies. Its end-cap configuration differentiates this version from the standard 4-way DTM pin-contact receptacle, so the rear housing arrangement should be checked against the required harness build and cable exit. The DEUTSCH DTM connector system accepts Size 20 contacts and is specified for up to 7.5 A per contact and 250 V AC/DC under the appropriate assembly conditions. This housing is selected where the specific capped construction is required rather than simply replacing a standard part by position count.
Typical applications include vehicle wiring looms, sensor assemblies and equipment harnesses that specifically call for this end-cap housing configuration.
-
Series: DEUTSCH DTM
-
Housing: 4-way receptacle, pin-contact side
-
Contact size: Size 20
-
Housing colour: Gray
-
Sealing: Sealable housing; correct contacts and assembly are required
-
Operating temperature: -55°C to +125°C
-
Contact current rating (maximum): 7.5 A per contact, subject to wire and application limitations
-
Voltage rating: 250 V AC/DC
Mating Parts
For a standard DTM 4-way assembly, the corresponding socket plug housing is DTM06-4S. Confirm the mating configuration, seals and any modification-specific requirements before ordering.
Compatible Parts
Uses DEUTSCH DTM Size 20 pin contacts selected for the actual wire size and termination method. The corresponding standard receptacle wedgelock is WM-4P; confirm suitability for this exact modification and whether a wedgelock is included in the supplied assembly.
