Deutsch  |  SKU: DTM04-4P-E004

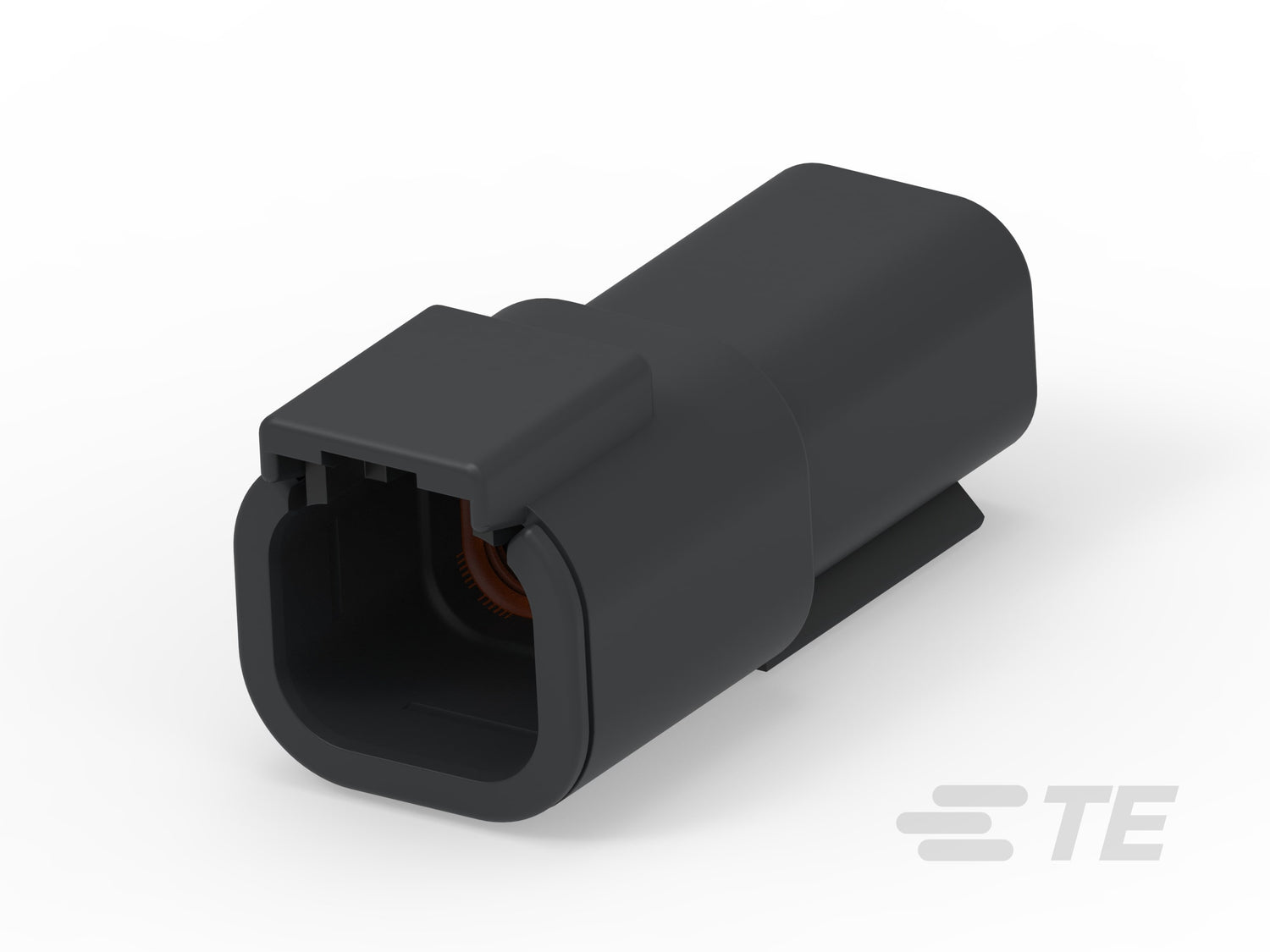

DTM04-4P-E004 Deutsch DTM 4-Way Receptacle Housing - Pin, Black

DTM04-4P-E004 Deutsch DTM 4-way receptacle housing is the black E004 variant of the DTM04-4P, designed for four Size 20 pin contacts.

It retains the sealed 4-way DTM04-4P interface, with up to 7.5 A per contact, 250 V AC/DC operation and IP68/IP6K9K protection when assembled correctly. The black housing distinguishes this exact E004 version from the standard gray DTM04-4P.

Choose DTM04-4P-E004 when the required connector is a black 4-way DTM pin receptacle using the DTM04-4P interface, rather than the standard gray housing.

Typical applications include automotive and motorsport harnesses, sensors, agricultural machinery and industrial equipment where compact sealed signal connections are required.

  • Series: DEUTSCH DTM
  • Connector: Receptacle housing
  • Positions: 4
  • Contact type: Pin
  • Contact size: Size 20
  • Color: Black
  • Variant: E004
  • Mounting: Free-hanging / in-line
  • Contact current rating: Up to 7.5 A
  • Operating voltage: 250 V AC/DC
  • IP rating: IP68 / IP6K9K
  • Operating temperature: -55 to 125°C (-67 to 257°F)
  • UL flammability rating: UL 94V-0
  • Compatible With Agency/Standards Products: SAE J2030

Dimensions

  • Connector Height: 43.7 mm (1.72 in)
  • Product Length: 43.69 mm (1.72 in)
  • Product Width: 19.2 mm (0.756 in)
  • Compatible Insulation Diameter: 1.35 to 3.05 mm (0.053 to 0.120 in)
  • Row-to-Row Spacing: 4.19 mm (0.165 in)

Mating Parts

  • Mating connector: DTM06-4S 4-way plug housing for socket contacts

Compatible Parts

View all Deutsch DTM Series Connectors

Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.


Quantity price breaks

1+
$2.38/each
50+5% off
$2.27/each$2.38
100+9% off
$2.16/each$2.38
Part of DEUTSCH DT series
RoHS Compliant
ELV Compliant
Statement of Compliance

Technical Documentation

Product Specifications

Cable exit angle 180 °
Primary product color Black
Blank cavity position 0
Number of positions 4
Number of rows 2
Contact current rating max 7.5 A
Contact size Size 20
Contact type Pin
Mating pin diameter .04 in
Compatible insulation diameter .053 – .12 in
Connector height 1.72 in
Product length 1.72 in
Product width .756 in
Row to row spacing .165 in
Nominal voltage architecture 48 V
Operating voltage 250 VDC
Centerline pitch .15 in
Housing material PA GF
Compatible with agency standar SAE J2030
Ip rating IP6K9K
Ul flammability rating UL 94V-0
Connector mounting type Cable Mount (Free-Hanging)
Mating alignment With
Mating alignment type Polarization
Strain relief Without
Terminal position assurance Yes
Circuit application Power
Packaging method Package
Packaging quantity 1
Connector contact terminates t Wire & Cable
Connector housing type Housing for Male Terminals
Connector shape Rectangular
Connector system Wire-to-Wire
Mixed hybrid connector No
Primary locking feature Integrated in Housing
Sealable Yes
Operating temperature max 257 °F
Operating temperature range -67 – 257 °F
Connector position assurance c No
Serviceable Yes
