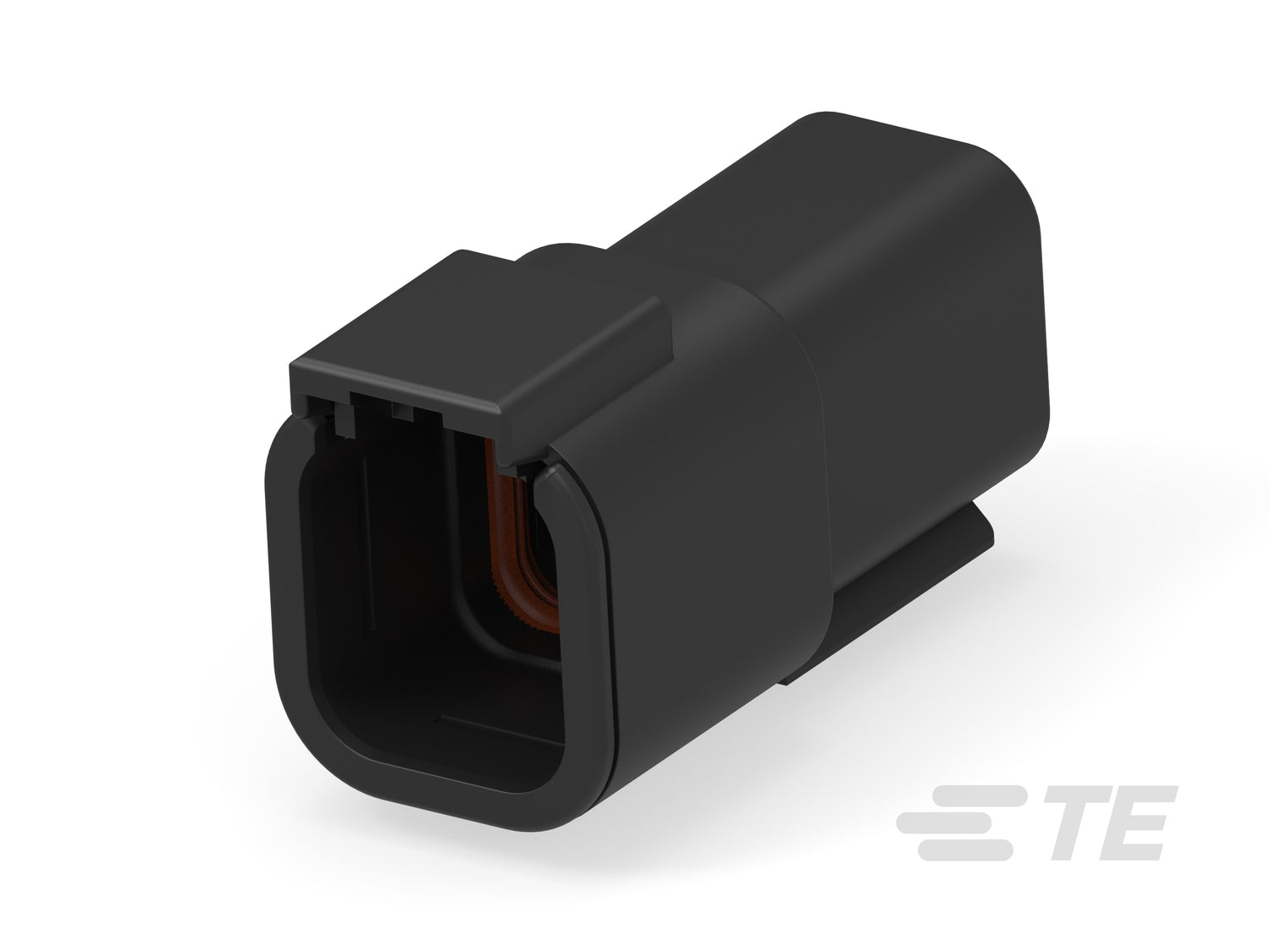

DTM04-6P-E004 is a Deutsch DTM Series 6-way black receptacle housing for Size 20 pin contacts for sealed wire-to-wire vehicle and equipment harnesses. The E004 suffix identifies the black housing version, distinguishing it from the standard gray 6-way DTM pin-contact receptacle without changing its basic function as a Size 20 contact housing. DEUTSCH DTM connectors are suited to compact, lower-current circuits requiring positive connector engagement and environmental sealing when correctly assembled. The connector system supports up to 7.5 A per contact and 250 V AC/DC, subject to the contacts, cable and assembly conditions.
Typical applications include multi-circuit sensor and control harnesses, industrial equipment, off-highway machinery and automotive electrical systems needing several sealed signal connections in one housing.
-
Series: DEUTSCH DTM
-
Housing configuration: 6-way receptacle (pin-contact side)
-
Housing colour: Black
-
Contact size: Size 20
-
Contact type: Pin
-
Sealing: Sealable; sealing performance depends on correctly specified components and assembly
-
Operating temperature: -55°C to +125°C
-
Operating voltage: 250 V AC/DC (TE housing specification)
-
Contact current rating (maximum): 7.5 A per contact; depends on contacts, wire and operating conditions
-
Variant feature: black housing
Mating Parts
The standard 6-way DTM plug family is DTM06-6S (socket-contact side). Confirm the precise mating housing version, keying, seal configuration and any cap or boot requirements for this DTM04-6P-E004 variant before purchase.
Compatible Parts
Select DEUTSCH DTM Size 20 pin contacts to suit the actual wire gauge and termination process, together with the appropriate secondary lock/wedgelock for the 6-way receptacle configuration. Check supplied assembly contents and part-specific TE accessory data rather than assuming every accessory is included or fits every modified housing.
Browse DEUTSCH DTM Series connector housings for related configurations.
Need help matching contacts, wedgelocks, mating housings or compatible tools? Speak to our team and we'll help you select the correct Deutsch DTM parts.
